EnGenius

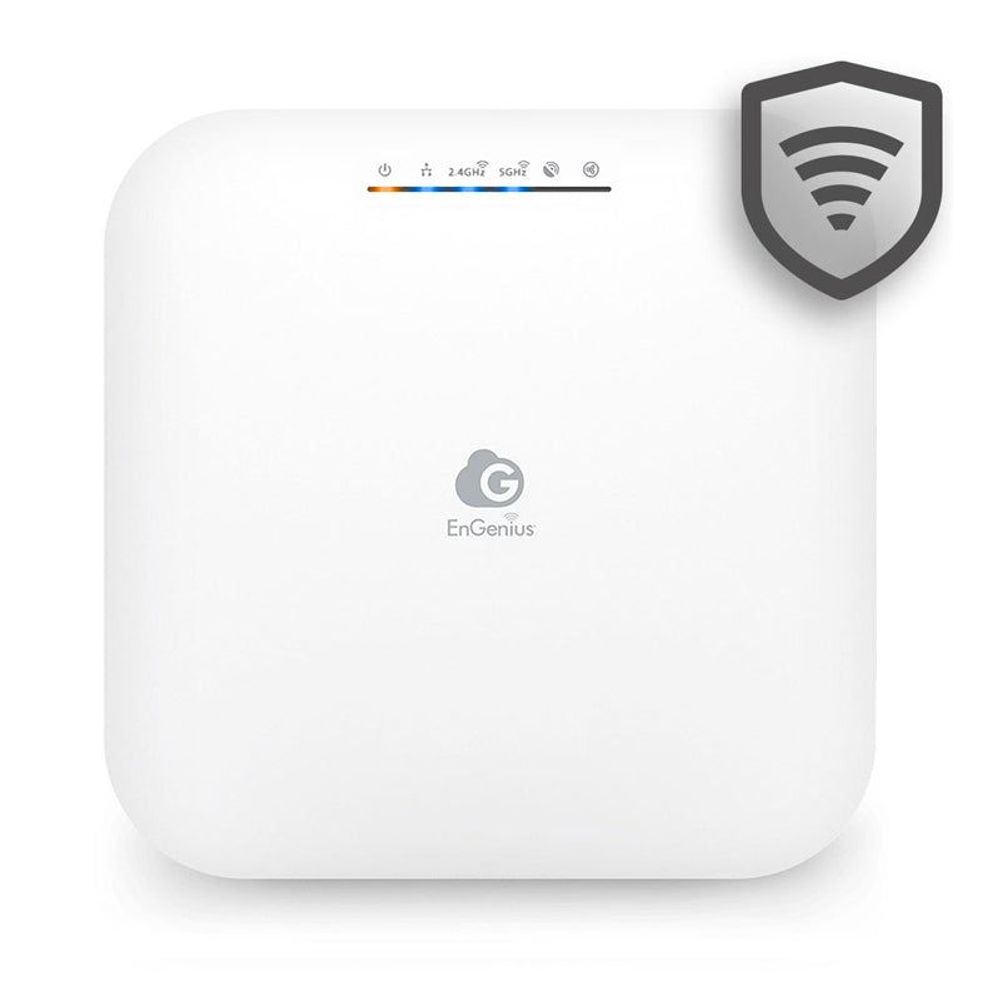

ECW220S - EnGenius ECW220S Cloud Managed Wi-Fi 6 2x2 Indoor Access Point with Advanced Security

ECW220S - EnGenius ECW220S Cloud Managed Wi-Fi 6 2x2 Indoor Access Point with Advanced Security

ECW220S

$295.00 NZD
$295.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
EnGenius Networks ECW220S Wi-Fi 6 (802.11ax) 2x2 Cloud Managed Indoor Wireless Access Point with advanced security which is engineered with WIPS radio and Zero DFS radio detection interfaces for listening spectrum and channel utilization by the WIPS radio and detect DFS signal via Zero DFS radio.



Features
  • Dual concurrent 802.11ax Wi-Fi 6 architecture & backward-compatible
  • Supercharged speeds up to 1,200 Mbps (5 GHz) & up to 600 Mbps (2.4 GHz).
  • 1 GbE realizes greater throughput and supports 802.3af & 48V PoE input for flexible installation over 100 meters (328 feet).
  • Wireless security detection and protection by WIDS/WIPS radio.
  • WPA3 & WPA2-AES authentication support.
  • Quick-scan device register & configuration and remote monitoring & troubleshooting.
  • Mesh wireless Support simplifies setup, optimizes signals, and enables self-heals.
Details
Manufacturer's Code ECW220S
Operating Frequency Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes AP, AP Mesh, Mesh
Scanning Radio Yes
Bluetooth Low Energy (BLE) Yes
Frequency Radio 2.4 GHz: 2400 MHz~2482 MHz, 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power Up to 22 dBm on 2.4 GHz, Up to 22 dBm on 5 GHz
Standards IEEE 802.11ax on 2.4 GHz, IEEE 802.11ax on 5 GHz, Backward compatible with 802.11a/b/g/n/ac
Antenna 2 x 2.4 GHz: 4 dBi, 2 x 5 GHz: 5 dBi Integrated Omni-Directional Antenna
Tx Beamforming Yes
Radio Chains/Spatial Stream 2 × 2:2
SU-MIMO Two (2) spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with HE40 bandwidth to a 2×2 wireless client device under the 2.4 GHz radio. Two (2) spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5 GHz radio
MU-MIMO Two (2) spatial streams Multiple (MU)-MIMO up to 1,200 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 5 GHz simultaneously
Supported Data Rates (Mbps) 802.11ax: 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2), 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
Physical Interface 1 x 10/100/1000 Ethernet Port (PoE), 1 x DC Jack, 1 x Reset Button
LED Indicators 1 x Power, 1 x LAN, 1 x 2.4 GHz, 1 x 5 GHz
Power Source Power-over-Ethernet: 802.3af/at Input, IEEE 802.11e Compliant Source, 12VDC /1.5A Power Adapter (optional)
Maximum Power Consumption 12.8W
Multiple BSSID support 8 SSIDs on both 2.4 GHz and 5 GHz
VLAN Tagging Supports 802.1q SSID-to-VLAN Tagging, Cross-Band VLAN Pass-Through, Management VLAN
Spanning Tree Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service) Complaint With IEEE 802.11e Standard, WMM
SNMP v1, v2c, v3
MIB I/II, Private MIB
Fast Roaming 802.11r/k
Wireless Security WPA2-PSK, WPA2-Enterprise, WPA3-PSK, WPA3-Enterprise, Hide SSID in Beacons, MAC Address Filtering, Up to 32 MACs per SSID, Https, Wireless STA (Client) Connected List, SSH Tunnel, Client Isolation
Details
Power Supply Not Included
Mounting Wall mount junction plates and screw kits included





Specifications





Details
Manufacturer's Code ECW220S
Operating Frequency Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes AP, AP Mesh, Mesh
Scanning Radio Yes
Bluetooth Low Energy (BLE) Yes
Frequency Radio 2.4 GHz: 2400 MHz~2482 MHz, 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power Up to 22 dBm on 2.4 GHz, Up to 22 dBm on 5 GHz
Standards IEEE 802.11ax on 2.4 GHz, IEEE 802.11ax on 5 GHz, Backward compatible with 802.11a/b/g/n/ac
Antenna 2 x 2.4 GHz: 4 dBi, 2 x 5 GHz: 5 dBi Integrated Omni-Directional Antenna
Tx Beamforming Yes
Radio Chains/Spatial Stream 2 × 2:2
SU-MIMO Two (2) spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with HE40 bandwidth to a 2×2 wireless client device under the 2.4 GHz radio. Two (2) spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5 GHz radio
MU-MIMO Two (2) spatial streams Multiple (MU)-MIMO up to 1,200 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 5 GHz simultaneously
Supported Data Rates (Mbps) 802.11ax: 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2), 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
Physical Interface 1 x 10/100/1000 Ethernet Port (PoE), 1 x DC Jack, 1 x Reset Button
LED Indicators 1 x Power, 1 x LAN, 1 x 2.4 GHz, 1 x 5 GHz
Power Source Power-over-Ethernet: 802.3af/at Input, IEEE 802.11e Compliant Source, 12VDC /1.5A Power Adapter (optional)
Maximum Power Consumption 12.8W
Multiple BSSID support 8 SSIDs on both 2.4 GHz and 5 GHz
VLAN Tagging Supports 802.1q SSID-to-VLAN Tagging, Cross-Band VLAN Pass-Through, Management VLAN
Spanning Tree Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service) Complaint With IEEE 802.11e Standard, WMM
SNMP v1, v2c, v3
MIB I/II, Private MIB
Fast Roaming 802.11r/k
Wireless Security WPA2-PSK, WPA2-Enterprise, WPA3-PSK, WPA3-Enterprise, Hide SSID in Beacons, MAC Address Filtering, Up to 32 MACs per SSID, Https, Wireless STA (Client) Connected List, SSH Tunnel, Client Isolation
