EnGenius

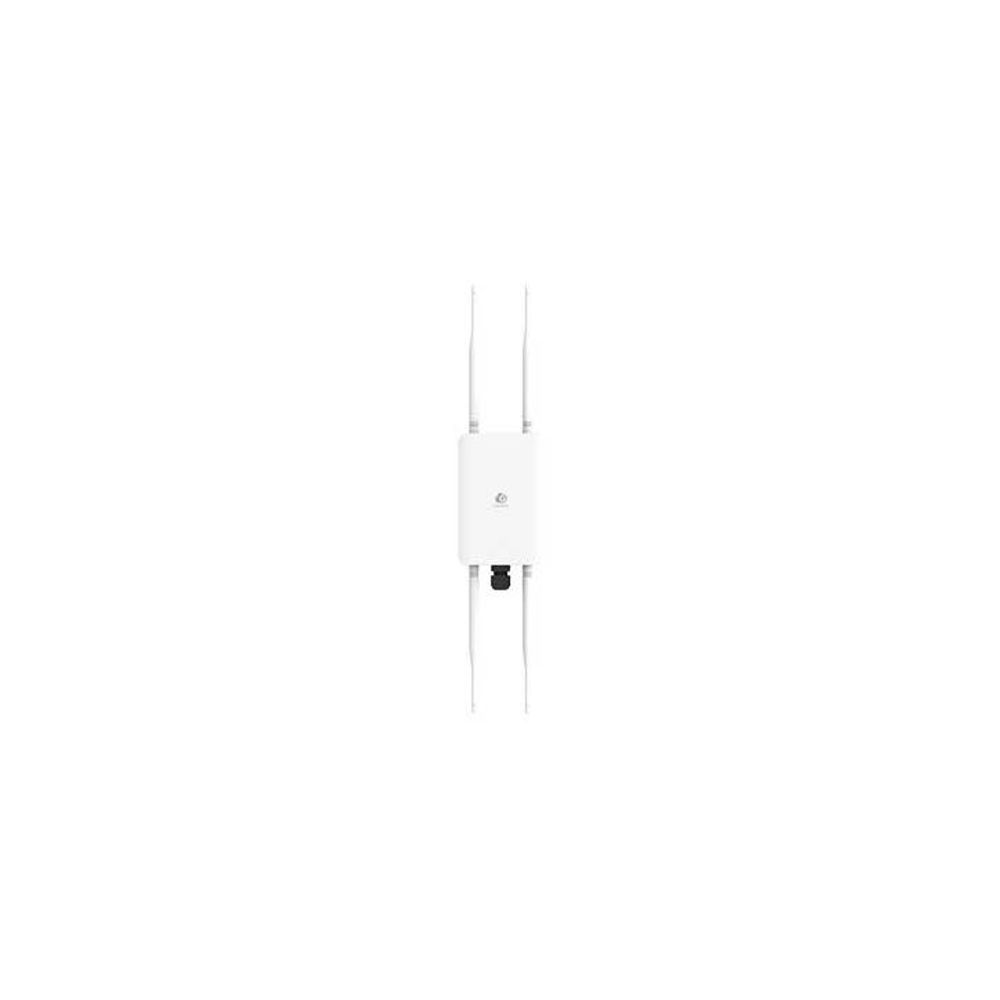

ECW160 - EnGenius ECW160 Cloud-Managed 802.11ac Wave 2 Long Range WiFi Outdoor Long Range Access Point

ECW160 - EnGenius ECW160 Cloud-Managed 802.11ac Wave 2 Long Range WiFi Outdoor Long Range Access Point

ECW160

$95.00 NZD
$95.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
EnGenius ECW160 Cloud-Managed 802.11ac Wave 2 WiFi Long Range Outdoor Long Range Access Point. Extend your high-speed wireless coverage to the outdoors with the high-powered long range ECW160, a Wave 2 cloud managed outdoor wireless access point. Reaching speeds to 867 Mbps on 5 GHz and to 400 Mbps on the 2.4 GHz frequency band, this feature-rich AP leverages advanced Wi-Fi and Beamforming antenna technology, maximizing performance and reliability while greatly increasing outdoor network user capacities. The AP is designed to operate in harsh environmental conditions and includes an IP67-rated waterproof and dustproof casing to protect it from the elements.

EnGenius Cloud is built on top of the most advanced cloud computing technology. Scalable and AI-ready, the robust and dynamic cloud computing infrastructure helps you work smart on your network with important analytics and visualization .

Deploy and Monitor Your Networks with EnGenius Cloud App: Easy device deployment, visualized monitoring, and alerts for abnormal network activity available within an intuitive mobile app.

Features
  • 11ac Wave 2 Wireless Speeds to 867Mbps on 5GHz; to 400Mbps on 2.4GHz
  • IP67 Outdoor Rated Weatherproof & Dustproof Housing Withstands Harsh Environments
  • Dual-Radio MU-MIMO Improves Performance & Expands User Capacities
  • Beamforming Optimizes Antenna Signal, Reception & Reliability for Clients
  • Four (4) Detachable 5dbi High-Gain, 360° SMA-Type Antennas
  • Flexible secure authentication options for guest Wi-Fi access
  • Access Points Locations and Wi-Fi Strength with Floor Plan
  • Configure with the free EnGenius Cloud
Details
Manufacturer's Code ECW160
Frequency Range 2.4GHz; 5GHz
Output Power 23dBm @ 2.4GHz, 23dBm @ 5GHz
Data Ports (1) 10/100/1000Mbps Ethernet Ports
Wireless standards 802.11a/b/g/n/ac
Max Data Rate 400Mbps @ 2.4GHz, 867Mpbs @ 5GHz
Environment IP67
PoE In Yes, 802.3af/at
Number of chains 2 x 2:2
SU-MIMO Two(2) spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate with VHT40 bandwidth to a 2×2 wireless device under the 2.4 GHz radio. Two(2) spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5 GHz radio
MU-MIMO Two (2) Spatial Stream MU-MIMO up to 867 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO capable wireless devices under 5 GHz simultaneously
Supported Data Rates (Mbps) 2.4 GHz: Max 400 (MCS0 to MCS11, NSS = 1 to 2), 5 GHz: Max 867 (MCS0 to MCS11, NSS = 1 to 2)
Multiple BSSID 8 SSIDs on both 2.4 GHz and 5 GHz bands
VLAN Tagging Supports 802.1q SSID-to-VLAN Tagging, Cross-Band VLAN Pass-Through, Management VLAN
Spanning Tree Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service) Complaint with IEEE 802.11e Standard, Band Steering
SNMP v1, v2c, v3
MIB I/II, Private MIB
Fast Roaming 802.11r/k
Wireless Security WPA2-PSK, WPA2-Enterprise, Hide SSID in Beacons, MAC Address Filtering, Up to 32 MACs per SSID, Wireless STA (Client) Connected List, Https, SSH, Client Isolation
Details
Warranty Standard 24 Month RTB
Mounting 2x Pole Mount Brackets and Screw Kit
Antenna 2x 2.4Ghz 5dBi SMA Antennas & 2x 5Ghz 5dBi SMA Antennas





Specifications





Details
Manufacturer's Code ECW160
Frequency Range 2.4GHz; 5GHz
Output Power 23dBm @ 2.4GHz, 23dBm @ 5GHz
Data Ports (1) 10/100/1000Mbps Ethernet Ports
Wireless standards 802.11a/b/g/n/ac
Max Data Rate 400Mbps @ 2.4GHz, 867Mpbs @ 5GHz
Environment IP67
PoE In Yes, 802.3af/at
Number of chains 2 x 2:2
SU-MIMO Two(2) spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate with VHT40 bandwidth to a 2×2 wireless device under the 2.4 GHz radio. Two(2) spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5 GHz radio
MU-MIMO Two (2) Spatial Stream MU-MIMO up to 867 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO capable wireless devices under 5 GHz simultaneously
Supported Data Rates (Mbps) 2.4 GHz: Max 400 (MCS0 to MCS11, NSS = 1 to 2), 5 GHz: Max 867 (MCS0 to MCS11, NSS = 1 to 2)
Multiple BSSID 8 SSIDs on both 2.4 GHz and 5 GHz bands
VLAN Tagging Supports 802.1q SSID-to-VLAN Tagging, Cross-Band VLAN Pass-Through, Management VLAN
Spanning Tree Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service) Complaint with IEEE 802.11e Standard, Band Steering
SNMP v1, v2c, v3
MIB I/II, Private MIB
Fast Roaming 802.11r/k
Wireless Security WPA2-PSK, WPA2-Enterprise, Hide SSID in Beacons, MAC Address Filtering, Up to 32 MACs per SSID, Wireless STA (Client) Connected List, Https, SSH, Client Isolation
View full details
