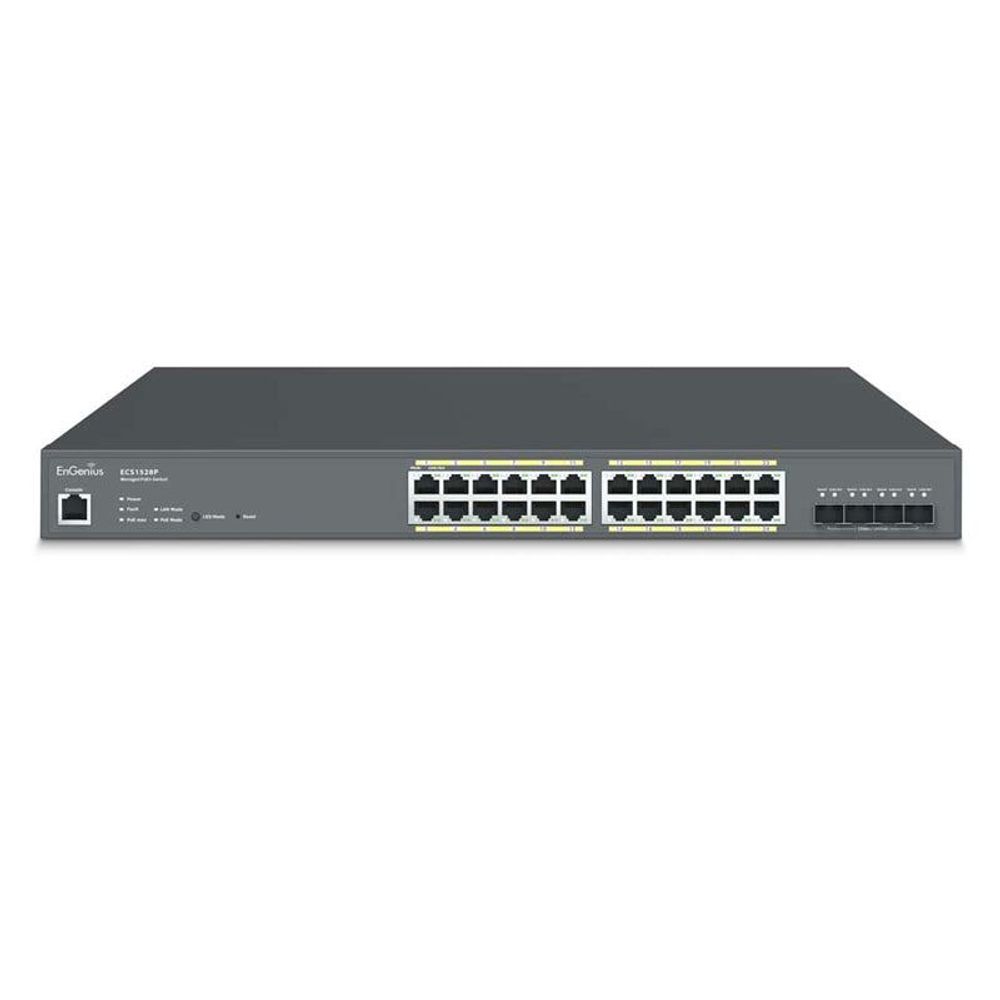

ECS1528P - EnGenius ECS1528P Cloud Managed 240W PoE 24-Port Gigabit Switch with SFP+

ECS1528P - EnGenius ECS1528P Cloud Managed 240W PoE 24-Port Gigabit Switch with SFP+

ECS1528P

$923.00 NZD
$923.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
The EnGenius Networks ECS1528P Cloud Managed 240W 24-Port PoE Switch features simplified network configuration, monitoring, and management options along with an easy-to-use Web interface. Power compatible PoE devices such as IP cameras, VoIP phones, and Access points.

ECS series switches can be managed by EnGenius Cloud and on-premises ezMaster or can be worked as standalone switches, providing enterprise-class features for simplifying network configuration and monitoring at prices affordable to small and mid-sized businesses. With advanced management, EnGenius Switches enhance network performance to allow companies to focus on growing their business.

EnGenius Cloud is built on top of the most advanced cloud computing technology. Scalable and AI-ready, the robust and dynamic cloud computing infrastructure helps you work smart on your network with important analytics and visualization .

Deploy and Monitor Your Networks with EnGenius Cloud App: Easy device deployment, visualized monitoring, and alerts for abnormal network activity available within an intuitive mobile app.

Features
  • Managed by EnGenius Cloud platform or EnSky on-premises
  • (24) 10/100/1000 Mbps Gigabit Ethernet PoE ports
  • (4) 10 Gigabit SFP plus uplink ports for superior network performance
  • The desktop model supports full-featured Layer 2 switching
  • 802.3af/at available on all ports with a total PoE budget of 240W
  • Advanced PoE features for Surveillance: PoE extend mode, PD lifeguard, and Continuous PoE power
Details
Manufacturer's Code ECS1528P
Network Ports 24 x 10/100/1000 Mbps Ports, 4 x 1000/10000 SFP+ Ports
Port Standards 802.3 10Base-T Ethernet, 802.3u 100Base-TX Ethernet, 802.3ab 10000Base-T Ethernet, 802.3x Full-Duplex Flow Control
Performance Switching Capacity: 128Gbps, Forwarding Mode: Store-and-Forward, Flash Memory: 128 MB, SDRAM:512MB, Packet Buffer Memory: 2M, Address Database Size: 16K MAC Addresses
PoE Capability PoE Standard: Ports 1~24 Support IEEE 802.3at/af, PoE Capable Ports: All Gigabit Ethernet Ports
PoE Budget 240 W, 802.3af/at Available On All Ports
Power Source AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A, DC Output: 54V/1.67A
LED Indicators Device: Power LED, Fault LED, PoE Max LED, LAN Mode LED. PoE Mode LED
Ports LED Link/Activity/Speed (per Ethernet port), Link/Activity/Speed (per SFP slot)
Network Layer Support Layer 2 & 3 (See Datasheet)
Dimensions Weight: 4.7Kg, Width: 260mm, Length: 440mm, Height: 44mm
Temperature Range Operating: 32 to 122° F/0 to 50° C



Details
Warranty Standard 36 Month RTB
Mounting Hardware Rack Mount Kit
Power Power Cord





Specifications





Details
Manufacturer's Code ECS1528P
Network Ports 24 x 10/100/1000 Mbps Ports, 4 x 1000/10000 SFP+ Ports
Port Standards 802.3 10Base-T Ethernet, 802.3u 100Base-TX Ethernet, 802.3ab 10000Base-T Ethernet, 802.3x Full-Duplex Flow Control
Performance Switching Capacity: 128Gbps, Forwarding Mode: Store-and-Forward, Flash Memory: 128 MB, SDRAM:512MB, Packet Buffer Memory: 2M, Address Database Size: 16K MAC Addresses
PoE Capability PoE Standard: Ports 1~24 Support IEEE 802.3at/af, PoE Capable Ports: All Gigabit Ethernet Ports
PoE Budget 240 W, 802.3af/at Available On All Ports
Power Source AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A, DC Output: 54V/1.67A
LED Indicators Device: Power LED, Fault LED, PoE Max LED, LAN Mode LED. PoE Mode LED
Ports LED Link/Activity/Speed (per Ethernet port), Link/Activity/Speed (per SFP slot)
Network Layer Support Layer 2 & 3 (See Datasheet)
Dimensions Weight: 4.7Kg, Width: 260mm, Length: 440mm, Height: 44mm
Temperature Range Operating: 32 to 122° F/0 to 50° C
