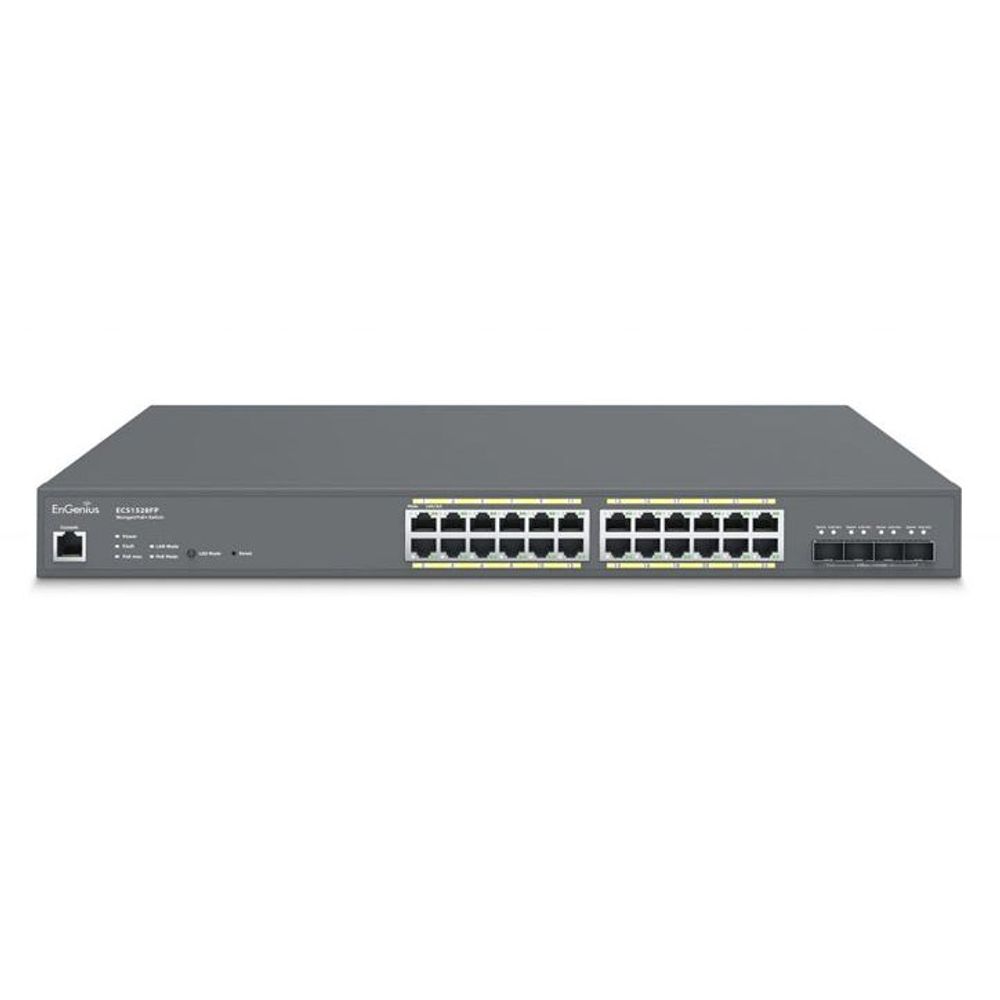

ECS1528FP - EnGenius ECS1528FP Cloud Managed 410W PoE 24-Port Gigabit Switch with SFP+

ECS1528FP - EnGenius ECS1528FP Cloud Managed 410W PoE 24-Port Gigabit Switch with SFP+

ECS1528FP

$495.00 NZD
$495.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
The ECS1528FP Cloud Managed 410W 24-Port Gigabit PoE Switch with 4 x SFP+ 10 Gigabit Ports features simplified network configuration, monitoring and management options along with an easy-to-use Web interface. Power compatible PoE devices such as IP cameras, VoIP phones, and APs.

ECS series switches can be managed by EnGenius Cloud and on-premises ezMaster or can be worked as standalone switches, providing enterprise-class features for simplifying network configuration and monitoring at prices affordable to small and mid-sized businesses. With advanced management, EnGenius Switches enhance network performance to allow companies to focus on growing their business.

EnGenius Cloud is built on top of the most advanced cloud computing technology. Scalable and AI-ready, the robust and dynamic cloud computing infrastructure helps you work smart on your network with important analytics and visualization .

Deploy and Monitor Your Networks with EnGenius Cloud App: Easy device deployment, visualized monitoring, and alerts for abnormal network activity available within an intuitive mobile app.


Features
  • (24) 10/100/1000 Mbps Gigabit Ethernet PoE Ports
  • (4) 10 Gigabit SFP Plus Uplink Ports for Superior Network Performance
  • Desktop Model Supports Full-Featured Layer 2 Switching
  • 802.3af/at Available On All Ports with a Total PoE Budget of 410W
  • Configure stand alone with EnSky or Manage for Free with EnGenius Cloud
Details
Manufacturer's Code ECS1528FP
Network Ports 24 x 10/100/1000 Mbps Ports, 4 x 1000/10000 SFP+ Ports
Port Standards 802.3 10Base-T Ethernet, 802.3u 100Base-TX Ethernet, 802.3ab 10000Base-T Ethernet, 802.3x Full-Duplex Flow Control
Performance Switching Capacity: 128Gbps, Forwarding Mode: Store-and-Forward, Flash Memory: 128 MB, SDRAM:512MB, Packet Buffer Memory: 2M, Address Database Size: 16K MAC Addresses
PoE Capability PoE Standard: Ports 1~24 Support IEEE 802.3at/af, PoE Capable Ports: All Gigabit Ethernet Ports
PoE Budget 410 W
Power Source AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A, DC Output: 54V/1.67A
LED Indicators Device: Power LED, Fault LED, PoE Max LED, LAN Mode LED. PoE Mode LED
Ports LED Link/Activity/Speed (per Ethernet port), Link/Activity/Speed (per SFP slot)
Network Layer Support Layer 2 & 3 (See Datasheet)
Dimensions Weight: 4.7Kg, Width: 260mm, Length: 440mm, Height: 44mm
Details
Warranty Standard 36 Month RTB
Mounting Hardware Rack Mount Kit
Power Power Cord





Specifications





Details
Manufacturer's Code ECS1528FP
Network Ports 24 x 10/100/1000 Mbps Ports, 4 x 1000/10000 SFP+ Ports
Port Standards 802.3 10Base-T Ethernet, 802.3u 100Base-TX Ethernet, 802.3ab 10000Base-T Ethernet, 802.3x Full-Duplex Flow Control
Performance Switching Capacity: 128Gbps, Forwarding Mode: Store-and-Forward, Flash Memory: 128 MB, SDRAM:512MB, Packet Buffer Memory: 2M, Address Database Size: 16K MAC Addresses
PoE Capability PoE Standard: Ports 1~24 Support IEEE 802.3at/af, PoE Capable Ports: All Gigabit Ethernet Ports
PoE Budget 410 W
Power Source AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A, DC Output: 54V/1.67A
LED Indicators Device: Power LED, Fault LED, PoE Max LED, LAN Mode LED. PoE Mode LED
Ports LED Link/Activity/Speed (per Ethernet port), Link/Activity/Speed (per SFP slot)
Network Layer Support Layer 2 & 3 (See Datasheet)
Dimensions Weight: 4.7Kg, Width: 260mm, Length: 440mm, Height: 44mm
