EnGenius

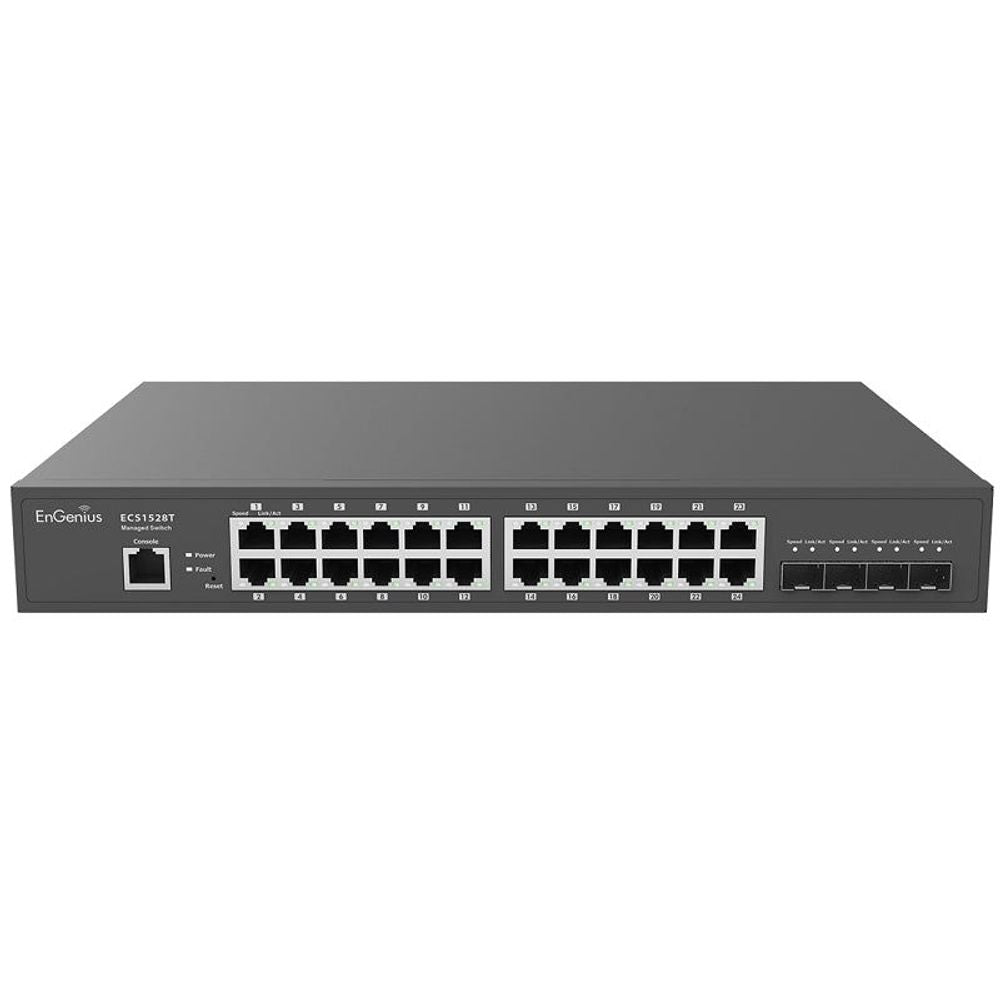

ECS1528 - EnGenius ECS1528T Cloud Managed 24-Port Gigabit Switch with SFP+ Non-POE

ECS1528 - EnGenius ECS1528T Cloud Managed 24-Port Gigabit Switch with SFP+ Non-POE

ECS1528

$249.00 NZD
$249.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
EnGenius Cloud ECS1528T is a 24-Port Gigabit Layer 2+ Switch with 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for large businesses.

ECS series switches can be managed by EnGenius Cloud and on-premises ezMaster or can be worked as standalone switches, providing enterprise-class features for simplifying network configuration and monitoring at prices affordable to small and mid-sized businesses. With advanced management, EnGenius Switches enhance network performance to allow companies to focus on growing their business.

EnGenius Cloud is built on top of the most advanced cloud computing technology. Scalable and AI-ready, the robust and dynamic cloud computing infrastructure helps you work smart on your network with important analytics and visualization .

Deploy and Monitor Your Networks with EnGenius Cloud App: Easy device deployment, visualized monitoring, and alerts for abnormal network activity available within an intuitive mobile app.

Features
  • 24 x gigabit ports for high-speed connections
  • 4 x 10Gbps SFP+ uplink ports for bandwidth-intensive applications
  • 13" housing compact size design
  • Zero touch provisioning, centralized cloud management and visualized monitoring
  • Hybrid cloud switch supports flexible management options such as EnGenius cloud, EnSky on-premises or standalone
  • Robust security that supports Port based / MAC based ACL Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication and more
  • Optimized for quality voice and video traffic with Voice-VLAN feature
Details
Manufacturer's Code ECS1528
Network Ports 24 x 10/100/1000 Mbps Ports, 4 x 1000/10000 SFP+ Ports
Port Standards 802.3 10Base-T Ethernet, 802.3u 100Base-TX Ethernet, 802.3ab 10000Base-T Ethernet, 802.3x Full-Duplex Flow Control
Performance Switching Capacity: 128Gbps, Forwarding Mode: Store-and-Forward, Flash Memory
Power Source AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A
LED Indicators Device: Power LED, Fault LED, PoE Max LED, LAN Mode LED. PoE Mode LED
Ports LED Link/Activity/Speed (per Ethernet port), Link/Activity/Speed (per SFP slot)
Network Layer Support Layer 2 & 3 (See Datasheet)
Dimensions Weight: 1.9Kg, Width: 330mm, Length: 228mm, Height: 44mm
Details
Mounting Hardware Rack Mount Kit
Power Power Cord





Specifications





Details
Manufacturer's Code ECS1528
Network Ports 24 x 10/100/1000 Mbps Ports, 4 x 1000/10000 SFP+ Ports
Port Standards 802.3 10Base-T Ethernet, 802.3u 100Base-TX Ethernet, 802.3ab 10000Base-T Ethernet, 802.3x Full-Duplex Flow Control
Performance Switching Capacity: 128Gbps, Forwarding Mode: Store-and-Forward, Flash Memory
Power Source AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A
LED Indicators Device: Power LED, Fault LED, PoE Max LED, LAN Mode LED. PoE Mode LED
Ports LED Link/Activity/Speed (per Ethernet port), Link/Activity/Speed (per SFP slot)
Network Layer Support Layer 2 & 3 (See Datasheet)
Dimensions Weight: 1.9Kg, Width: 330mm, Length: 228mm, Height: 44mm
