EnGenius

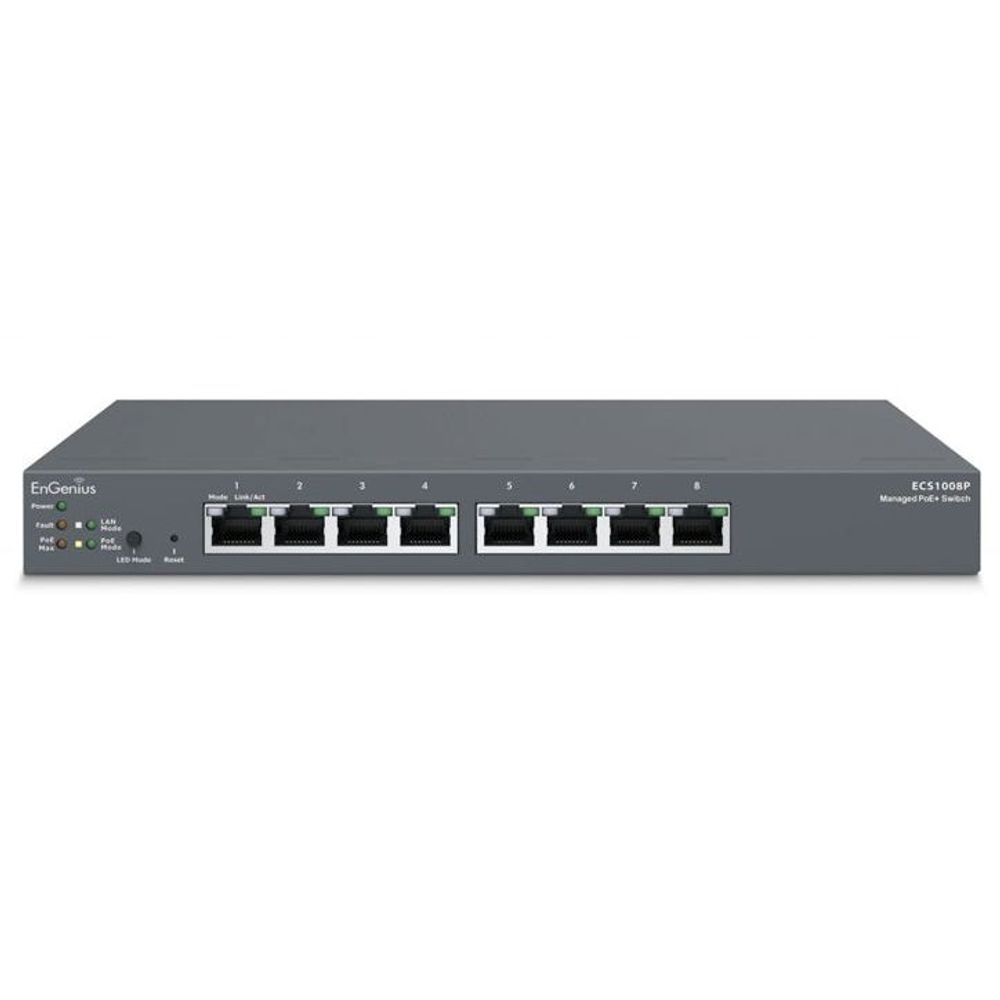

ECS1008P - EnGenius ECS1008P Cloud Managed 8-Port Gigabit PoE Switch 55W

ECS1008P - EnGenius ECS1008P Cloud Managed 8-Port Gigabit PoE Switch 55W

ECS1008P

$256.00 NZD
$256.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
The EnGenius Networks ECS1008P Cloud Managed 55W 8-Port Gigabit PoE Switch features simplified network configuration, monitoring and management options along with an easy-to-use Web interface. Power compatible PoE devices such as IP cameras, VoIP phones, and APs.

ECS series switches can be managed by EnGenius Cloud and on-premises ezMaster or can be worked as standalone switches, providing enterprise-class features for simplifying network configuration and monitoring at prices affordable to small and mid-sized businesses. With advanced management, EnGenius Switches enhance network performance to allow companies to focus on growing their business.

With easy-to-deploy design, EnGenius Managed Gigabit PoE Switches are operational within minutes. Organizations with limited IT support and budgets can create a reliable, efficiently managed network in no time.

Features
  • (8) 10/100/1000 Mbps Gigabit Ethernet PoE Ports
  • Desktop Model Supports Full-Featured Layer 2 Switching
  • 802.3af Available On All Ports with a Total PoE Budget of 55W
  • Advanced view displays network topology with devices and relationships
  • Network troubleshooting, monitoring, and e-mail alerts
  • Full-featured layer 2+ switching
  • Configure stand alone with EnSky or Manage for free with EnGenius Cloud
Details
Manufacturer's Code ECS1008P
Network Ports (8)10/100/1000 Mbps Ports
Port Standards 802.3 10Base-T Ethernet, 802.3u 100Base-TX Ethernet, 802.3ab 10000Base-T Ethernet, 802.3x Full-Duplex Flow Control
Performance Switching Capacity: 16Gbps, Forwarding Mode: Store-and-Forward, Flash Memory: 32 MB, SDRAM: 256MB, Packet Buffer Memory: 512 KB, Address Database Size: 8,000 MAC Addresses
PoE Capability PoE Standard: Ports 1~8 Support IEEE 802.3af, PoE Capable Ports: All Gigabit Ethernet Ports
PoE Budget 55 W
Power Source AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A, DC Output: 54V/1.67A
LED Indicators Reset Button, Desktop/Wall Mount
LED Indicators Device Power LED, Fault LED, PoE Max LED, LAN Mode LED, PoE Mode LED
Ports Link/Activity/Speed (per Ethernet port), Link/Activity/Speed (per SFP slot)
Network Layer Support Layer 2 & 3 (See Datasheet)
Dimensions Weight: 1.5Kg, Width: 105mm, Length: 240mm, Height: 27mm



Details
Power Supply Included
Wall Mount Kit Included





Specifications





Details
Manufacturer's Code ECS1008P
Network Ports (8)10/100/1000 Mbps Ports
Port Standards 802.3 10Base-T Ethernet, 802.3u 100Base-TX Ethernet, 802.3ab 10000Base-T Ethernet, 802.3x Full-Duplex Flow Control
Performance Switching Capacity: 16Gbps, Forwarding Mode: Store-and-Forward, Flash Memory: 32 MB, SDRAM: 256MB, Packet Buffer Memory: 512 KB, Address Database Size: 8,000 MAC Addresses
PoE Capability PoE Standard: Ports 1~8 Support IEEE 802.3af, PoE Capable Ports: All Gigabit Ethernet Ports
PoE Budget 55 W
Power Source AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A, DC Output: 54V/1.67A
LED Indicators Reset Button, Desktop/Wall Mount
LED Indicators Device Power LED, Fault LED, PoE Max LED, LAN Mode LED, PoE Mode LED
Ports Link/Activity/Speed (per Ethernet port), Link/Activity/Speed (per SFP slot)
Network Layer Support Layer 2 & 3 (See Datasheet)
Dimensions Weight: 1.5Kg, Width: 105mm, Length: 240mm, Height: 27mm
View full details
