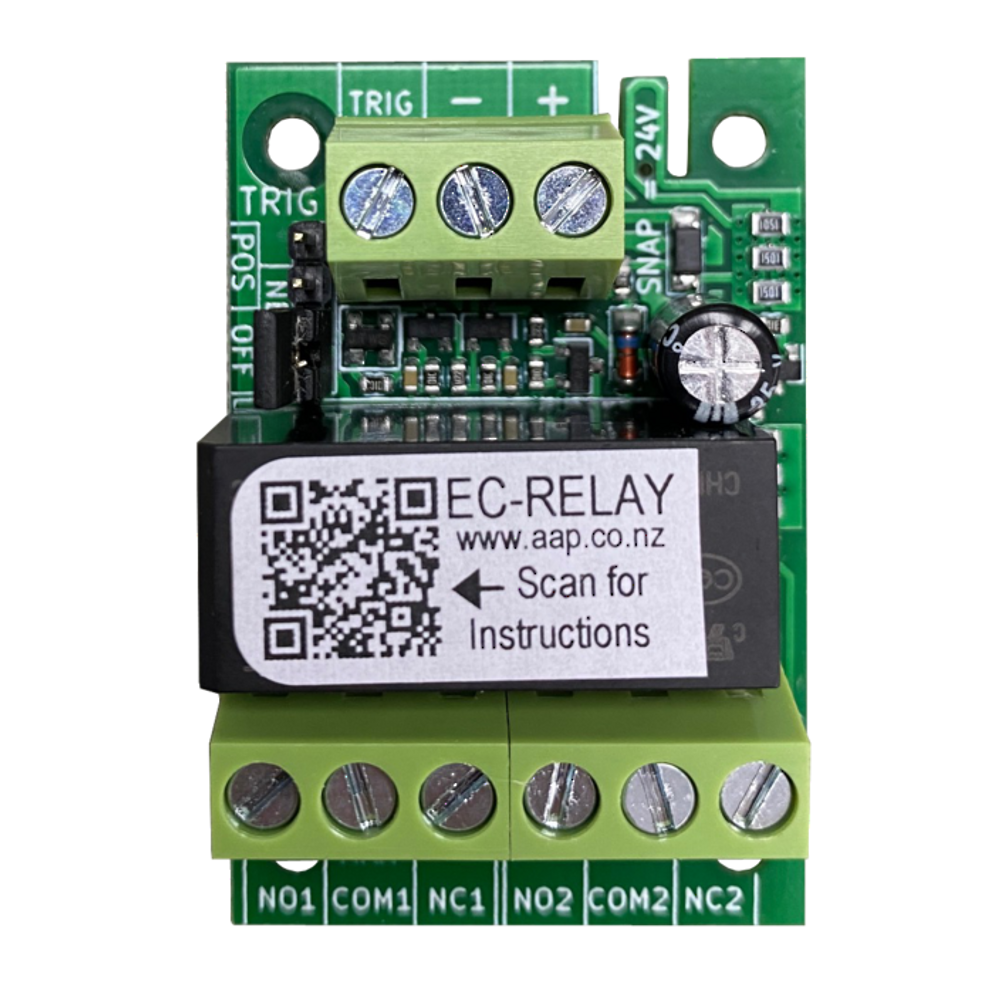

EC-RELAY - DPDT 8A Relay board, 12/24V AC/DC, with Low Current Trigger Option

EC-RELAY - DPDT 8A Relay board, 12/24V AC/DC, with Low Current Trigger Option

EC-RELAY

$27.77 NZD
$34.87 NZD $27.77 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

DPDT 8A Relay board, 12/24V AC/DC, with Low Current Trigger Option

     Specifications:

Coil 12V Mode - 9 to 20VDC 35mA / 11 to 16VAC
Coil 24V Mode - 19 to 32VDC 45mA / 15 to 26VAC (see paperwork for selecting this mode)
Contacts - DPDT 8Amp, 40VDC Max. (Normally Open and Normally Closed)
Trigger Mode Negative - Current of >1mA required to activate
Trigger Mode Positive - 2.0 to 30VDC, Current of >1mA required to activate
Size - 35mm(w) x 52mm(h) x 20mm(d)
Mounting Holes - 3mm x 4 (Use BSS-9 standoff)
Indicator - Green LED On when coil is energized

Brochure

Installation Instruction
