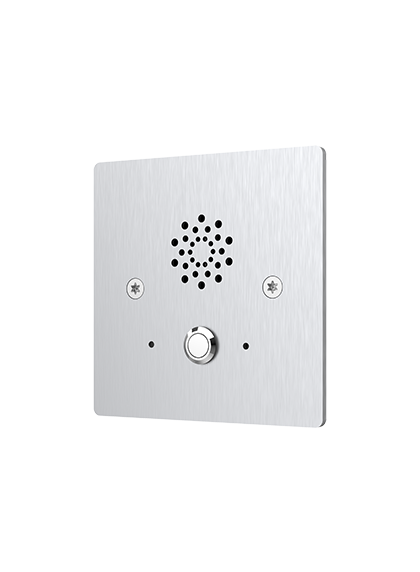

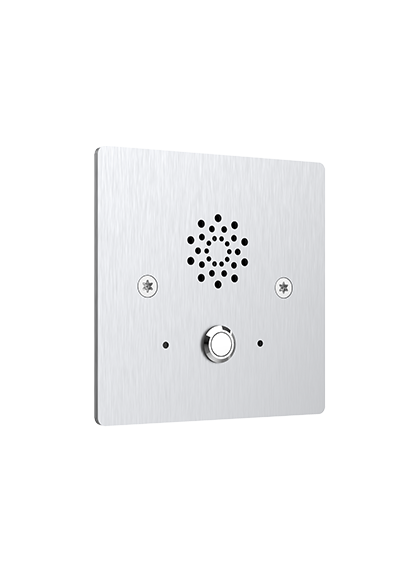

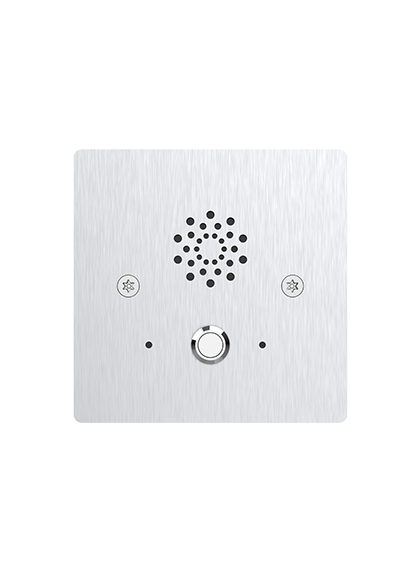

E20S - Akuvox Vandal-resistant Emergency SIP Audio Intercom

E20S

Vandal-resistant Emergency Intercom

E20S is a compact SIP emergency intercom that is ruggedized with 316-grade stainless steel. It is designed for indoor use and is compatible with 1299 and 86 type single in-wall boxes

Specs

E20S Specification

• Physical & Power

  Front panel: 316 grade stainless steel

  Button: 1 panic button

  Ethernet port: RJ45, 10/100Mbps adaptive

  Power supply: PoE (IEEE802.3af) only

  Indicator: 1

  Microphone / Speaker: 1 / 1

  Dimensions: 100x100x38 mm

  Installation: Flush-mounted

  Working Humidity: 10~90%

  Working Temperature: -20°C ~ +55°C

  Storage Temperature: -25°C ~ +60°C

  SIP Protocol: SIP v1 (RFC2543), SIP v2 (RF3261)

  SIP account: 1 SIP account

  Audio codecs: G.711a, G.711μ, G.722

  QoS support: Yes

  Auto Answer support: Yes

  Network mode: DHCP or Static IP

  System time: NTP for auto-time setting

  Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTP, TCP, UDP, ICMP, DHCP, ARP
