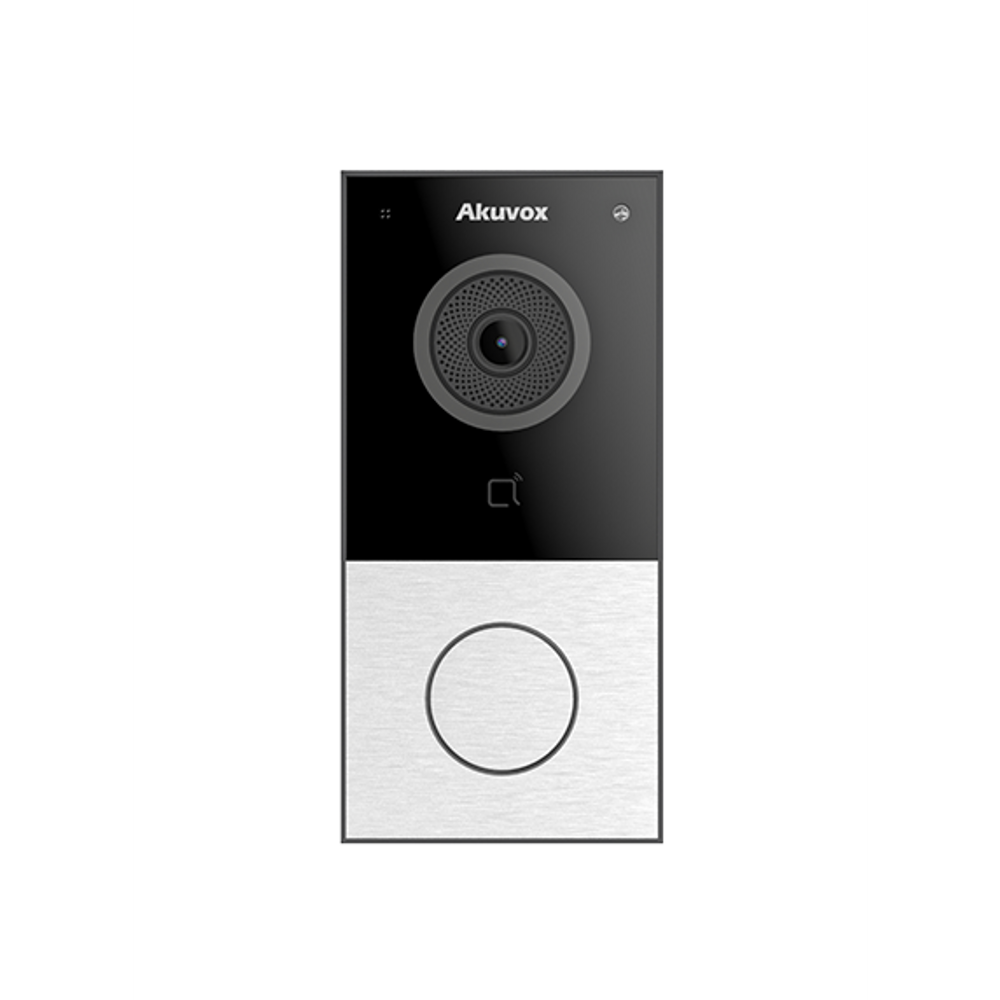

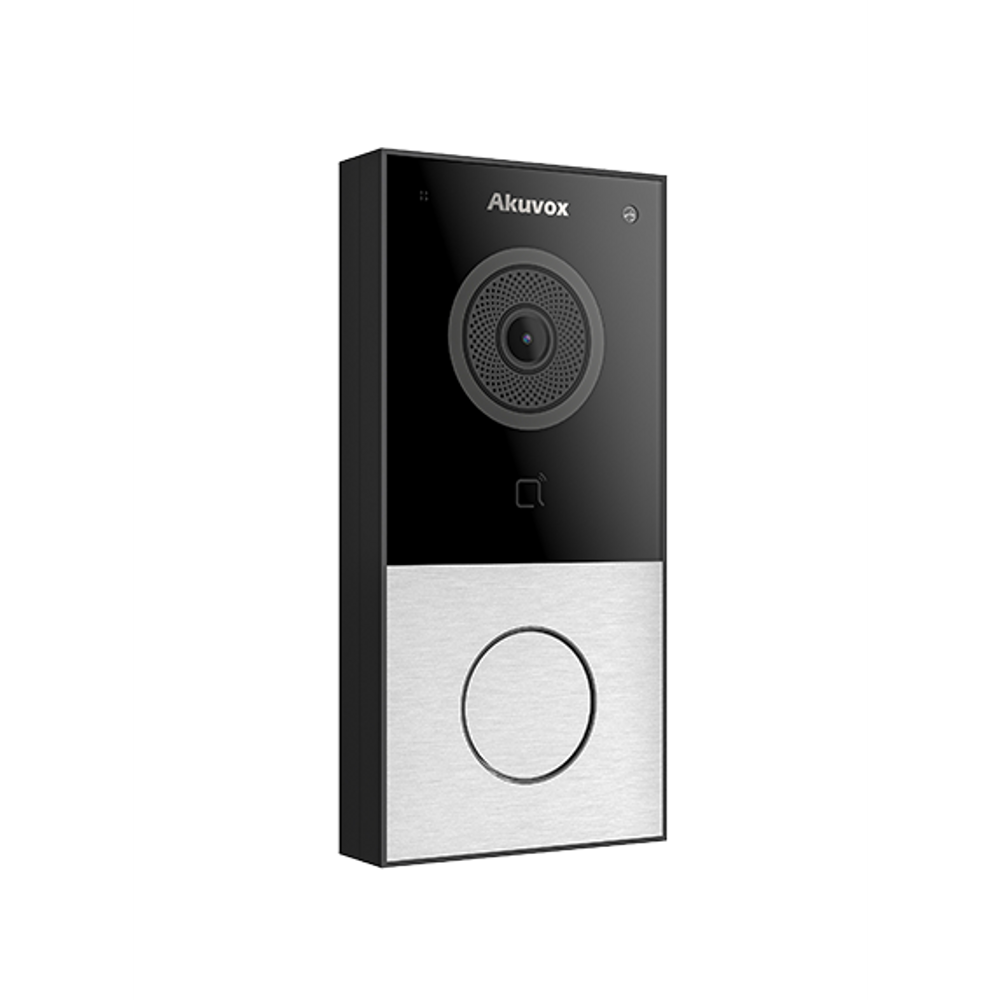

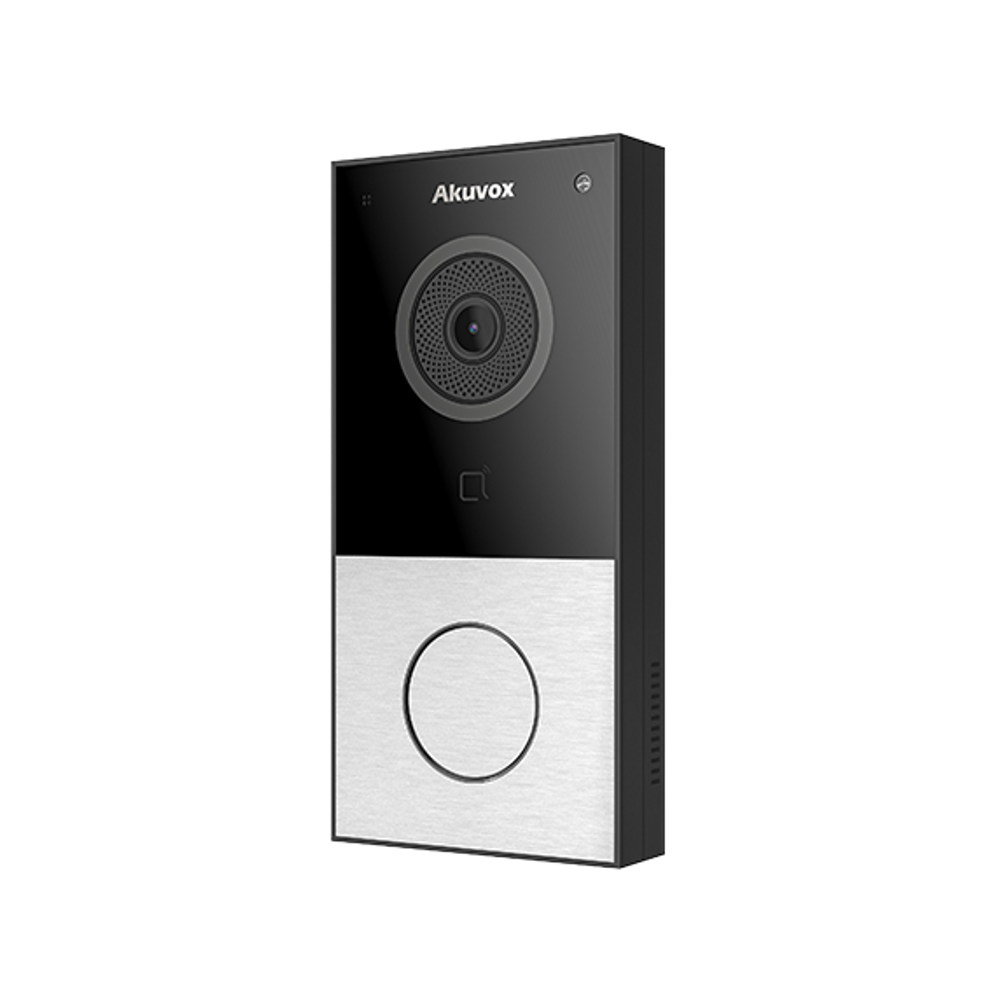

E12
Compact, Stylish and Versatile, Perfect for Every Front Door
E12 is a single-button SIP video door phone for all types of front doors, be it houses, apartments, or condos. Despite a slim body, it boasts many cutting-edge features, such as mobile access and wireless communication
FEATURES
Real-time 2-way talk
Live camera viewing
Cloud or local based storage
Rated for outdoor use
Mobile App compatible
Integrated with any SIP device
E12
E12 Specification
Physical & Power
Body Material: Plastic
Camera: 2M pixels, automatic lighting
Button: 1 call button with backlight
Wiegand port: Support
RF card reader: 13.56MHz
Light sensor: 1
Relays out: 1
Inputs: 2
Micro SD card slot: 1
Microphone: -36dB
Speaker: 8Ω / 1.5W
Ethernet port: RJ45, 10/100Mbps adaptive
BLE: Yes
WiFi: IEEE802.11b/g/n, 2.4GHz (E12W Only）
Vandal alarm: Yes
802.3af Power-over-Ethernet
12V DC connector (if not using PoE)
Power: 12V / 1A
Water-proof & Dust-proof: IP65
Installation: Wall-mounted
Size: 146x70x23mm
Working Humidity: 10~90%
Working Temperature: -40°C ~ +60°C
Storage Temperature: -40°C ~ +70°C
Audio
SIP v1 (RFC2543), SIP v2 (RFC3261)
Narrowband audio codec: G.711a, G.711μ, G.729
Broadband audio codec: G.722
DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
Echo Cancellation
Voice Activation Detection
Comfort Noise Generator
Video
Sensor: 1/2.7”, CMOS
Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
Video codec: H.264, H.265
Video resolution: up to 1920x1080p
Max. image transfer rate: 1080p – 25fps
Viewing angle: 123°(H) / 69°(V)
White LEDs for picture lighting during dark hours with internal light sensor
