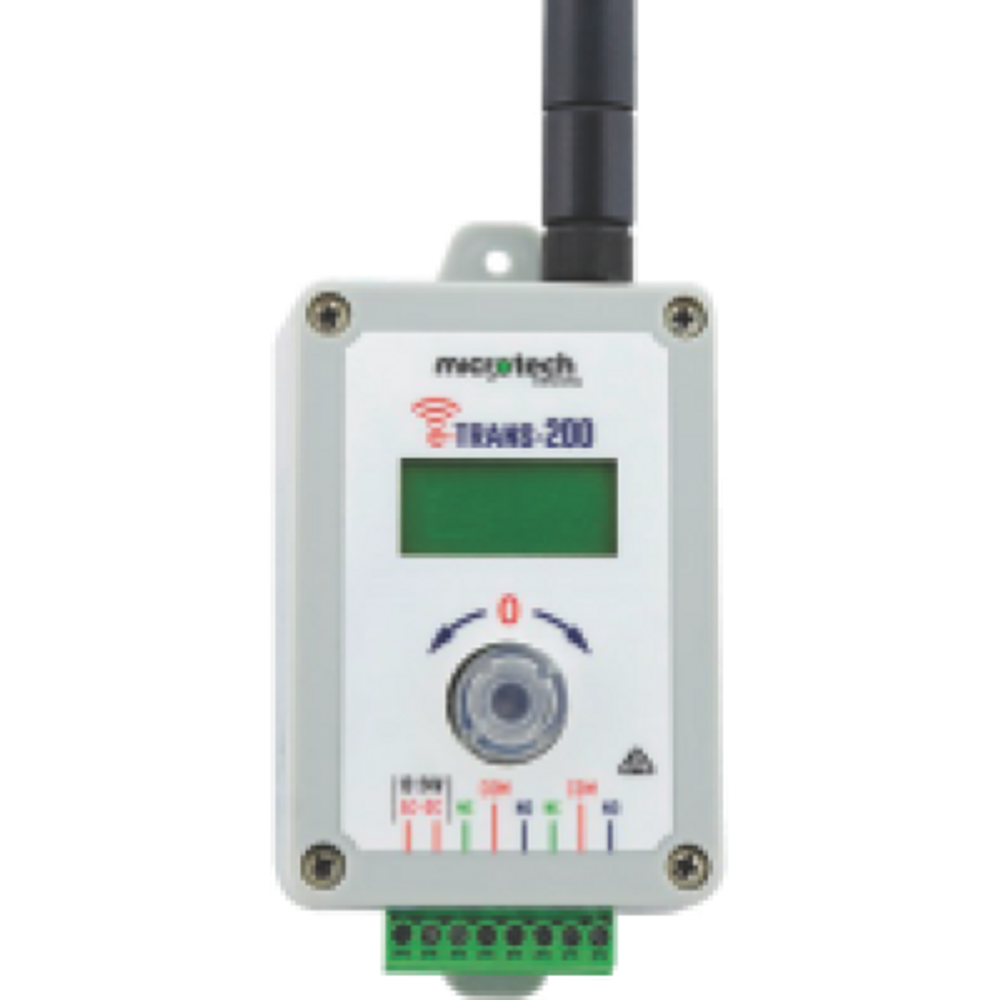

E-TRANS 200 - Two Channel LCD Transceiver

Introducing a bidirectional wireless access control system for gate and door applications. With a unique lock out function this high end accessory is designed to manage access control for commercial multi-unit complexes with up to 200 units, with functions also suitable for home systems.

Features:
⦁ Simple to use menu functions with LCD display
⦁ High sensitivity 433 MHz - 126 dBm receiver with 20 dBm Transmission output
⦁ External SMA connector to allow for the connection of different antennas
⦁ Wide input voltage range from 10V to 36V ACDC
⦁ 2 relay outputs with ability to set to Pulse, Hold or Latch mode
⦁ Selectable ultra-low standby power consumption of only 4.5 m/a making it ideal for solar applications
⦁ 200 code storage with remote ID selection making it ideal for unit applications
⦁ Ability to delete individual remotes devices
⦁ Unique lock out feature allowing you to lock out entry buttons, e-Loops and keypads using the lock and unlock function on the e-Remote
⦁ Ability to connect to the e-loop to access menus and change settings
⦁ Test mode which allows you to test relay outputs, radio signal strength and radio interference
