DV167 - DrayTek Vigor DV167 VDSL2/ADSL2+ Modem Router with 2 x GbE LAN ports

DV167 - DrayTek Vigor DV167 VDSL2/ADSL2+ Modem Router with 2 x GbE LAN ports

DV167

$262.00 NZD
$262.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock

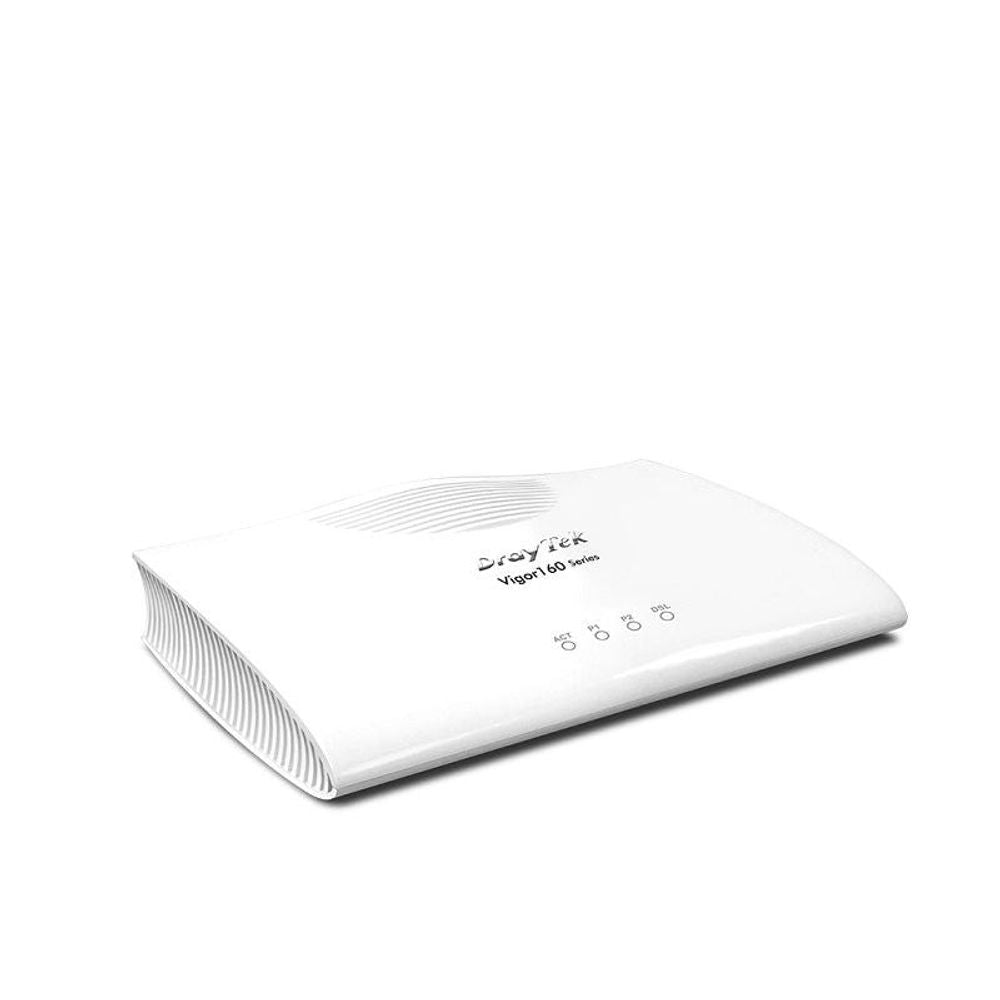

DrayTek Vigor DV167 VDSL2/ADSL2+ Modem Router with 2 x GbE LAN ports.

The DrayTek Vigor167 is a VDSL2 router/modem with 1 x RJ-11 port and 2 x GbE LAN ports. The built-in DSL modem is backward compatible with ADSL2+ connections and delivers download speeds up to 300 Mbps through the Supervectoring 35b technology. It is configurable for router/modem (bridge) modes and supports TR-069 based VigorACS3 remote management software.
Features
  • 1 x VDSL2 35b Supervectoring / ADSL2+ WAN port
  • 2 x Gigabit Ethernet LAN ports
  • Two Operation Modes, VDSL2/ADSL2+ Bridging Mode or Router Mode
  • NAT Features (Router Mode) - Port Forwarding, DMZ, Port Triggering, ALG and UPnP
  • VDSL2 vectoring
  • IPv4 Static Routing
  • IGMP (Router Mode)
  • Object-oriented SPI Firewall
  • IPv6 & IPv4
  • Supports VigorACS 3 Central Management System for remote management
Details
Manufacturer's Code Vigor167
Fixed WAN Port 1x RJ-11 for VDSL2 35b/ADSL2+
LAN Port 2x Gigabit Ethernet RJ-45
Max. VDSL Speed 300 Mbps
Max. ADSL Speed 20 Mbps
Max. Number of NAT Sessions 10,000
VDSL Standards ITU-T G.993.1 (VDSL), G.997.1, G.993.2 (VDSL2)
VDSL2 Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b (not G.Fast)
VDSL Band Plan 997, 998
ADSL Standards ANSI T1.413, ITU-T G.992.1(G.dmt)
ADSL2 Standards ITU-T G.992.3, G.992.3 Annex M/J
ADSL2+ Standards ITU-T G.992.5, G.992.5 Annex M/J
Internet Connection (IPv4) PPPoE, DHCP, Static IP, PPTP/L2TP
Power Supply DC 12V @ 0.4A
Max. Power Consumption 4.4 watts
Dimension 181mm x 125mm x 40mm
Weight 270g
Operating Temperature 0 to 45°C
Storage Temperature -25 to 70°C
Operating Humidity (non-condensing) 10 to 90%
Details
Power Supply Included





Specifications





Details
Manufacturer's Code Vigor167
Fixed WAN Port 1x RJ-11 for VDSL2 35b/ADSL2+
LAN Port 2x Gigabit Ethernet RJ-45
Max. VDSL Speed 300 Mbps
Max. ADSL Speed 20 Mbps
Max. Number of NAT Sessions 10,000
VDSL Standards ITU-T G.993.1 (VDSL), G.997.1, G.993.2 (VDSL2)
VDSL2 Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b (not G.Fast)
VDSL Band Plan 997, 998
ADSL Standards ANSI T1.413, ITU-T G.992.1(G.dmt)
ADSL2 Standards ITU-T G.992.3, G.992.3 Annex M/J
ADSL2+ Standards ITU-T G.992.5, G.992.5 Annex M/J
Internet Connection (IPv4) PPPoE, DHCP, Static IP, PPTP/L2TP
Power Supply DC 12V @ 0.4A
Max. Power Consumption 4.4 watts
Dimension 181mm x 125mm x 40mm
Weight 270g
Operating Temperature 0 to 45°C
Storage Temperature -25 to 70°C
Operating Humidity (non-condensing) 10 to 90%
