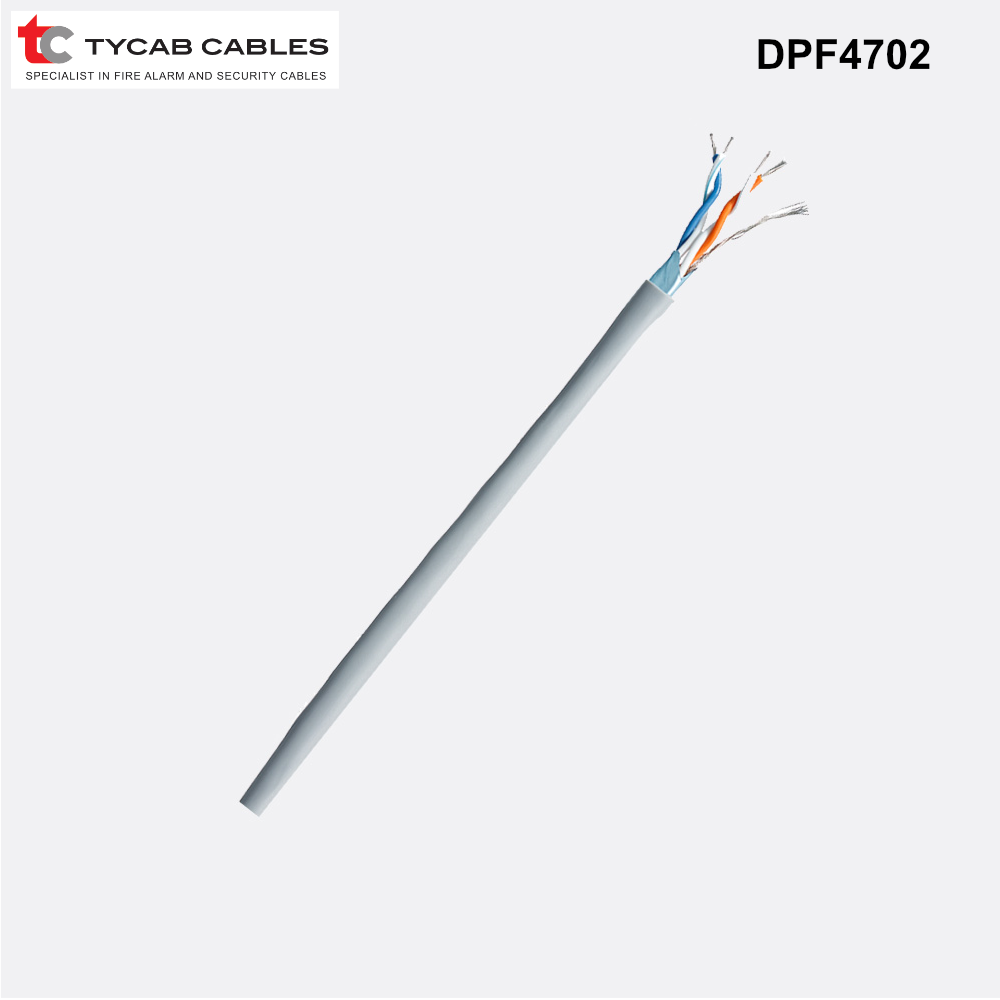

DPF4702 - Tycab 2 Pair Twisted 0.22mm Data Cable Shielded Copper - 100, 250 or 500m

Features

• 2 Pair 0.22mm Shielded Cable
• Data Grade Polypropylene insulated RS422

• Applications - Data Communication, Balanced Mode, Low Capacitance
• Available 100m, 250m or 500m drums

Specs

2 Pair 7/.2 (0.2mmsq) 24AWG. T.A.C.W. Polypropylene insulated.
Aluminium Laminate tape screened. PVC sheathed. Data cable.

Construction

Conductor: 7 strands of 0.2mm Tinned Annealed Copper to AS/NZS1125 drawn from Class 110A copper to AS/NZS1574.
Max. D.C. resistance at 20C: 89 ohms / km.

Insulation: Coloured Data Grade Polypropylene.
Nominal Diameter: 1.2 mm.
Nominal Wall Thickness: 0.3 mm.

Lay Up: 2 Pairs laid up.
Pair 1. Blue + White / Blue
Pair 2. Orange + White / Orange

Screen: Aluminium / Polyester laminate tape in constant contact with a 7/.2 TACW drain wire.

Sheath: Coloured 4V75 PVC to AS/NZS3808.
Nominal Diameter: 5.8 mm.
Nominal Wall Thickness: 0.76 mm.

Typical Capacitance: 53 pF/m

Typical Impedance: 93 ohms

Identification: At nominally 1M intervals printed on sheath: TYCAB AUSTRALIA MULTIPAIR DATA DPF4702 CCL A93/CA/0111
