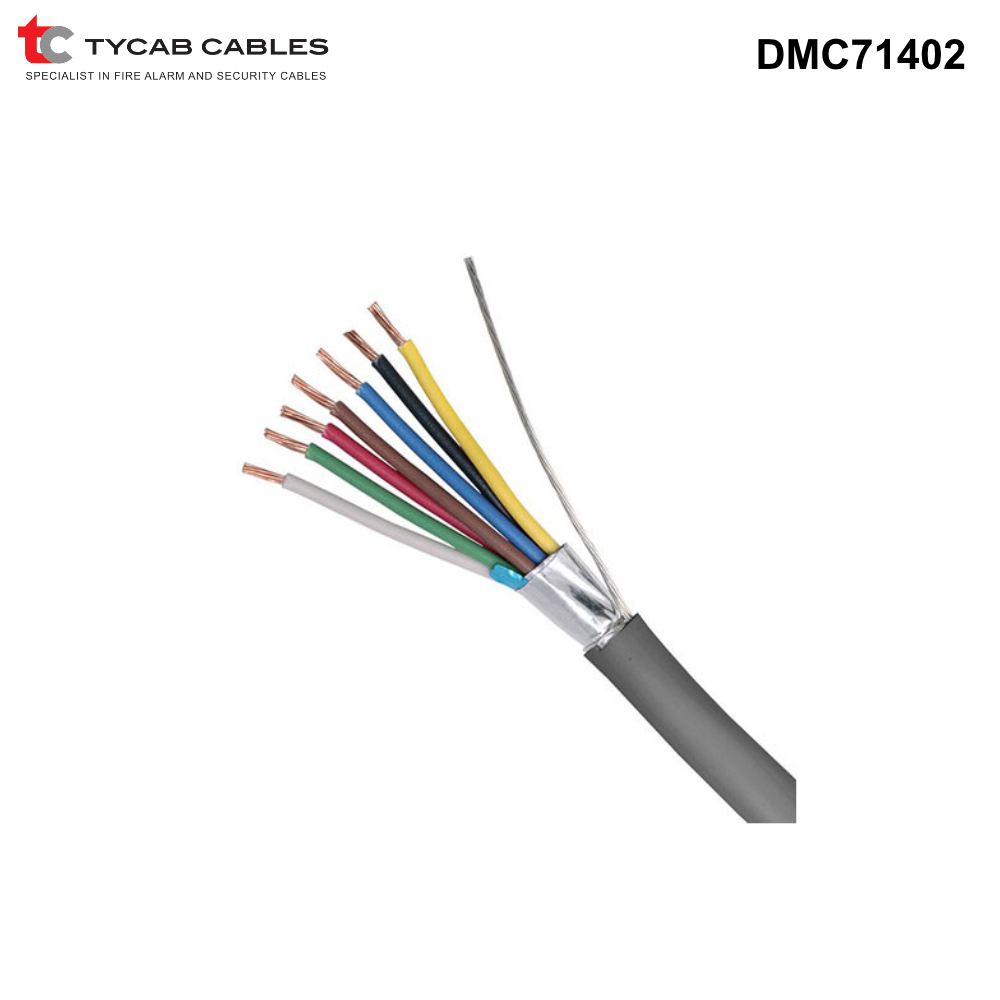

DMC71402 - 7 Core 0.44mm Data Cable Screened Copper - 100, 250 or 500m

Features

• 7 core 0.44mm screened
• V75 PVC insulated RS232
• Applications - Data Communication, Interface Cable
• Available 100m, 250m or 500m drums

Specs

7 core 14/0.2 Plain Copper Wire (0.4mmsq)
V75 Insulated Aluminium / Polyester tape screened including a 7/0.2 Tinned drain wire. V75C PVC Sheathed.
AUSTEL approval A93/CA/0122
Extra Low Voltage use, not for mains connection.
Oxygen-Free Copper. RoHS Compliant PVC.

Construction

Conductor: 14 strands of 0.2mm nom. Annealed Copper to AS/NZS1125 drawn from Class 110A copper to AS/NZS1574.
Max. D.C. resistance at 20C: 45.0 ohms / km.

Insulation: Coloured P.V.C to AS/NZS3808 type V75.
Nominal Diameter: 1.45 mm.
Nominal Wall Thickness: 0.26 mm.

Lay Up: 7 cores
1. Red
2. Blue
3. Green
4. Yellow
5. White
6. Black
7. Brown

Screen: Aluminium / Polyester tape screen in contact along its length with a 7/.2 TACW drain wire.

Sheath: Coloured P.V.C. to AS/NZS3808 type 4V75.
Nominal Diameter: 6.2 mm.
Nominal Wall Thickness: 0.76 mm.

Identification: on sheath at intervals not exceeding 2 metres TYCAB AUSTRALIA MULTICORE DATA DMC71402 CCL A93/CA/0122
