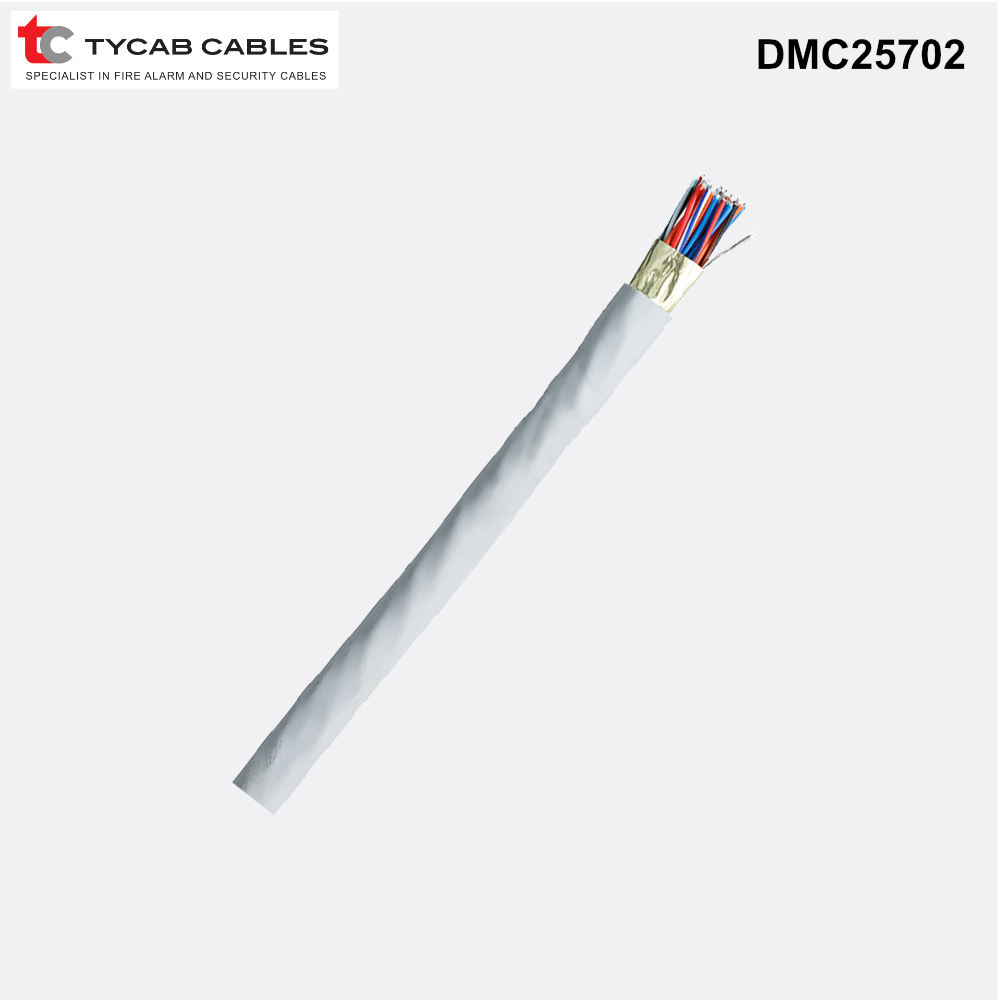

DMC25702 - 25 Core 0.22mm Data Cable Screened Copper - 100, 250 or 500m

Features

• 25 core 0.22mm screened
• V75 PVC insulated RS232
• Applications - Data Communication, Interface Cable
• Available 100m, 250m or 500m drums

Specs

25 core 7/.2 pcw v75 insulated Aluminium / Polyester tape screened including a 7/.2 tinned drain wire V75c PVC sheathed.
AUSTEL A93/CA/0123 Extra-low voltage use, not for mains connection.

Construction

Conductor: 7 strands of 0.2mm nom. Annealed Copper to AS1125 drawn from Class 110A copper to AS1574.
Max. D.C. resistance at 20C : 89.0 ohms / klm.

Insulation: Coloured P.V.C to AS3808 type V75.
Nominal Diameter : 1.15 mm.
Nom. Wall Thickness: 0.26 mm.

Lay Up: 25 cores twisted.
1.Red
2.Blue
3.Green
4.Yellow
5.White
6. Black.
7. Brown
8. Violet
9. Orange
10. Pink
11. Tan
12. Grey
13. Red/Blue
14. Red/Green
15. Yellow/Red
16. White/Red
17Red/Black
18. Red/Tan
19. Yellow /Blue
20. White/Blue
21.Blue / Black
22. Orange/Blue
23. Blue/ Green
24. Grey /Blue
25. Yellow/Green

Screen: Aluminium / Polyester tape screen in contact along its length with a 7/.2 TACW drain wire.

Sheath: Coloured P.V.C. to AS3808 type 4V75
Nominal Diameter: 8.8 mm.
Nom. Wall Thickness: 0.76 mm.

Identification: printed on sheath at approx.. 1M intervals: “TYCAB AUSTRALIA MULTICORE DATA DMC25702 CCL A93/CA/0123”
