Shuttle

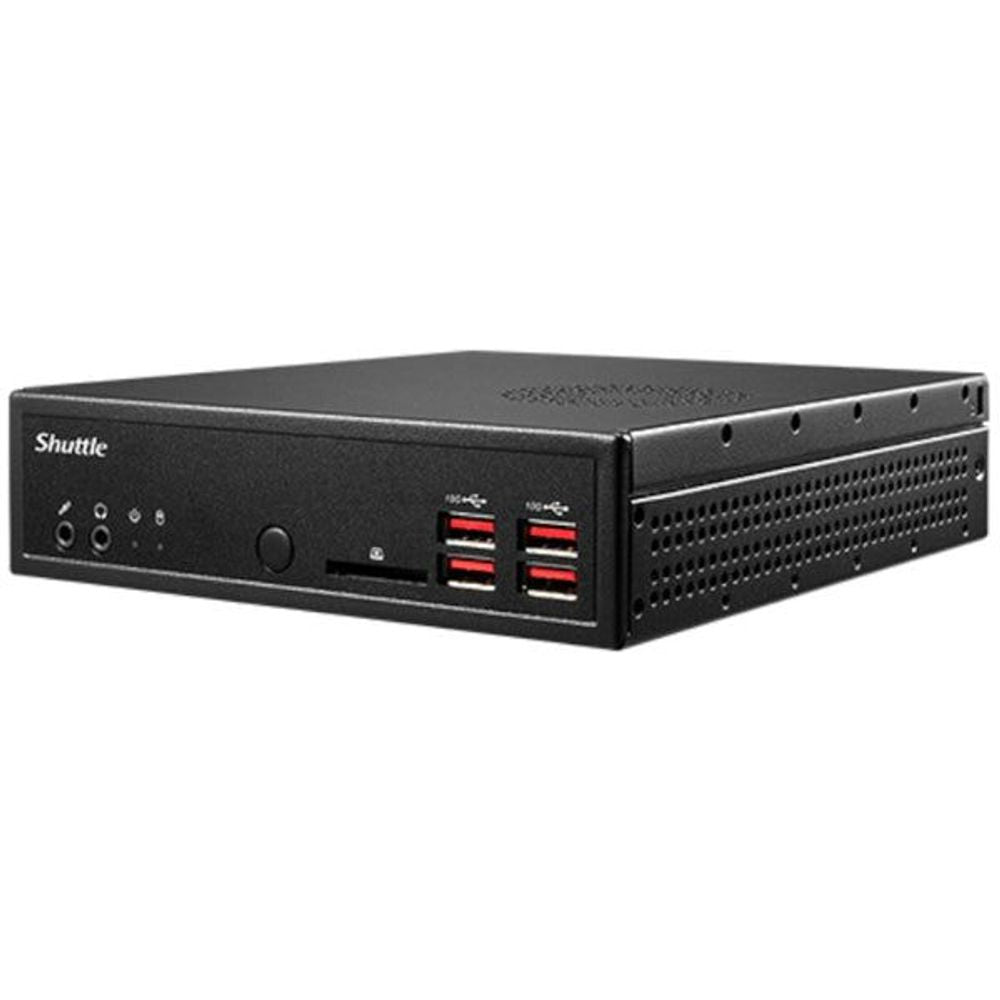

DH32U7 - Shuttle DH32U7 i7-1165G7 4x HDMI Barebones PC

DH32U7 - Shuttle DH32U7 i7-1165G7 4x HDMI Barebones PC

DH32U7

$2,244.00 NZD
$2,244.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Overview This high-performance Tiger Lake-U-based small form factor computer combines miniature dimensions with decent computing power and rich connectivity for diverse vertical applications that required multi-tasking, multi-media streaming and productivity. Shuttle DH32U packs Intel’s 11th generation Core processors with the built-in Iris Xe graphics and supports high-speed 3200Mhz DDR4 memory allowing fast transmission bandwidth, doubling graphics performance, and better power efficiency. This model supports up to 4 independent displays via its four native HDMI outputs, with 4K resolution at 60Hz refresh rate to make it ideal for deployment in presenting high quality contents in the central control room, video conferencing and multi-display applications.

Features

  • DH32U
  • Intel Tiger lake-U i7-1165G7 CPU
  • 2x DDR4 SODIMM (max 64GB)
  • 4x HDMI
  • 4x USB3.2
  • 1x RS232/422/485
  • 1x RS232
  • 2x GbE

Specifications

Form Factor Shuttle 1.3L Chassis
Processor Intel Tiger lake-U i7 1165G7
Memory 2x 260 pin DDR4 SODIMM slots,32GB per DIMM (Max 64GB) Dual Channel DDR4 3200 Mhz
Video Output HDMI 2.0b x 4 quad independence video output 4K/2K playback (Dual channel memory recommended) Support EDID Emulation Function(DH32UE series only)
Audio Realtek ALC662/897/888S 2 channel High Definition Audio
Ethernet Intel i211*2 100Mb/s and 1Gb/s operation Support Wake-On-LAN function
Onboard Connectors 1x SATA power connector 2x 4 pin fan connectors 1x Auto power on header 1x VGA 1x RS232 1x RS232/422/485 1x External 4 pin header (Power/Clear/CMOS/5V/GND
Front Panel 4x USB 3.2 Gen2 ports 1x Microphone-In 1x Earphone-Out 1x Power-On button 1x Power LED 1x HDD LED 1x SD Card reader
Back Panel 2x RJ45 Gigabit LAN port 4x HDMI port 4x USB 3.2 Gen1 ports 1x RS232 1x RS232/422/485 1x External power on/Clear CMOS header 1x Kensington lock 2x Wireless Antenna fixture 1x DC in
Drive Bays 1x 2.5" HDD / SSD bay
Dimensions 190(L) x 165(W) x 43(H) mm
Power 90W Power Adapter Input:100- 240V AC Output: 19V 4.7A DC
Accessories XPC Multilanguage Quick User Guide XPC DVD Driver VESA mount Power cord Screws
Expansion Slot 1x M.2 2280 Type M key socket 1x M.2 2230 Type E key socket
OS Support Windows 10 64 bit O.S Linux
Graphics Intel Xe DG1 GPU Execution Units (EUs) Celeron/Pentium/I3:48 EUs I5: 80 EUs I7: 96 EUs
36 Month Return to Base Warranty
