Dahua

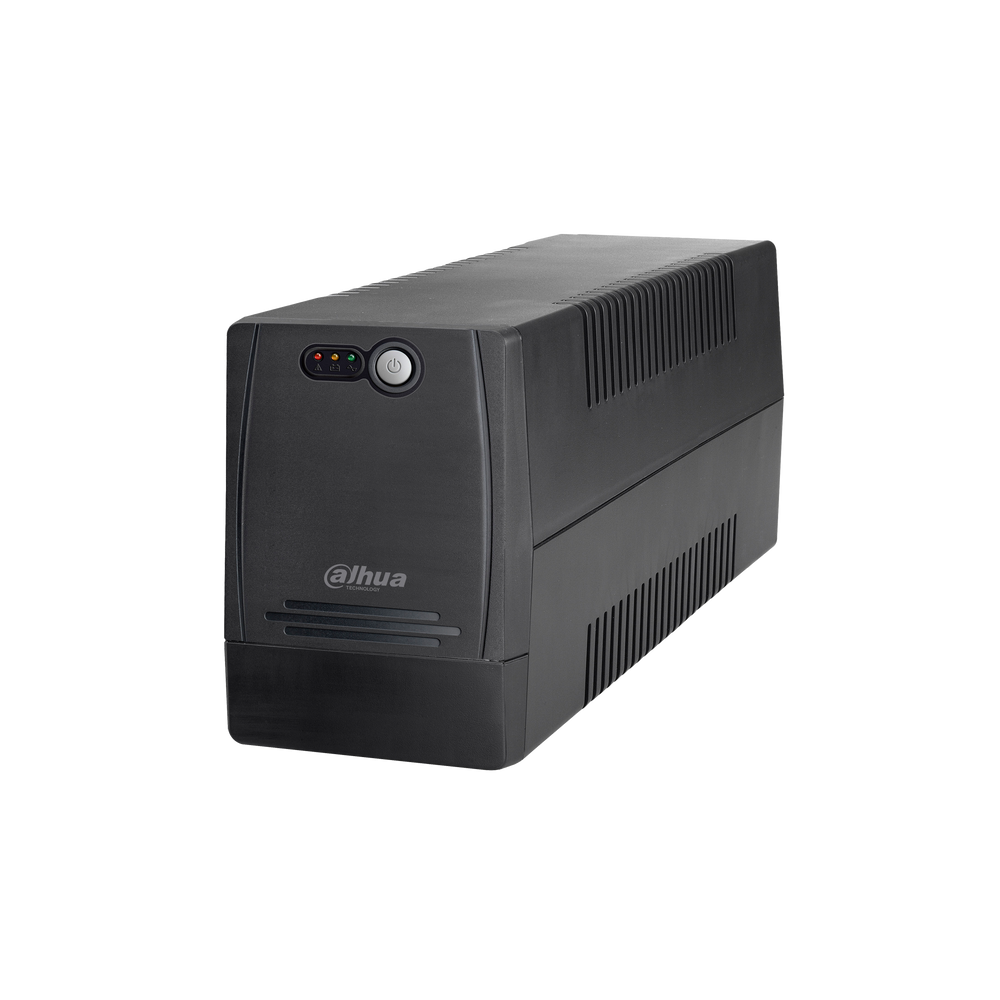

DH-PFM350-360 - Dahua 600VA/360W Line-interactive UPS

DH-PFM350-360 - Dahua 600VA/360W Line-interactive UPS

DH-PFM350-360

$142.00 NZD
$176.70 NZD $142.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Features

PFM350-360

600VA/360W Line-interactive UPS

>Wide input voltage range: AC81~145V or AC140~290V, meet the requirements in different parts for electric network fluctuation.
>Boost and buck AVR for voltage stabilization.
>Off-mode charging, cold start function and full protection.
>Continuous power supply for preventing data loss.
>Compact size.
Specs
Model
 DH-PFM350-360
Plug type
 European
 British
 Australian
 Indian
 North American
Capacity
 600VA/360W
Input
Rated voltage
 220Vac~240Vac
 110Vac~120Vac
Voltage range
 140Vac~290Vac
 81Vac~145Vac
Rated frequency range
 50Hz or 60Hz
Power factor
 0.6
Output
Voltage
 220/230/240 VAC
 110/120 VAC
AC Voltage Regulation (Batt. Mode)
 ±10%
Frequency Range (Batt. Mode)
 50Hz or 60Hz ±1Hz
Transfer Time
 2-6ms
Waveform (Batt. Mode)
 Simulated sinewave
Battery
Battery type & number
 12 V/7 Ah x 1
Typical recharge time
 4 hours recover to 90% capacity
Charging voltage
 13.7V±1%
Indicators
Battery mode
 Green lighting
AC mode
 Green lighting
Alarm
Battery mode
 Sounding every 10 seconds
Low battery
 Sounding every second
Overload
 Sounding every 0.5 second
Fault
 Continuously sounding
Protection
Full protection
 Overload, discharge and overcharge protection
Environmental
Operating temperature
 0°C ~ +40°C (+32°F ~ +104°F)
Operating humidity
 0~90% RH(non-condensing)
Altitude range
 <1000m(3280.84ft)
Construction
Color
 Black
Noise level
 <40dB
Dimensions
 279mmx101mmx142mm(10.98"x3.98"x5.59")
Weight
 4.25kg(9.37lb)
