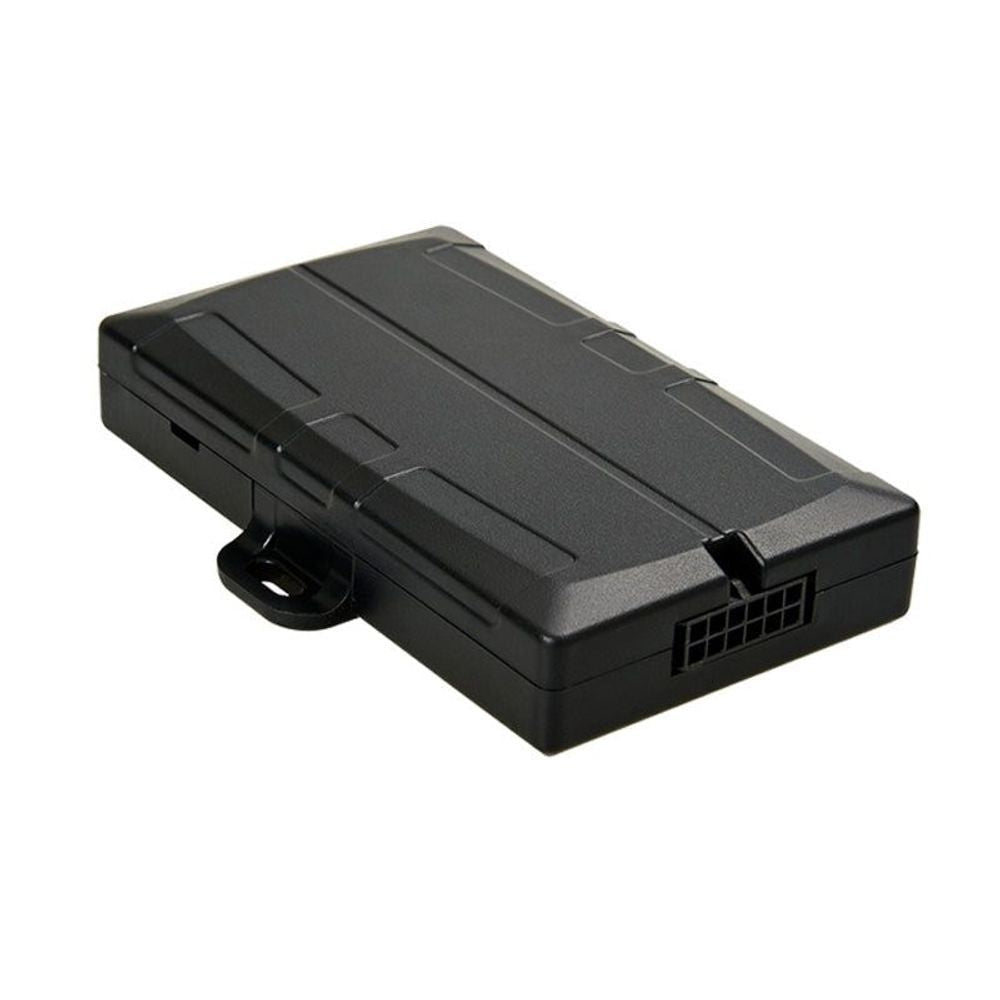

DART3-4G - Digital Matter Dart 3 4G/CAT M1 NB-IoT GPS Tracker - with 12 wire harness and Backup Battery

DART3-4G - Digital Matter Dart 3 4G/CAT M1 NB-IoT GPS Tracker - with 12 wire harness and Backup Battery

DART3-4G

$209.00 NZD
$209.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
The Digital Matter Dart3 is a Robust and affordable vehicle tracking device with inputs/outputs, remote immobilization for fleet management, driver ID, driver safety and behavior monitoring, theft recovery, and more.

The Dart3's features include: High Precision GPS/GLONASS tracking, Hardwired for permanent real time tracking, Internal battery incase of loss of power or tampering, 2 x digital inputs, 1 x switched ground digital output, 1 x ignition digital input, switched power out, is compatible with iButtons, RFID readers and a Wiegand interface for Driver ID plus many more!

Please Contact Our Sales Email for OEM Access or any support Queries and enquire about the Digital Matter Tracking platform options.

Need help selecting the right IoT solution?



Features
  • Real Time Tracking
  • Inputs/Outputs
  • Backup Battery
  • Driver ID Options
  • Driver Safety and Behavior
  • Remote Immobilization
  • Accident and Rollover Detection
  • Run Hour Monitoring
  • Preventative Maintenance Schedules
  • Theft Recovery
  • Advanced Geo-Fencing
  • Multiple Installation Options
Details
SKU DART3-4G
Cellular Module Nordic nRF9160 Modem operates on all major global LTE-M and NB-IoT bands (supports roaming across networks – roaming SIM required)
LTE-M B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B66
NB-IoT B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66
GNSS Module uBlox EVA-M8Q
Constellation Concurrent GPS / GLONASS / Galileo
Tracking Sensitivity -167dBM industry-leading tracking performance
Location Accuracy ~2.0m CEP, 50%, 24 hours static, GPS, SBAS, -130dBm, > 6SVs
SIM Size Internal Micro 3FF SIM
Input Voltage 8-36V DC (max)
Intelligent Power Management Device enters sleep mode when vehicle is inactive to prevent battery drain
Sleep Current <1mA
Backup Battery 200mAh LiPo internal backup battery
Dimensions 99 x 76 x 19 mm (3.90 x 2.99 x 0.75?)
Weight 83g
Housing ABS Polycarbonate Plastic. Non-branded housing for optional white-labeling.
Installation 12 wire harness / 1m length supplied as standard
Operating Temperature -30°C to +60°C (connected to external power)
Cellular Antenna Internal
GPS Antenna Internal
3-Axis Accelerometer 3-Axis Accelerometer to detect movement, acceleration, high G-force events, and more
Diagnostic LED Diagnostic LED indicates operation status
Analog Input 1 x Analog Input. 0-40V
Digital Inputs 3* x Digital Inputs with configurable pull-up/down
Digital Outputs 1 x Switched Ground Digital Output – 2A max
Ignition 1 x dedicated ignition Digital Input 0-48V DC
Switched Power Out 3-5Vout
Max current 500mA
TTL Interface Serial interface used to connect a Digital Matter RFID reader for Driver ID
Wiegand Enables easy integration with a variety of Driver ID card types and readers or keypads
1-Wire® or iButton® 1-Wire® or iButton® can be used to read Driver ID tags. Readers available to suit multiple card formats.
    Details
    Contains DART Tracker, 12 Wire Harness





    Specifications





    Details
    SKU DART3-4G
    Cellular Module Nordic nRF9160 Modem operates on all major global LTE-M and NB-IoT bands (supports roaming across networks – roaming SIM required)
    LTE-M B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B66
    NB-IoT B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66
    GNSS Module uBlox EVA-M8Q
    Constellation Concurrent GPS / GLONASS / Galileo
    Tracking Sensitivity -167dBM industry-leading tracking performance
    Location Accuracy ~2.0m CEP, 50%, 24 hours static, GPS, SBAS, -130dBm, > 6SVs
    SIM Size Internal Micro 3FF SIM
    Input Voltage 8-36V DC (max)
    Intelligent Power Management Device enters sleep mode when vehicle is inactive to prevent battery drain
    Sleep Current <1mA
    Backup Battery 200mAh LiPo internal backup battery
    Dimensions 99 x 76 x 19 mm (3.90 x 2.99 x 0.75?)
    Weight 83g
    Housing ABS Polycarbonate Plastic. Non-branded housing for optional white-labeling.
    Installation 12 wire harness / 1m length supplied as standard
    Operating Temperature -30°C to +60°C (connected to external power)
    Cellular Antenna Internal
    GPS Antenna Internal
    3-Axis Accelerometer 3-Axis Accelerometer to detect movement, acceleration, high G-force events, and more
    Diagnostic LED Diagnostic LED indicates operation status
    Analog Input 1 x Analog Input. 0-40V
    Digital Inputs 3* x Digital Inputs with configurable pull-up/down
    Digital Outputs 1 x Switched Ground Digital Output – 2A max
    Ignition 1 x dedicated ignition Digital Input 0-48V DC
    Switched Power Out 3-5Vout
    Max current 500mA
    TTL Interface Serial interface used to connect a Digital Matter RFID reader for Driver ID
    Wiegand Enables easy integration with a variety of Driver ID card types and readers or keypads
    1-Wire® or iButton® 1-Wire® or iButton® can be used to read Driver ID tags. Readers available to suit multiple card formats.
