Dahua

Dahua - HD-CVI Video Converter

Dahua - HD-CVI Video Converter

DH-TP2105

$86.85 NZD
$129.00 NZD $86.85 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

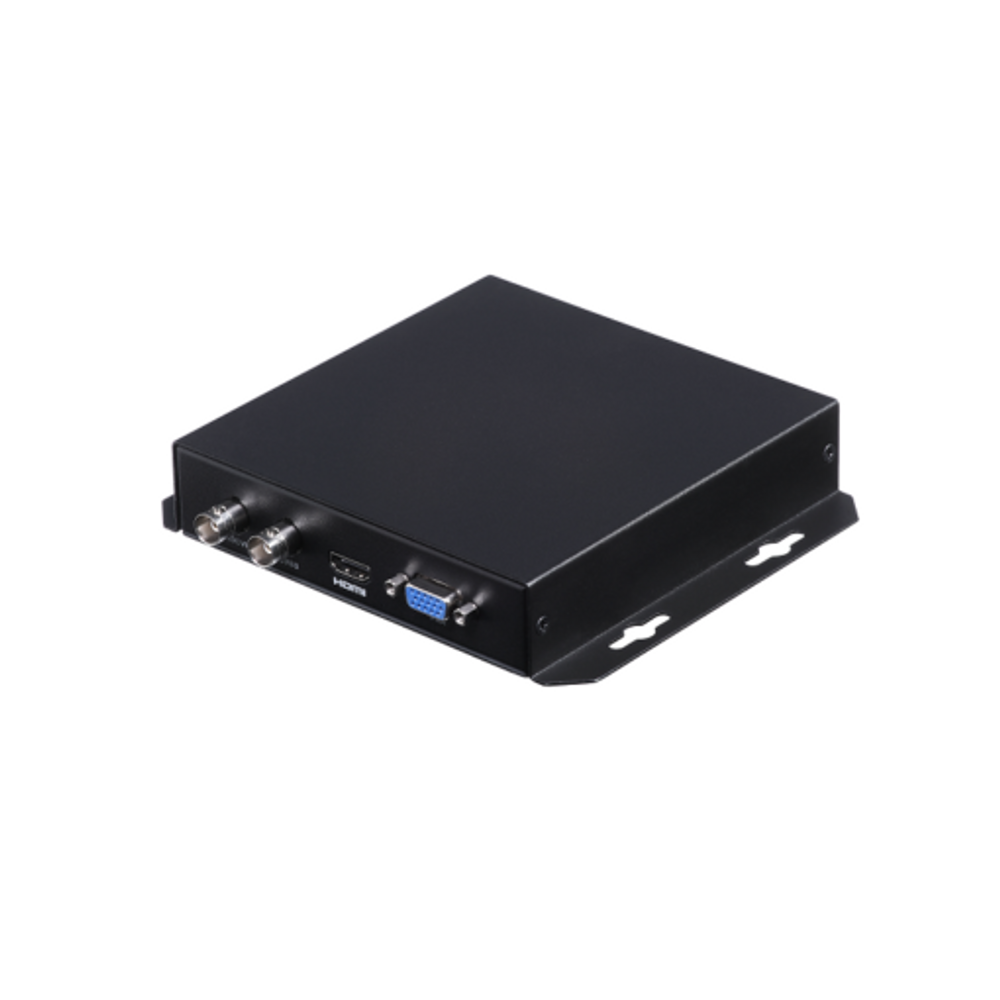

Dahua DH-TP2105 HDCVI to – HDCVI / Analogue / VGA / HDMI – Video Converter

Features :-

  • Self-adaptive output HDCVI, HDMI, VGA, CVBS signal
  • Lossless real time non-compression transmission
  • Support 2 dial switches and indicate 4 Baud rate: 2400b/s, 4800b/s, 9600b/s and 115200b/s
  • Fully enclosed dust-proof design
Technical Specification
Model DH-TP2105
Physical Port
Interface 1*RS485

Input: 1*HDCVI (BNC)

Output: 1*HDCVI (BNC), 1*CVBS (BNC), 1*HDMI, 1*VGA
Dial Switch 2 dial switch indicate 4 Baud rates: 2400b/s, 4800b/s, 9600b/s, 115200b/s
Other
Input Transmission Distance 1080p/720p: 75-5 coaxial support 100m
HDCVI Output Transmission Distance 1080p/720p: 75-5 coaxial support 100m
Indicator Video , power , data indicator
Power DC12V 1A
Power Consumption ≤8W
Working Temperature -10ºC ~55ºC
Humidity 10%~90%
Weight 200g
Dimension 162mm×136.4mm×30mm
Installation Wall mount
