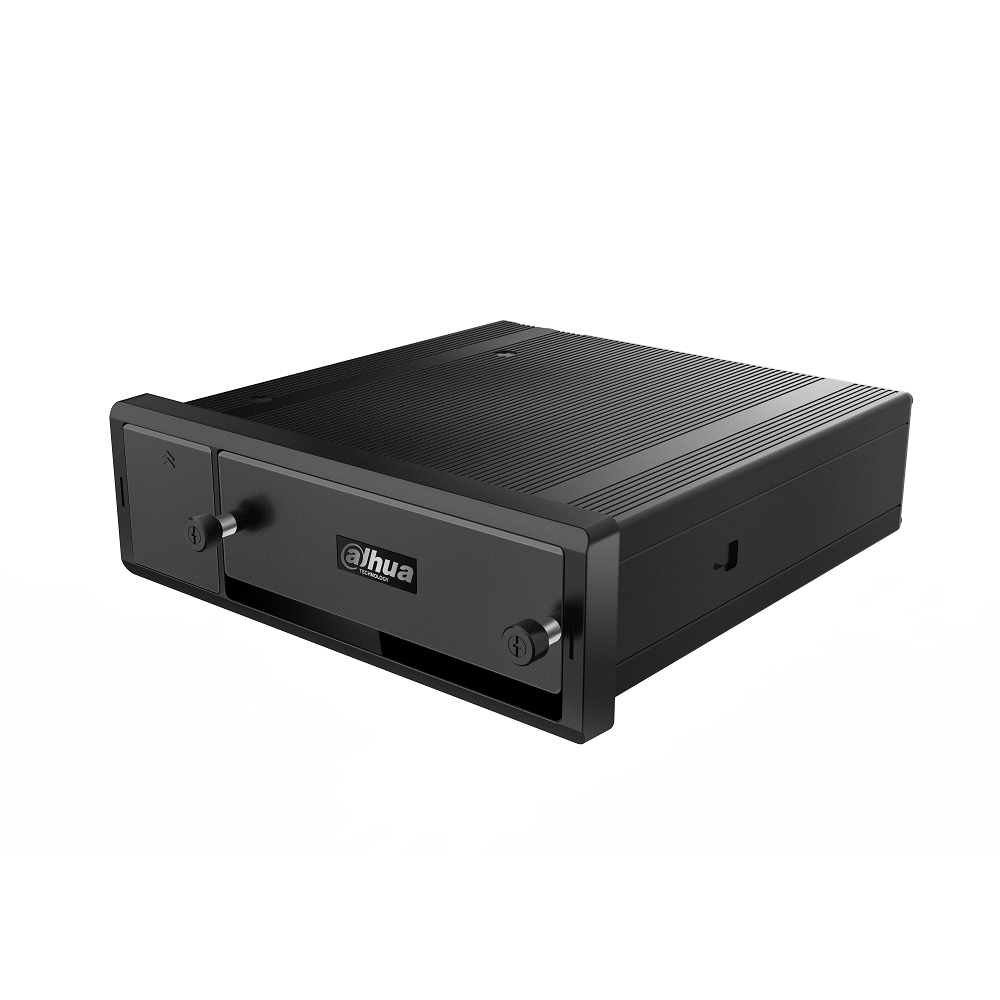

Dahua DHI-MNVR4104-GFW 4MP Mobile / Vehicle Small Form-Factor NVR – Network Vide

Dahua DHI-MNVR4104-GFW 4MP Mobile / Vehicle Small Form-Factor NVR – Network Video Recorder – with HDMI, VGA & TV Outputs – with 1 x 2.5? SATA HDD Slot (Up to 2TB) + 1 x SD Slot (Up to 256GB) – Built-in GPS + 4G + WiFi Modules

Dahua DHI-MNVR4104-GFW 4MP Mobile / Vehicle Small Form-Factor NVR – Network Video Recorder – with HDMI, VGA & TV Outputs – with 1 x 2.5? SATA HDD Slot (Up to 2TB) + 1 x SD Slot (Up to 256GB) – Built-in GPS + 4G + WiFi Modules

Features :-

• Supports 4 channels POE IP cameras input
• Supports H.265 / smart H.265 video compression
• Supports 4 channels 4MP realtime recording
• VGA, TV, HDMI simultaneous video output
• Supports 1 HDD, 3 USB2.0
• Aviation connectors adopted
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Video & audio

• 4 x RJ-45 PoE 10 100Mbps for connecting up to 4 IP cameras
• Supported video resolution: 4MP
• Recording format and compression: H.265, H.264
• Monitor outputs: 1 x HDMI, 1 x VGA, 2 x TV; 800 x 600 resolution
• 1 x audio input, 1 x audio output; compression G.711A, G.711U, PCM
• Remote access from Android and iOS mobile devices

Record

• Hard disk storage, 1 slot, up to 2 TB / disk; SATA interface, disk sleep support when idle
• USB supports USB and internal HDD backup
• Up to 100 Mbps
• Search function during playback: by date and time, alarm list / li>

Image processing

• Motion detection (only for supported cameras, detection by the camera itself): 396 zones (PAL: 22×18, NTSC: 22×15)
• Alarm in case of video loss
• Triggering an alarm in case of malicious shading of all or part of the camera view
• Summary view of all connected cameras: 1/4 combination
• Recording modes manual / timer recording / alarm recording

Ethernet

• 1 x LAN 10/100Mbps
• DDNS and DHCP support allows easy connection of the device and its remote monitoring over the Internet even for subscribers without a fixed IP address
• Support for protocols and services: TCP / IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server

Physical properties

• 3 x USB 2.0 ports to connect external drive and export backup records
• I/O: 9 inputs, 2 outputs
• 3 x RS-232 for communication with PC and keyboard
• 2 x RS-485 for PTZ control
• 1 x audio input, 1 x audio output
• SD card slot up to 128GB
• Power supply 6V – 36V DC adapter, power consumption without disk <10.2 W
• Operating temperature -30 ° C to +70 ° C
• Dimensions: 190 x 180 x 50 mm
