Dahua

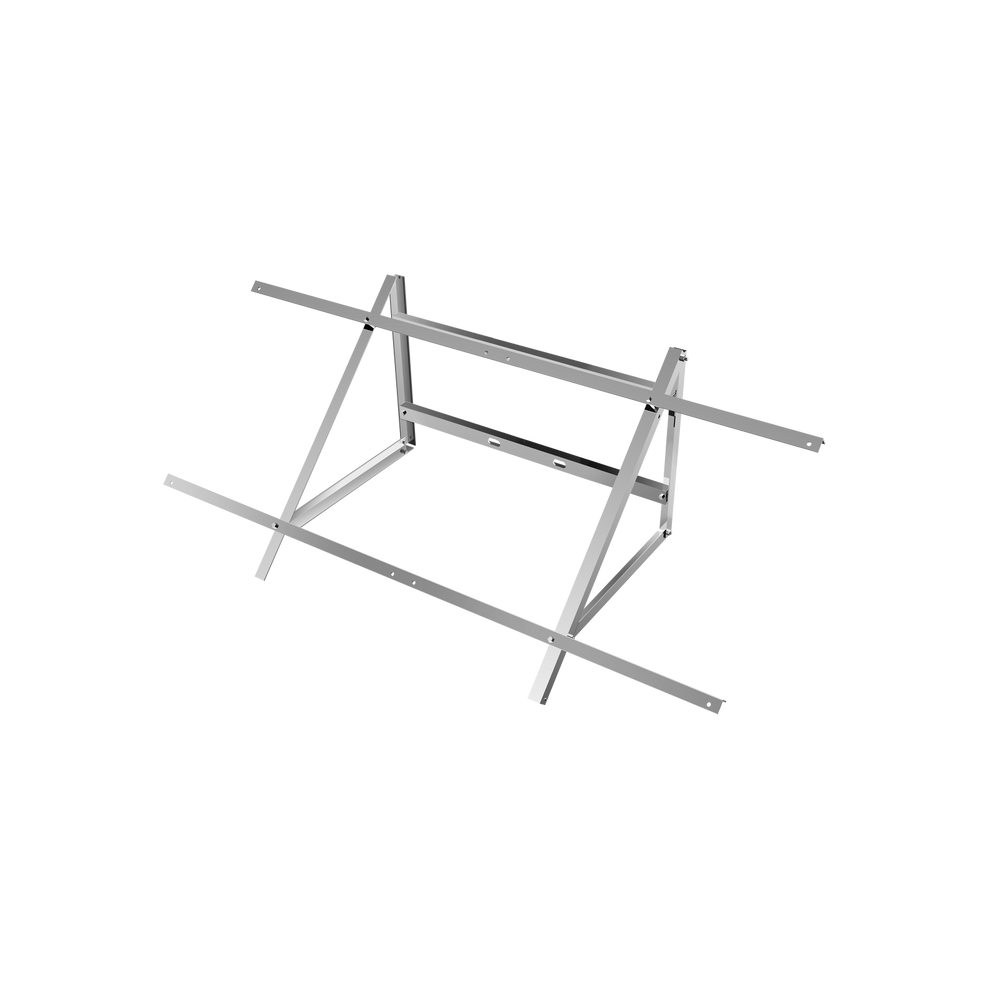

Dahua - DH-PFM376-D - Solar module bracket

Dahua - DH-PFM376-D - Solar module bracket

DH-PFM376-D

$340.23 NZD
$449.00 NZD $340.23 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock

>Q235 angle steel, stable and reliable structure
>Hot-dip galvanized surface treatment, good anti-corrosion effect



Model
 DH-PFM376-A
 DH-PFM376-B
 DH-PFM376-C
General
Material
 Q235
Plating
 Galvanized
color
 Silver gray
Load bearing
 100kg(220.5lb)
Salt spray test
 ≥30days
Installation diameter
 Ø170mm~ Ø 220mm(Ø 6.69” ~ Ø8.66”)
Installation latitude
 0~60° (5º/set)
Installation solar module number
 6pcs
 4pcs
 2pcs
Dimension
(with package)
 3100mmx260mmx260mm
(122.05”x10.24”x10.24”)
 2200mmx260mmx260mm
(86.61” x10.24”x10.24”)
 2200mmx260mmx260mm
(86.61” x10.24”x10.24”)
Weight (with package)
 115kg(253.5lb)
 85kg(187.4lb)
 52kg(114.6lb)
Package Information
 U bolt *4
M8x20 screw *24
M10x25 screw *12
M10x60 screw *16
Steel Cannoli Form *8
 U bolt *4
M8x20 screw *16
M10x25 screw *12
M10x60 screw *16
Steel Cannoli Form *8
 U bolt *2
M8x20 screw *8
M10x25 screw *6
M10x60 screw *8
Steel Cannoli Form *4
