TDL-8FB – Trojan 8 Way 3 Amp Fuse Board, AC & DC Power Supplies

TDL-8FB – Trojan 8 Way 3 Amp Fuse Board, AC & DC Power Supplies

TDL-8FB

$88.00 NZD
$88.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Features

TDL 8FB – 8 Way Fuse Board

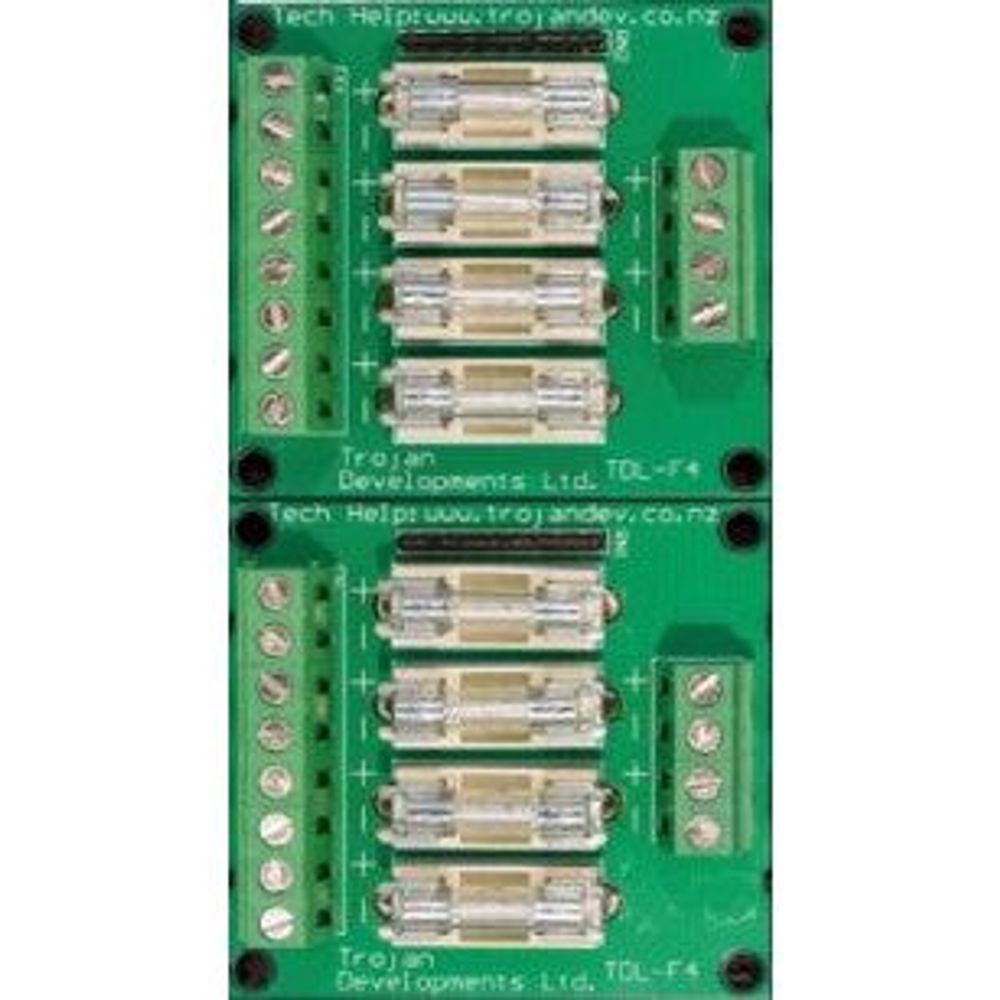

8 Way 3 Amp Fuse Board The 8 Way Fuse Board has 2 sets of 4 fuses that can be separately fed or linked together to give you 8 individual 3amp fused outputs. Each fuse has an associated LED to indicate that the fuse is operative. The LED illuminates red for normal positive 12Vdc operation, green for negative polarity and amber for up to24Vac supply. The board can be used for the protection of 24Vac cameras too but the fuses need to be changed to 1amp ( and as noted earlier ) the LED will illuminate amber. This unit also fits on the TDL Mounting Base system to ensure a neat and tidy installation.

Features

  • 8 separate fused outputs
  • The fuses are field replaceable
  • Maximum fuse rating 5 Amps
  • Modular unit that can be used to protect a number of devices
  • Designed to be used as an interface between power supplies and field devices
  • LED’s to indicate fuse status
  • Raising clamp type terminals will not damage cables and can accommodate up to a 2.5mm2 cable
  • The board can be used for the protection of 24Vac cameras

Specifications

  • 8-Way Fuse Board
  • Fuse size: 20mm x 5mm
  • Terminals for positive and negative outputs - the positive outputs are fused
  • Suitable for AC and DC power supplies
  • Maximum supply current per 4-way fuse board is 20 Amps (40 Amps Total)
  • Maximum output current is 5 Amps
  • Dimensions: 110mm (w) x 60mm (h) x 23mm (d)





      Specs





      TDL 8FB – 8 Way Fuse Board



      The 8 Way Fuse Board has 2 sets of 4 fuses that can be separately fed or linked together to give you 8 individual fused outputs. Each fuse has an associated LED to indicate that the fuse is operative. The LED illuminates red for normal positive 12Vdc operation, green for negative polarity and amber for up to 24Vac supply.

      The board can be used for the protection of 24Vac cameras too but the fuses need to be changed to 1amp ( and as noted earlier ) the LED will illuminate amber.

      The board fits the TDL Mounting Base system, which makes installation very easy and tidy as it allows all cables to be run behind the PCB and covered by a cover that also has an area for labelling. They can be connected together with other boards to make up a complete system of relays, fuses, timers etc. The TDL Mounting Base also comes complete with fixing tape.

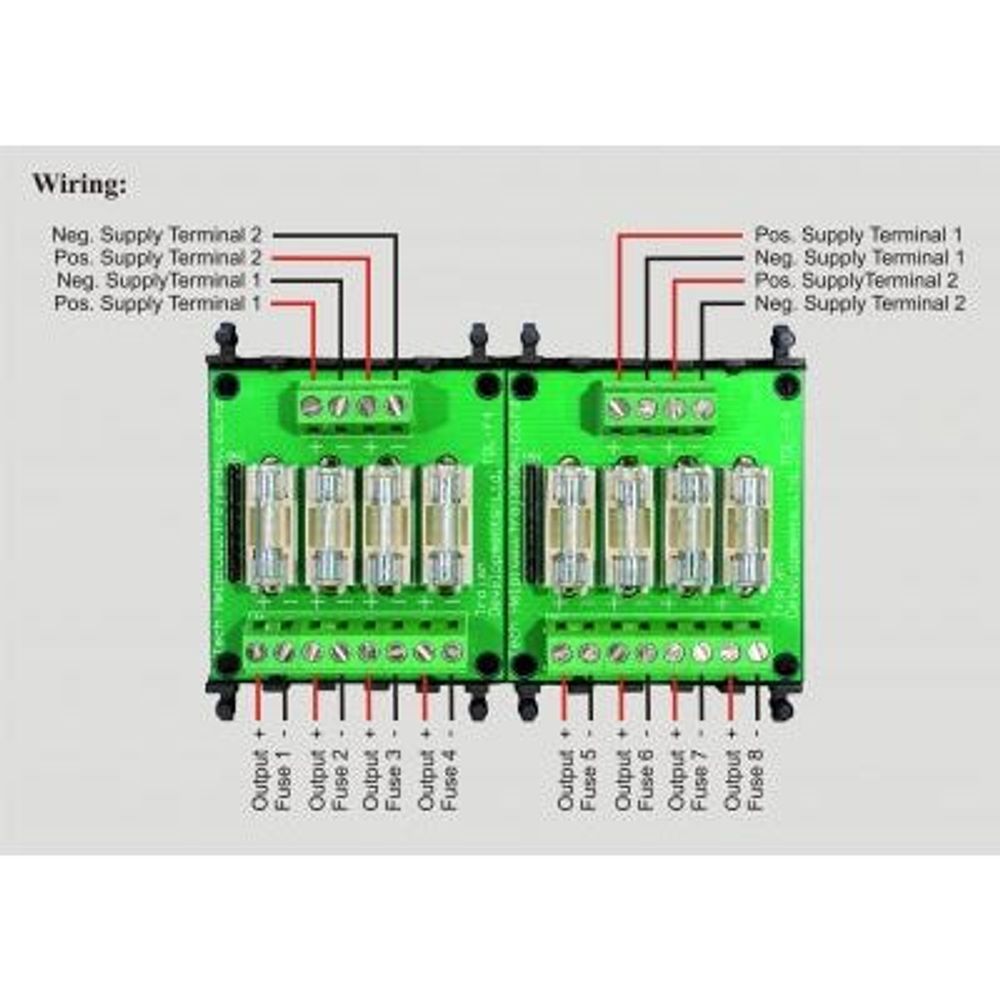

      TDL 4FB fuse board wiring

      Specifications

      • 8 separate fused circuits
      • Fuse size: 20mm x 5mm
      • Both sides of the fuse are connected to terminal blocks
      • Suitable for two individual power supplies
      • Maximum fuse rating value: 5amps
      • Diagnostic LED’s
      • Quality raising clamp PCB terminals (maximum cable size 2.5mm2
      • Snap-off V-cut for separation into 2 x 4 Way Fuse Boards
      • Dimensions: 110mm W x 60mm H x 23mm D
