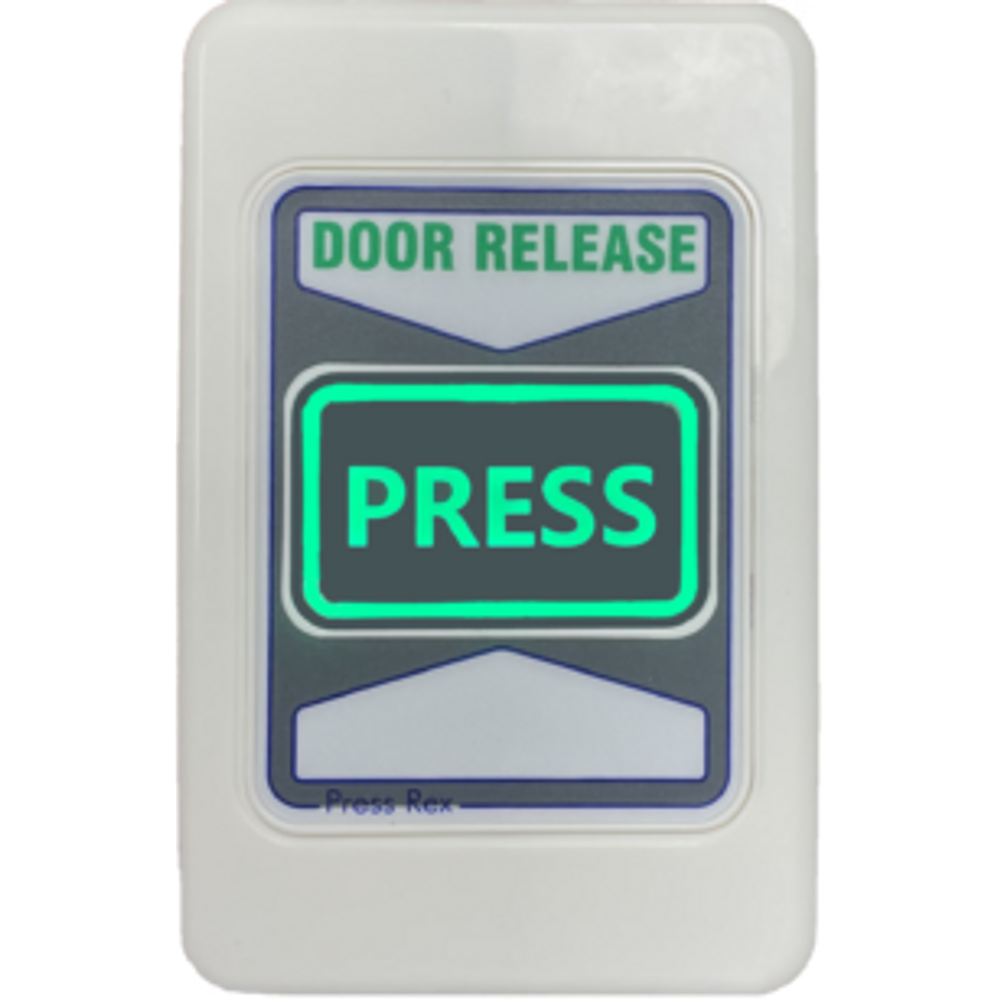

The Press Rex^®  (Press to Exit) has an illuminated silicone push button of a size that can be easily pressed and seen in areas of limited lighting. It also operates from 10 to 30Vdc.

Features

• Has a large tactile button to give the user good feed back that the button has been pressed.
• Durable surgical silicon button with embedded text.
• The button is backlit green and changes to a solid green upon activation.
• Built-in sounder to provide audible confirmation of operation.
• Easy to clean and fade resistant.
• Fits the optional vertical surround with the Em Cover for a full exit solution.
• Fits the vertical double flush box.



Specifications

• Single gang profile fits standard electrical flush box
• Power requirements 10 to 30Vdc - 100mA at 13.6 Vdc

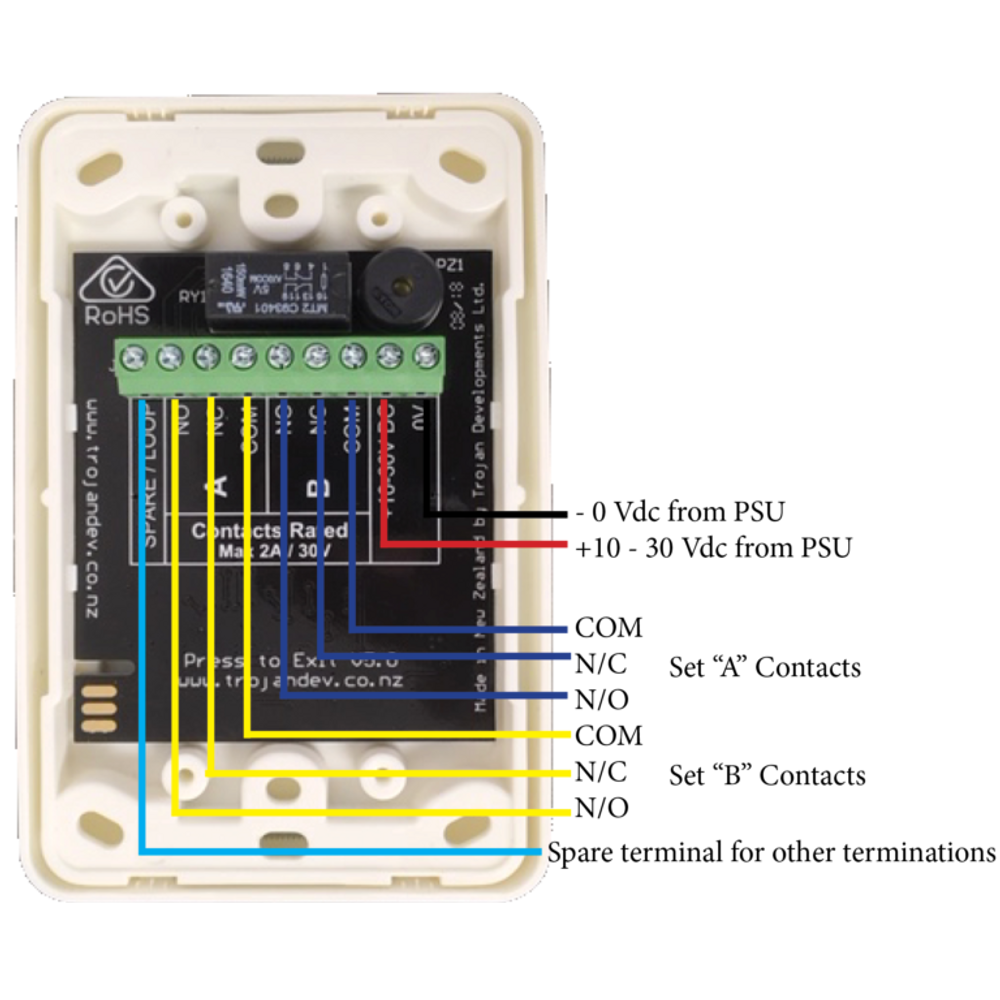

• 2 set of Clean N/O and N/C outputs
• The contacts are rated at 2 AMP 30Vdc
• The silicon button is backlit
• C-Tick, RCM, RoHS Certified
