Tycab

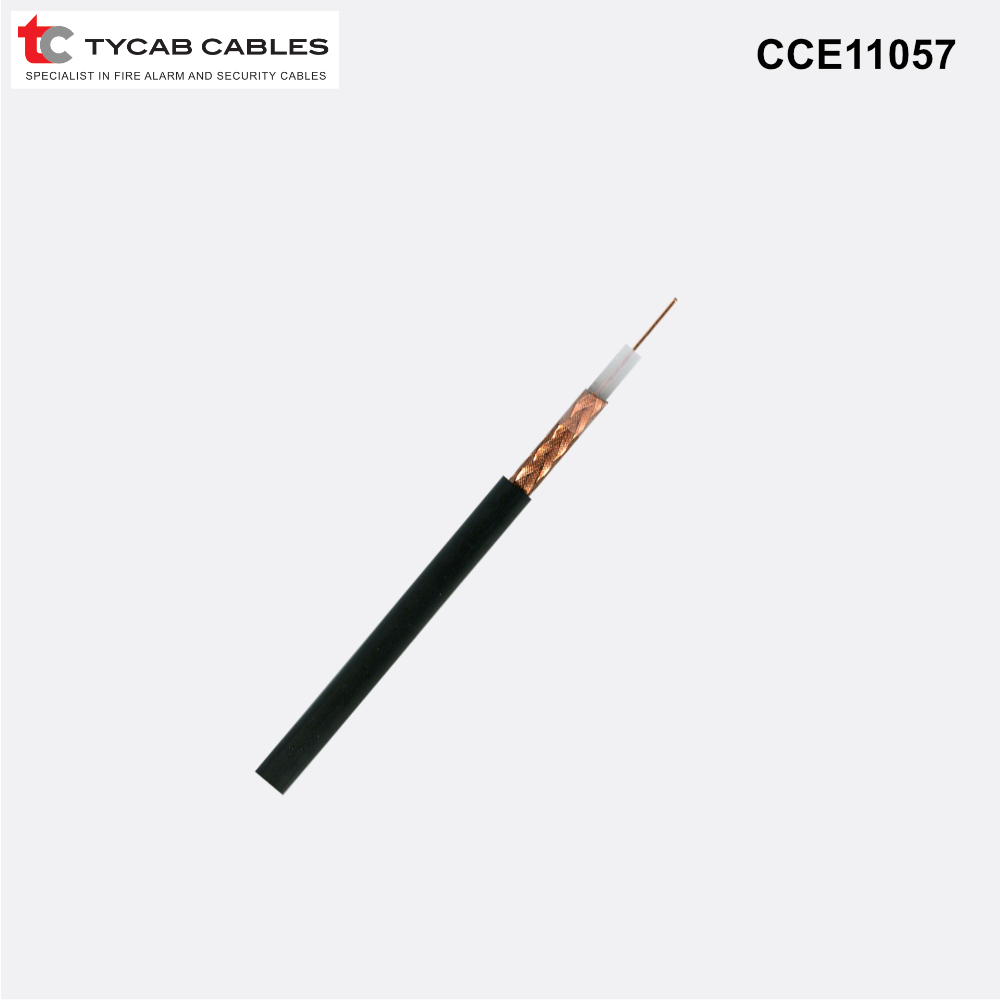

CCE11057-C - Tycab RG59 Coaxial Cable - 100 & 250m

CCE11057-C - Tycab RG59 Coaxial Cable - 100 & 250m

CCE11057-100-C

$199.50 NZD
$199.50 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Select Length

Low stock
Features

Includes:

  • RG59B/U 75 ohm Coaxial Copper Cable
  • Low-density Polyethylene Insulation


Applications
CCTV, Signal cable.

Specs

75 OHM Coaxial Cable. RG59B/U type plain annealed copper conductor solid polyethene insulation, PVC sheath.

Construction

Conductor: 1 strand of 0.57 mm Plain Annealed Copper to AS1125 drawn from Class 110A copper to AS1574.

Insulation: Solid Low-Density Polyethylene.
Nominal Diameter: 3.60 mm.
Nom. Wall Thickness: 1.50 mm.

Screen: Plain Annealed Copper Braid to a min. coverage of 94%.

Sheath: Coloured P.V.C
Nominal Diameter: 6.15 mm.
Nom. Wall Thickness: 0.80 mm.

Electrical Characteristics:
Typical Impedance: 75 ohms
Typical Capacitance at 1khz: 67 pF/m
Velocity of propagation ratio: 66 %
Attenuation at 200MHz typical : 16.1dB
