Cambium Networks

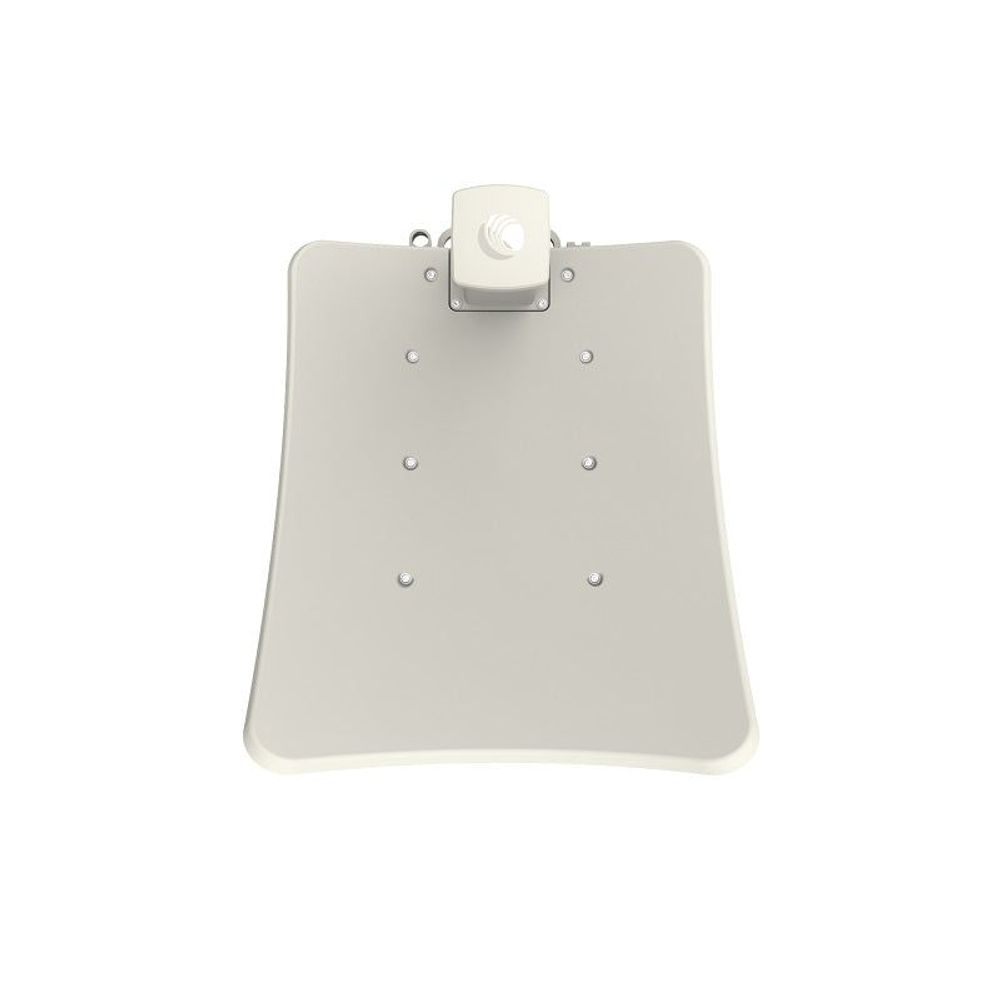

C600500D003 - Cambium 60GHz cnWave V3000 44.5 dBi 4-Pack Antenna Assembly Only

C600500D003 - Cambium 60GHz cnWave V3000 44.5 dBi 4-Pack Antenna Assembly Only

C600500D003

$491.00 NZD
$491.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
The Cambium 60GHz cnWave V3000 Antenna Assembly (C600500D003) is a 4-pack of 44.5dBi high-gain antennas with beamforming.


Features
  • 4-Pack of High Gain 44.5dBi antenna
  • Easy installation with auto-beamforming
  • 802.11ay technology with Terragraph certification
  • Designed for use with the V3000 Client Node (C600500C024)
Details
Manufacturer's Code C600500D003A
Frequency Range 57 to 66 GHz in a single SKU
Gain 44.5 dBi
Beamforming Scan Range +/- 2º azimuth, +/- 1º elevation
Beam Width 0.8º
Environmental IP66/67
Temperature -40ºC to 60ºC
Weight 4.7 kg
Dimensions W x H x D 421 x 347 x 349 mm
Wind Survival 200 km/h



Details
Antenna (4) 44.5dBi Assembly
Client Node Sold Separately
Mounting Hardware Sold Separately





Specifications





Details
Manufacturer's Code C600500D003A
Frequency Range 57 to 66 GHz in a single SKU
Gain 44.5 dBi
Beamforming Scan Range +/- 2º azimuth, +/- 1º elevation
Beam Width 0.8º
Environmental IP66/67
Temperature -40ºC to 60ºC
Weight 4.7 kg
Dimensions W x H x D 421 x 347 x 349 mm
Wind Survival 200 km/h
View full details
