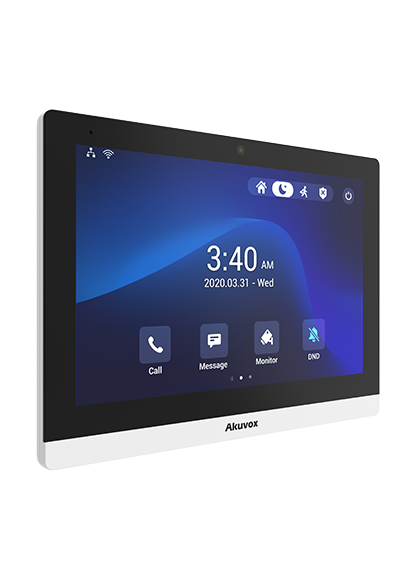

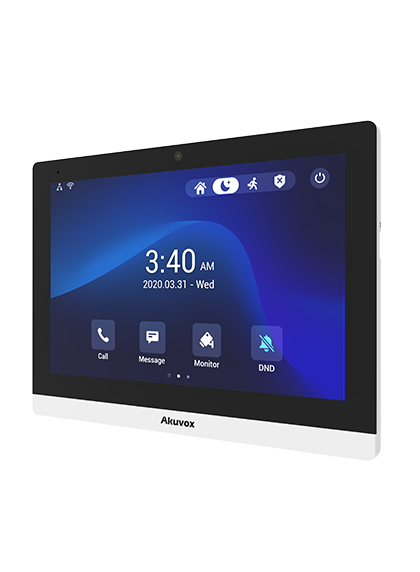

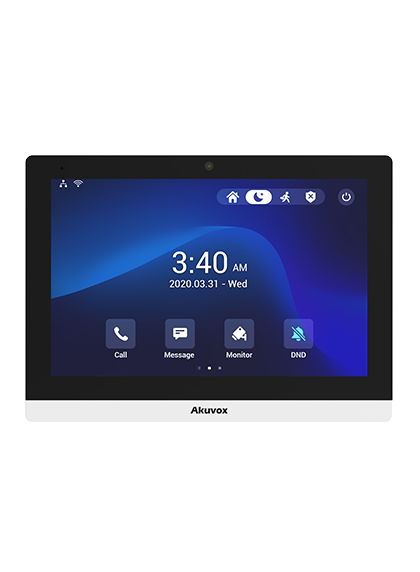

C319S - Akuvox 10" Android Indoor Monitor Standard version

C319

Smart Indoor Monitor for Residents of All Ages

Akuvox C319 is a 10” Android indoor monitor with smart intercom features for people of all ages, an intuitive UI that even kids learn to use quickly, the capability of integrating telecare pendants for older individuals, and a built-in voice assistant for young people.

Product Image	Part No.	Description
	C319S	Standard version
	C319A	Standard version + WiFi + Bluetooth + Camera

Specs

C319 Specification

• Physical & Power

  Front panel: Plastic

  RAM / ROM: 2GB / 8GB

  Display: 10 Inch IPS LCD

  Screen: 10 Inch capacitive touch screen

  Wi-Fi: IEEE802.11 b/g/n, @2.4GHz

  BLE: Support BLE 4.2

  Camera: 1MP camera, CMOS

  Memory slot：1 Micro SD slot

  RS485 port: Support

  Relays out: 2

  Bell in: 1

  IO: 8

  Microphone: -26dB

  Speaker: Dual speakers, 4Ω / 3W

  Ethernet ports: 1xRJ45, 10/100Mbps adaptive

  802.3af Power-over-Ethernet

  12V DC connector (if not using PoE)

  Tamper resistant: Support

  Installation: Wall-mounted & Desktop

  Dimension: 251x182.5x29.75mm

  Working Humidity: 10~90%

  Working Temperature: -10°C ~ +45°C

  Storage Temperature: -20°C ~ +70°C

• Touch Screen Display

  Display Mode: Normally black, Transmissive

  LCD Size: 10inch (Diagonal)

  Aspect Ratio: 16:10

  Resolution: 1280x800

  Contrast ratio: 900:1

  Luminance: 350 cd/m²

  Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° Lower

  Touch Screen: Projected capacitive

• Audio

  SIP v1 (RFC2543), SIP v2 (RFC3261)

  Narrowband audio codec: G.711a, G.711μ, G.729

  Broadband audio codec: G.722

  DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

  Echo Cancellation

  Voice Activation Detection

  Comfort Noise Generator

  Automatic Gain Control

• Video

  Streaming formats: H.263 & H.264

• Networking

  Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP

• Deployment & Maintenance

  Auto-Provisioning

  Web management portal

  Web-based packet dump

  Configuration backup / restore

  Firmware upgrade

  System logs (include door access logs)

• Voice Assistant

  Voice pickup distance up to 5 meters

  Voice recognition accuracy up to 95%

  Privacy protection with native voice data

  Support English

• Application Scenario

  Villas

  Apartment complexes

  Home automation systems

  Modern interiors
