Cambium Networks

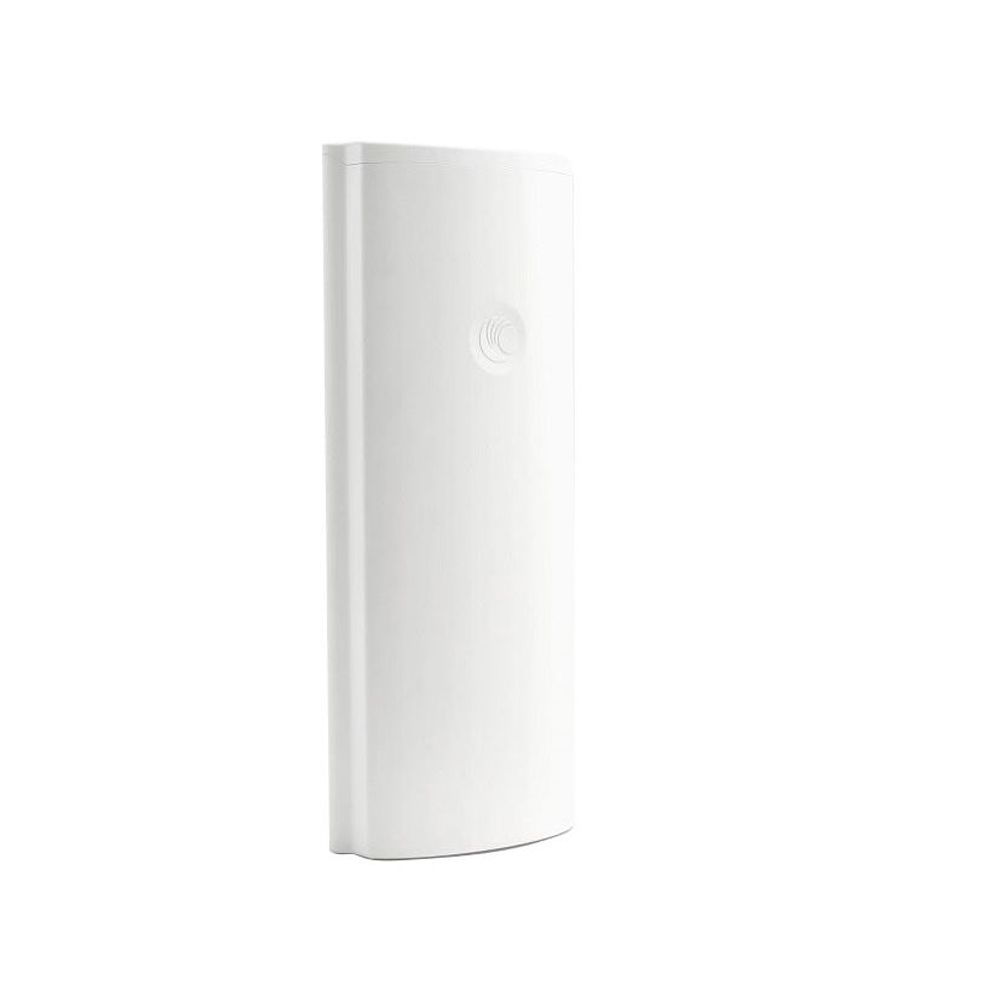

C050910D301 - Cambium ePMP 5GHz 4x4 MU-MIMO Sector Antenna for ePMP 3000 Access Point
C050910D301 - Cambium ePMP 5GHz 4x4 MU-MIMO Sector Antenna for ePMP 3000 Access Point
SKU:C050910D301
Regular price
$651.00 NZD
Regular price
Sale price
$651.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
Cambium ePMP 5GHz 4x4 MU-MIMO Sector Antenna for ePMP 3000 Access Point. Cambium Networks has deployed more than five million radios around the world achieving unparalleled degrees of scalability.
Continuing the tradition of designing and manufacturing industry leading antenna solutions, the ePMP 3000 4X4 sector antenna encompasses all the key differentiations of the Cambium Antenna line and adds 4X4 Multi User MIMO Capability.
Designed to work in 5 GHz spectrum and 90 degree coverage, the antenna is an integral part of the ePMP 3000 Access Point and allows for Multi User MIMO Operation.
Continuing the tradition of designing and manufacturing industry leading antenna solutions, the ePMP 3000 4X4 sector antenna encompasses all the key differentiations of the Cambium Antenna line and adds 4X4 Multi User MIMO Capability.
Designed to work in 5 GHz spectrum and 90 degree coverage, the antenna is an integral part of the ePMP 3000 Access Point and allows for Multi User MIMO Operation.
Features
- Frequency Re-use: Designed for ABAB channel re-use (two channels covering four sectors), the sector antenna has a minimum 30 dB front to back ratio over a wide rear facing aperture.
- Channel Flexibility: Consistent gain from 4.9 to 6.0 GHz allows the operator to select a channel anywhere in the band and achieve the expected performance.
- Consistent Coverage: Excellent null fi ll capabilities of the antenna allow for broad geographical coverage within a sector even near the base of the tower and the edges of the sector.
- Designed for the Installer: Small, compact design, integrated ePMP radio mount and GPS antenna integration.
- Predictable Performance: The sector antenna is integrated into Cambium Networks LINKPlanner. The 3D model shows coverage at all elevations and across the azimuth.
| Details | |
|---|---|
| Manufacturer's Product Code | C050910D301 |
| Frequency Range | 4.9GHz - 5.97GHz |
| Gain | 17dBi |
| Polarisation | 2X Horizontal, 2X Vertical |
| Horizontal Beamwidth | 70 degrees |
| Virtual Beamwidth | 6 degrees |
| Electrical Downtilt | -2 degrees |
| Front-to-Back Ratio | 30 dB |
| Connector Type | (4) RP-SMA |
| Hardware Tilt | -10 to +5 degrees |
| Dimensions | 594x157x110mm |
| Pole Mount Diameter | 50-100mm |
Â
| Details | |
|---|---|
| Pole Mount | Included |
Â
Â
Specifications
Â
Â
Cambium ePMP 5GHz 4x4 MU-MIMO Sector Antenna for ePMP 3000 Access Point. Cambium Networks has deployed more than five million radios around the world achieving unparalleled degrees of scalability.
Continuing the tradition of designing and manufacturing industry leading antenna solutions, the ePMP 3000 4X4 sector antenna encompasses all the key differentiations of the Cambium Antenna line and adds 4X4 Multi User MIMO Capability.
Designed to work in 5 GHz spectrum and 90 degree coverage, the antenna is an integral part of the ePMP 3000 Access Point and allows for Multi User MIMO Operation.
Click here for more information about the complete Point to Multi-Point product range for Cambium ePMP 3000.
Continuing the tradition of designing and manufacturing industry leading antenna solutions, the ePMP 3000 4X4 sector antenna encompasses all the key differentiations of the Cambium Antenna line and adds 4X4 Multi User MIMO Capability.
Designed to work in 5 GHz spectrum and 90 degree coverage, the antenna is an integral part of the ePMP 3000 Access Point and allows for Multi User MIMO Operation.
Click here for more information about the complete Point to Multi-Point product range for Cambium ePMP 3000.
Features
- Frequency Re-use: Designed for ABAB channel re-use (two channels covering four sectors), the sector antenna has a minimum 30 dB front to back ratio over a wide rear facing aperture.
- Channel Flexibility: Consistent gain from 4.9 to 6.0 GHz allows the operator to select a channel anywhere in the band and achieve the expected performance.
- Consistent Coverage: Excellent null fi ll capabilities of the antenna allow for broad geographical coverage within a sector even near the base of the tower and the edges of the sector.
- Designed for the Installer: Small, compact design, integrated ePMP radio mount and GPS antenna integration.
- Predictable Performance: The sector antenna is integrated into Cambium Networks LINKPlanner. The 3D model shows coverage at all elevations and across the azimuth.
| Details | |
|---|---|
| Manufacturer's Product Code | C050910D301 |
| Frequency Range | 4.9GHz - 5.97GHz |
| Gain | 17dBi |
| Polarisation | 2X Horizontal, 2X Vertical |
| Horizontal Beamwidth | 70 degrees |
| Virtual Beamwidth | 6 degrees |
| Electrical Downtilt | -2 degrees |
| Front-to-Back Ratio | 30 dB |
| Connector Type | (4) RP-SMA |
| Hardware Tilt | -10 to +5 degrees |
| Dimensions | 594x157x110mm |
| Pole Mount Diameter | 50-100mm |
| Details | |
|---|---|
| Pole Mount | Included |
