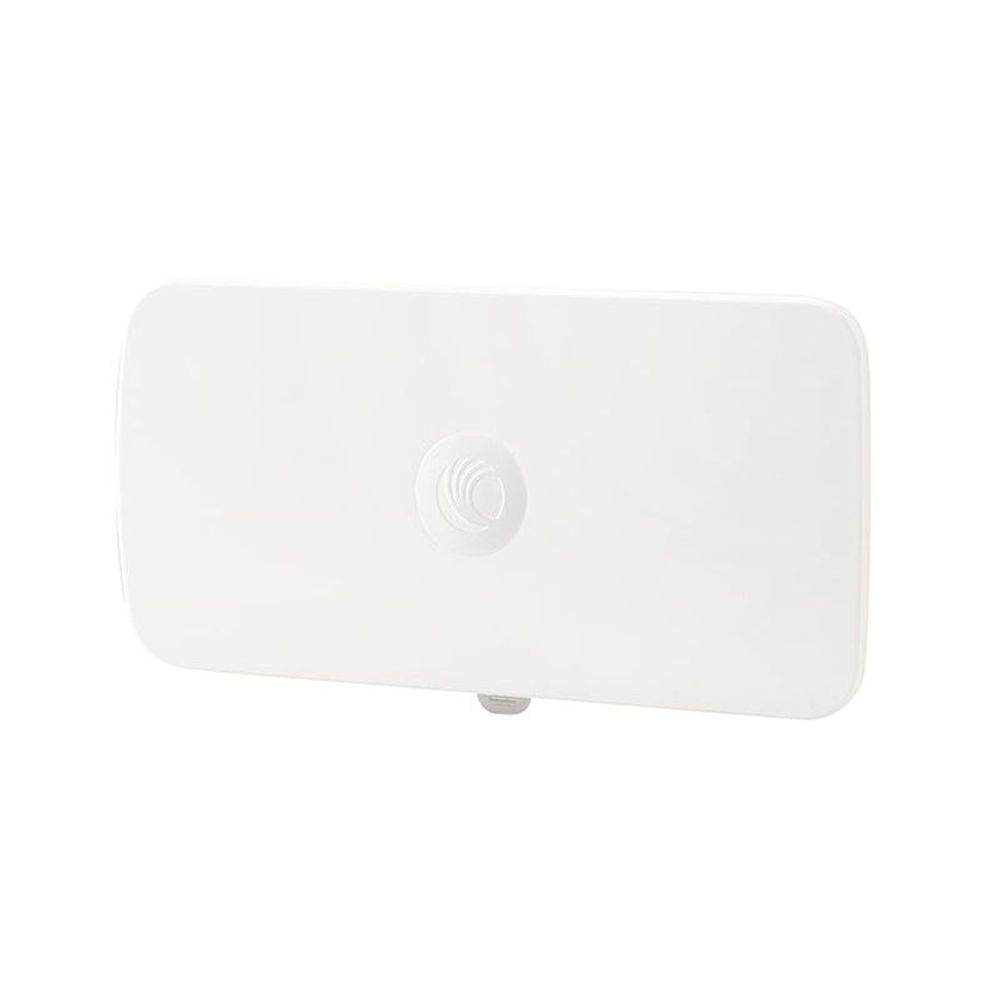

C050910C811 - Cambium ePMP 5GHz Force 300-16 Integrated 16dBi PTP/CPE Radio
C050910C811 - Cambium ePMP 5GHz Force 300-16 Integrated 16dBi PTP/CPE Radio
SKU:C050910C811
Regular price
$336.00 NZD
Regular price
Sale price
$336.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
Cambium ePMP 5GHz Force 300-16 Integrated 16dBi radio for high speed Point to Point and WISP CPE applications. The Cambium 5GHz Force 300-16 continues the tradition of previous products with an integrated 16dBi panel antenna with a narrow beamwidth and reliable mechanics. Supporting peak throughput greater than 500Mbps, the Force 300-16 also supports an always-on spectrum analyser.
Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.
Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11AC Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300-16 offers a compelling yet affordable point to point product and a future subscriber module for the ePMP3000 Access Point.
Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.
Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11AC Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300-16 offers a compelling yet affordable point to point product and a future subscriber module for the ePMP3000 Access Point.
Features
- Cambium Networks’ ePMP Force 300-16 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.
- The ePMP Force 300-16 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM.
- The ePMP Force 300-16 supports real time spectrum monitoring with out degradation in throughput
- Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms.
- QoS management offers an outstanding quality for triple play services – VoIP, video, and data – and provides three levels of traffic priority.
- With a horizontal orientation mount providing a 15 degree beamwidth and 16dBi gain, the F300-16 offers a compelling, compact ubscriber or point to point solution resilient to interference.
- This platform is for the user base that wants a smaller on premises footprint while enabling high gain.
- Install is a breeze with the easy to install mount, capable of pole and wall mounting.
- Perfect CPE for ePMP 3000 Point to Multi-Point solutions
- Free Cloud or on-premises network management with cnMaestro
- IP55 Outdoor Rated
- 3 Year Standard Warranty
| Details | |
|---|---|
| Manufacturer's Code | C050910C811B |
| Channel Width | 20/40/80 MHz |
| Proprietary Physical | Layer Air Interface on top of 802.11ac Wave 2 technology (2x2 MIMO/OFDM) |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 4910–5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) |
| MAC Layer (Media Access Control) | Cambium Proprietary |
| Ethernet Interface | 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestroâ„¢ |
| VLAN | 802.1Q with 802.1p priority |
| Modulation | MCS0 (BPSK) to MCS9 (256 QAM 5/6) |
| Transmit Power Range | 0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Antenna Gain | 16dBi |
| 3 dB Beamwidth Azimuth | 15º |
| 3 dB Beamwidth Elevation | 30º |
| Surge Suppression | 1 Joule Integrated |
| Environmental | IP55 |
| Temperature | -30°C to +60°C |
| Weight | 0.50 kg (Includes mounting bracket) |
| Wind Survival | 180 km/hour |
| Dimensions | 124 x 251 x 119 mm with mounting bracket attached |
| Pole Diameter Range | 25 - 41 mm with included clamp |
| Power Consumption | 12 W (Up to 15 W in extreme cold temperatures when heater is activated.) |
| Input Voltage | 30 V Passive PoE (14-30 V DC Input) |
| Encryption | 128-bit AES (CCMP mode) |
| Details | |
|---|---|
| Power Supply | 30V PoE Power Supply included |
| Pole Mount Bracket | Included |
Â
Â
Specifications
Â
Â
Cambium ePMP 5GHz Force 300-16 Integrated 16dBi radio for high speed Point to Point and WISP CPE applications. The Cambium 5GHz Force 300-16 continues the tradition of previous products with an integrated 16dBi panel antenna with a narrow beamwidth and reliable mechanics. Supporting peak throughput greater than 500Mbps, the Force 300-16 also supports an always-on spectrum analyser.
Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.
Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11AC Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300-16 offers a compelling yet affordable point to point product and a future subscriber module for the ePMP3000 Access Point.
Click here for more information about the complete Point to Multi-Point product range for Cambium ePMP 3000.
Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.
Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11AC Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300-16 offers a compelling yet affordable point to point product and a future subscriber module for the ePMP3000 Access Point.
Click here for more information about the complete Point to Multi-Point product range for Cambium ePMP 3000.
Features
- Cambium Networks’ ePMP Force 300-16 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.
- The ePMP Force 300-16 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM.
- The ePMP Force 300-16 supports real time spectrum monitoring with out degradation in throughput
- Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms.
- QoS management offers an outstanding quality for triple play services – VoIP, video, and data – and provides three levels of traffic priority.
- With a horizontal orientation mount providing a 15 degree beamwidth and 16dBi gain, the F300-16 offers a compelling, compact ubscriber or point to point solution resilient to interference.
- This platform is for the user base that wants a smaller on premises footprint while enabling high gain.
- Install is a breeze with the easy to install mount, capable of pole and wall mounting.
- Perfect CPE for ePMP 3000 Point to Multi-Point solutions
- Free Cloud or on-premises network management with cnMaestro
- IP55 Outdoor Rated
- 3 Year Standard Warranty
| Details | |
|---|---|
| Manufacturer's Code | C050910C811B |
| Channel Width | 20/40/80 MHz |
| Proprietary Physical | Layer Air Interface on top of 802.11ac Wave 2 technology (2x2 MIMO/OFDM) |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 4910–5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) |
| MAC Layer (Media Access Control) | Cambium Proprietary |
| Ethernet Interface | 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestroâ„¢ |
| VLAN | 802.1Q with 802.1p priority |
| Modulation | MCS0 (BPSK) to MCS9 (256 QAM 5/6) |
| Transmit Power Range | 0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Antenna Gain | 16dBi |
| 3 dB Beamwidth Azimuth | 15º |
| 3 dB Beamwidth Elevation | 30º |
| Surge Suppression | 1 Joule Integrated |
| Environmental | IP55 |
| Temperature | -30°C to +60°C |
| Weight | 0.50 kg (Includes mounting bracket) |
| Wind Survival | 180 km/hour |
| Dimensions | 124 x 251 x 119 mm with mounting bracket attached |
| Pole Diameter Range | 25 - 41 mm with included clamp |
| Power Consumption | 12 W (Up to 15 W in extreme cold temperatures when heater is activated.) |
| Input Voltage | 30 V Passive PoE (14-30 V DC Input) |
| Encryption | 128-bit AES (CCMP mode) |
| Details | |
|---|---|
| Power Supply | 30V PoE Power Supply included |
| Pole Mount Bracket | Included |
