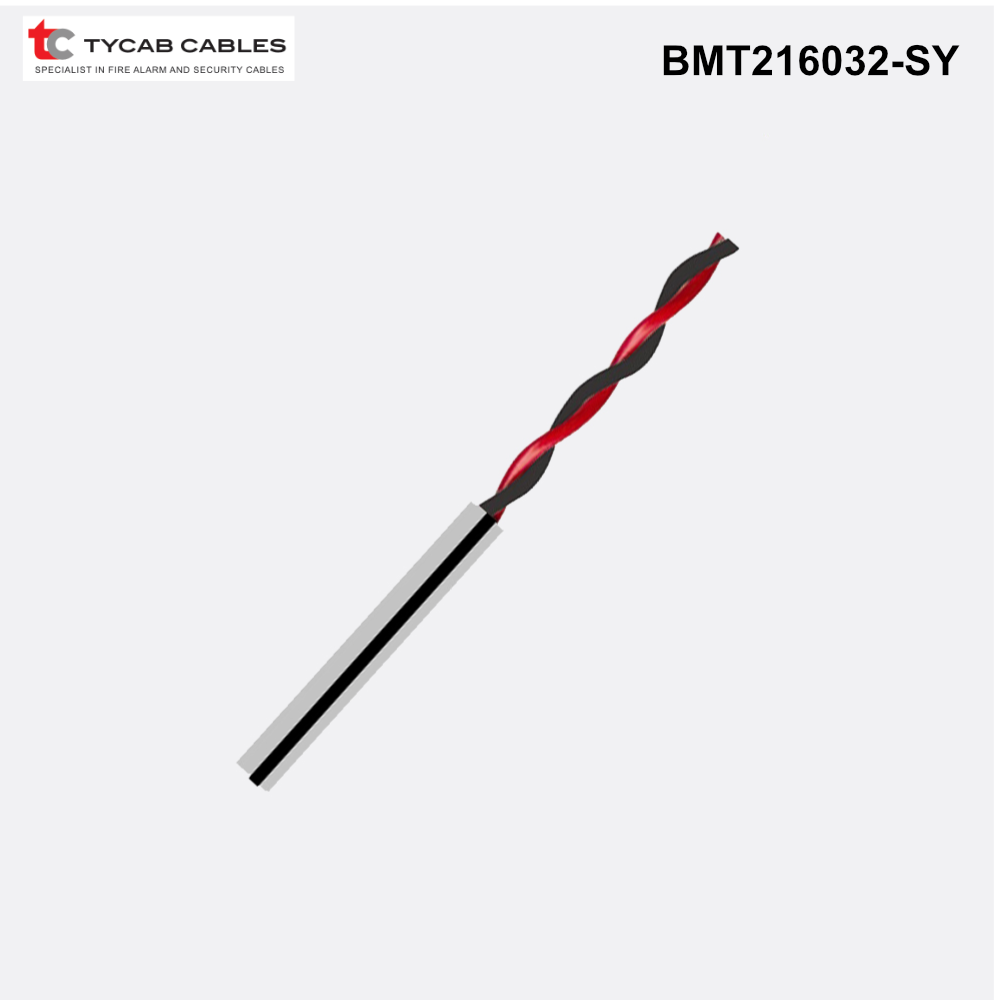

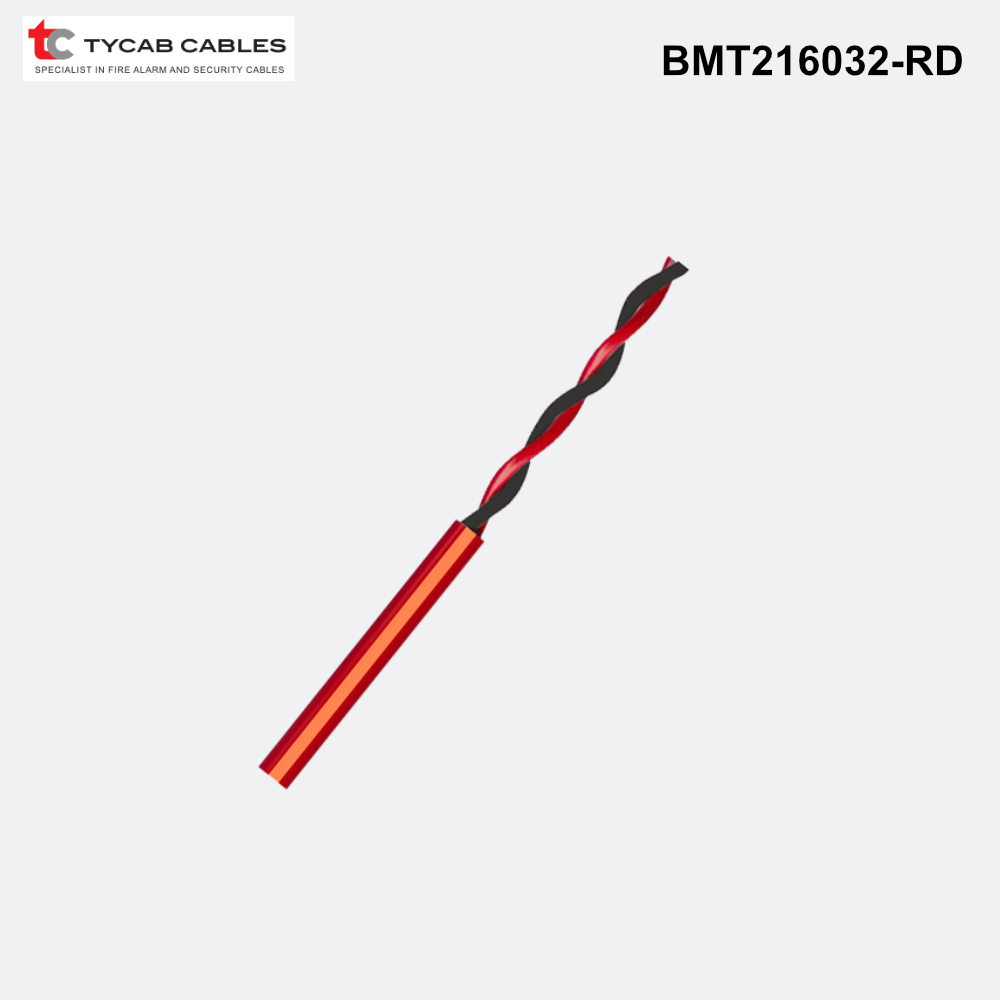

BMT216032 - Tycab Fire Alarm Cable 2 x 1.25mm² - Fire System and Sounder Wiring

Features

Includes:

• 2 Core 16/.32 (1.29 mm sq nom.). Tinned Copper Wire, V90 P.V.C Insulated.
• 5V90 P.V.C. Sheathed. Twisted Fire Alarm Cable.
• 450/750 Volt Generally to AS5000.2.
• Oxygen-Free copper. RoHS compliant.
• 200m

Specs

Construction

Conductor: 16 strands of 0.32 mm Tinned Annealed Copper to AS1125 drawn from Class 102 copper to AS1574.
Max. D.C. resistance at 20C : 14 ohms / km.

Insulation: Coloured V90 PVC to AS3808.
Nominal Diameter: 2.7 mm.
Nominal Wall Thickness: 0.6 mm.

Lay Up: 2 Cores Twisted
1. Red plus
2. Black

Sheath: Coloured P.V.C. type 5V90 to AS3808.
Nominal Diameter: 7.9 mm.
Nominal Wall Thickness: 1.2 mm.
Typical ropy finish.

Identification: Printed at max 500mm spacings TYCAB 2011 V90 ELECTRIC CABLE 450/750Volt BMT216032.
