Alpha Wireless

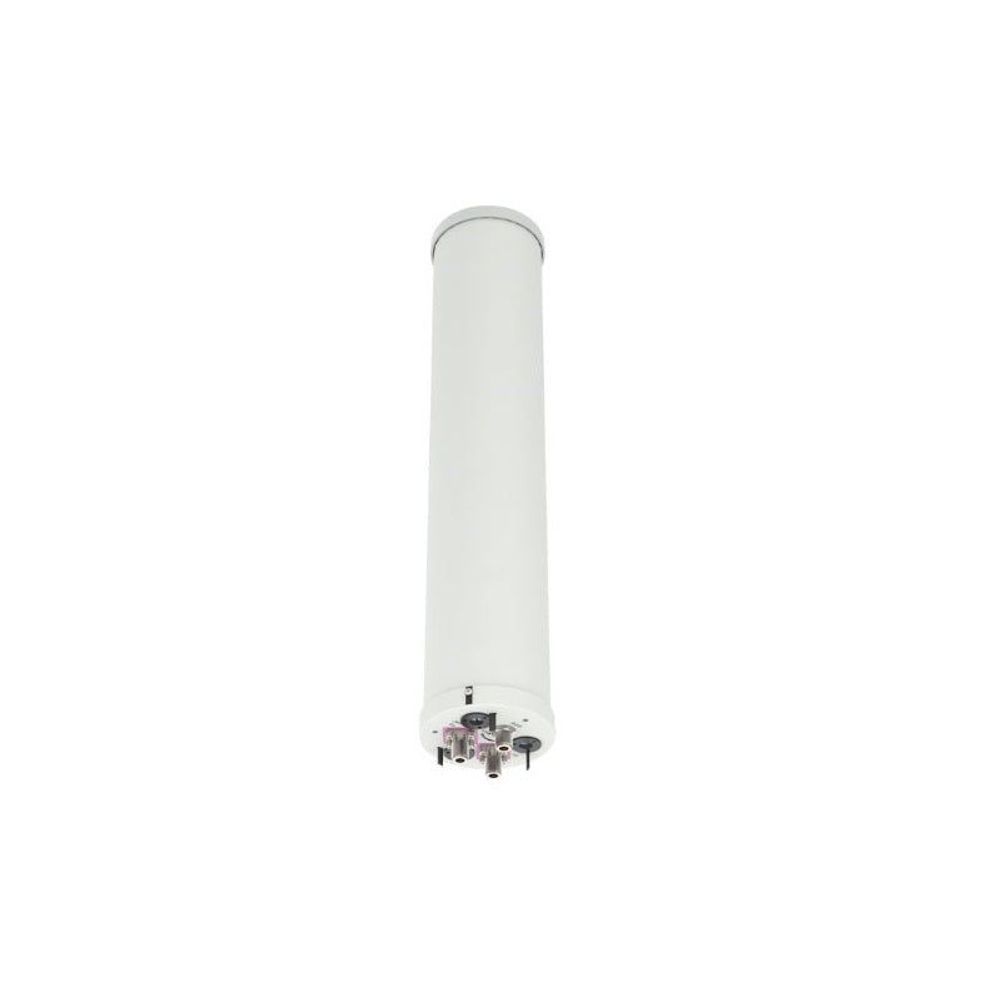

AW3625-M-N-G - Alpha Wireless 3300-3800 MHz Dual Slant 8.5 dBi Omnidirectional Cannister Antenna with Integrated GPS
AW3625-M-N-G - Alpha Wireless 3300-3800 MHz Dual Slant 8.5 dBi Omnidirectional Cannister Antenna with Integrated GPS
SKU:AW3625-M-N-G
Regular price
$1,890.00 NZD
Regular price
Sale price
$1,890.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Low stock
Quantity
Couldn't load pickup availability
Alpha Wireless 3300-3800 MHz Dual Slant 8.5 dBi Omnidirectional Cannister Antenna
This product was developed to offer a Tri-Sector pseudo omni solution with independent tilt control on each of the three sectors across Bands 42/43 in a small form factor cannister. It has a built in GPS antenna. Operates between 3300-3800MHz covering LTE Bands B42, 43 & 48 and 5G NR Band n78.
Alpha Wireless pseudo omni antenna provides 360° coverage whilst in an ultra-compact radome design. The wide-band antenna is designed to be installed in urban environment where low visual impact is required. There are a number of mounting options available making deployments on lamp posts, utility poles, walls and other vertical structures possible. The 2 port antenna provides 2X2 MIMO for improved data throughput with electrical variable tilt for maximum optimization.
This product was developed to offer a Tri-Sector pseudo omni solution with independent tilt control on each of the three sectors across Bands 42/43 in a small form factor cannister. It has a built in GPS antenna. Operates between 3300-3800MHz covering LTE Bands B42, 43 & 48 and 5G NR Band n78.
Alpha Wireless pseudo omni antenna provides 360° coverage whilst in an ultra-compact radome design. The wide-band antenna is designed to be installed in urban environment where low visual impact is required. There are a number of mounting options available making deployments on lamp posts, utility poles, walls and other vertical structures possible. The 2 port antenna provides 2X2 MIMO for improved data throughput with electrical variable tilt for maximum optimization.
Features
- Perfect for use with Cambium PMP450i Connectorised Access Points
- 2x N-Type Female Connectors
- Wide-band antenna that covers LTE Bands 42, 43 & 48 and 5G NR Band n78 (3300 - 3800MHz)
- Optimized Pseudo omni with reduced azimuth ripple
- Slim monopole design to reduce wind loading
- Independent RET control for each array (x3)
- Built in GPS antenna (N-Type Connector)
| Details | |
|---|---|
| Product Code | AW3625-M-N-G |
| Frequency Range | 3300 - 3800MHz |
| Polarisation | +/- 45° Slant Linear |
| Gain | Basta 8.0±0.5dBi, Max 8.5dBi |
| Azimuth Beamwidth | 360° |
| Elevation Beamwidth | 12° |
| Electrical Downtilt | T0°- T10° |
| Electrical Downtilt Deviation | < 1° |
| Impedance | 50 Ohms |
| VSWR | < 1.5 |
| Return Loss | dB> 14 |
| Isolation | dB> 25 |
| Upper Sidelobe Suppression, Peak to 20º | dB> 16 |
| Cross-Polar Discrimination | dB> 12 |
| Maximum Effective Power Per Port | 50W |
| Dimensions | 600 x 125 mm - L x Ø |
| Net Weight (antenna) | 3 kg |
| Net Weight (mount) | 2 kg |
| Connector Type | N Type Female |
| Connector Quantity | 2 + 1 (GPS) |
| Connector Position | Bottom |
| Frontal Windload (at Rated Wind Speed: 150km/h) | 80 N |
| Lateral Windload (at Rated Wind Speed: 150km/h) | 80 N |
| Survival Wind Speed | 200 km/h |
| Radome Material | UV-Stabilised PVC |
| Radome Colour | RAL 7035 |
| Product Compliance Environmental | RoHS |
| Lightning Protection | DC Grounded |
| Cold Temperature Survival | -40 ºC |
| Hot Temperature Survival | 70 ºC |
| GPS Centre Frequency | 1575.42MHz +/- 10MHz |
| GPS Antenna Gain | 3 dBic @ 90°, -2dBic @ 20° |
| GPS Antenna Polarization | Right Hand Circular |
| Details | |
|---|---|
| Mounting Hardware | CL-V-127 (Jubilee Clip 9.5 Stainless Steel 210mm-242mm & Mounting Kit included with Antenna) |
Â
Â
Specifications
Â
Â
Alpha Wireless 3300-3800 MHz Dual Slant 8.5 dBi Omnidirectional Cannister Antenna
This product was developed to offer a Tri-Sector pseudo omni solution with independent tilt control on each of the three sectors across Bands 42/43 in a small form factor cannister. It has a built in GPS antenna. Operates between 3300-3800MHz covering LTE Bands B42, 43 & 48 and 5G NR Band n78.
Alpha Wireless pseudo omni antenna provides 360° coverage whilst in an ultra-compact radome design. The wide-band antenna is designed to be installed in urban environment where low visual impact is required. There are a number of mounting options available making deployments on lamp posts, utility poles, walls and other vertical structures possible. The 2 port antenna provides 2X2 MIMO for improved data throughput with electrical variable tilt for maximum optimization.
This product was developed to offer a Tri-Sector pseudo omni solution with independent tilt control on each of the three sectors across Bands 42/43 in a small form factor cannister. It has a built in GPS antenna. Operates between 3300-3800MHz covering LTE Bands B42, 43 & 48 and 5G NR Band n78.
Alpha Wireless pseudo omni antenna provides 360° coverage whilst in an ultra-compact radome design. The wide-band antenna is designed to be installed in urban environment where low visual impact is required. There are a number of mounting options available making deployments on lamp posts, utility poles, walls and other vertical structures possible. The 2 port antenna provides 2X2 MIMO for improved data throughput with electrical variable tilt for maximum optimization.
Features
- Perfect for use with Cambium PMP450i Connectorised Access Points
- 2x N-Type Female Connectors
- Wide-band antenna that covers LTE Bands 42, 43 & 48 and 5G NR Band n78 (3300 - 3800MHz)
- Optimized Pseudo omni with reduced azimuth ripple
- Slim monopole design to reduce wind loading
- Independent RET control for each array (x3)
- Built in GPS antenna (N-Type Connector)
| Details | |
|---|---|
| Product Code | AW3625-M-N-G |
| Frequency Range | 3300 - 3800MHz |
| Polarisation | +/- 45° Slant Linear |
| Gain | Basta 8.0±0.5dBi, Max 8.5dBi |
| Azimuth Beamwidth | 360° |
| Elevation Beamwidth | 12° |
| Electrical Downtilt | T0°- T10° |
| Electrical Downtilt Deviation | < 1° |
| Impedance | 50 Ohms |
| VSWR | < 1.5 |
| Return Loss | dB> 14 |
| Isolation | dB> 25 |
| Upper Sidelobe Suppression, Peak to 20º | dB> 16 |
| Cross-Polar Discrimination | dB> 12 |
| Maximum Effective Power Per Port | 50W |
| Dimensions | 600 x 125 mm - L x Ø |
| Net Weight (antenna) | 3 kg |
| Net Weight (mount) | 2 kg |
| Connector Type | N Type Female |
| Connector Quantity | 2 + 1 (GPS) |
| Connector Position | Bottom |
| Frontal Windload (at Rated Wind Speed: 150km/h) | 80 N |
| Lateral Windload (at Rated Wind Speed: 150km/h) | 80 N |
| Survival Wind Speed | 200 km/h |
| Radome Material | UV-Stabilised PVC |
| Radome Colour | RAL 7035 |
| Product Compliance Environmental | RoHS |
| Lightning Protection | DC Grounded |
| Cold Temperature Survival | -40 ºC |
| Hot Temperature Survival | 70 ºC |
| GPS Centre Frequency | 1575.42MHz +/- 10MHz |
| GPS Antenna Gain | 3 dBic @ 90°, -2dBic @ 20° |
| GPS Antenna Polarization | Right Hand Circular |
| Details | |
|---|---|
| Mounting Hardware | CL-V-127 (Jubilee Clip 9.5 Stainless Steel 210mm-242mm & Mounting Kit included with Antenna) |
