Adeunis

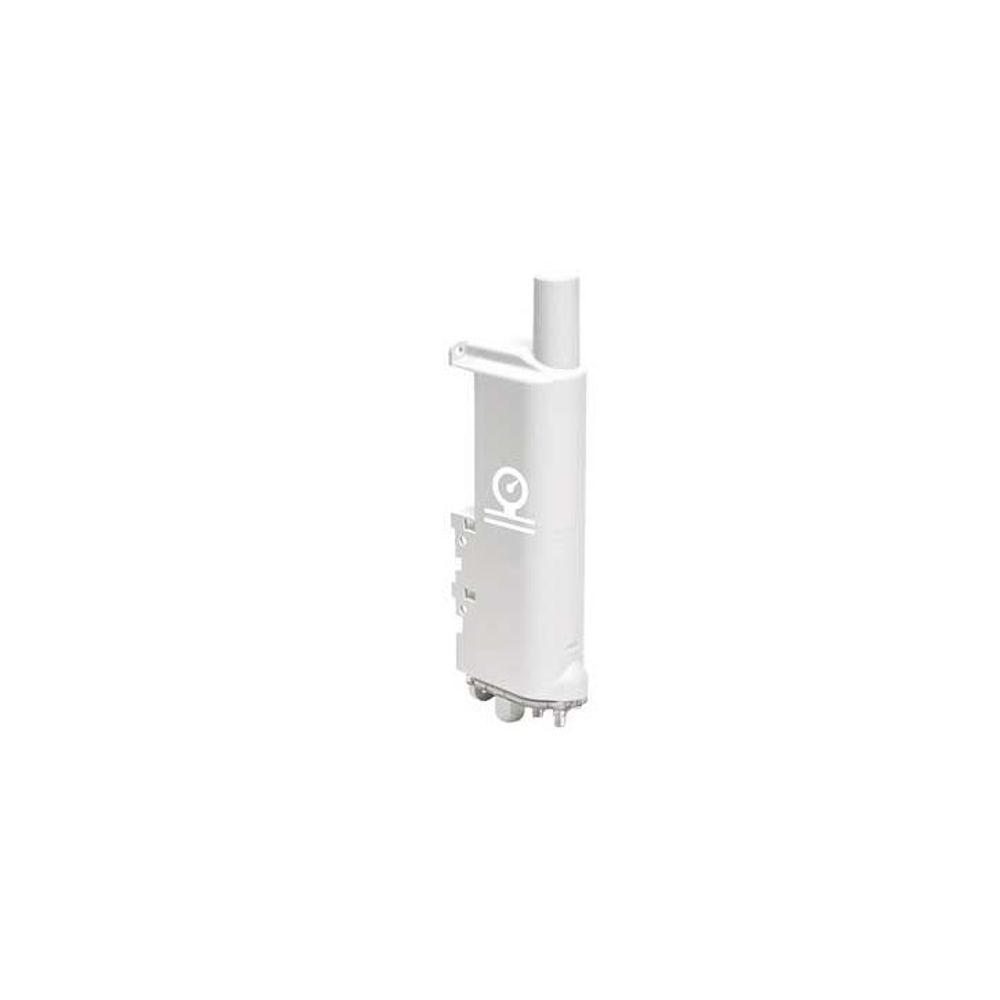

ARF8283AA - Adeunis LoRaWAN EU868 DeltaP Air Pressure IoT Sensor
ARF8283AA - Adeunis LoRaWAN EU868 DeltaP Air Pressure IoT Sensor
SKU:ARF8283AA
Regular price
$65.00 NZD
Regular price
Sale price
$65.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
The Adeunis DeltaP is an Air Pressure IoT Sensor for LoRaWAN EU863-870.
The Adeunis® LoRaWAN DELTA P is a ready-to-use radio transmitter that measures either a pressure delta between the inside of a ventilation box and atmospheric pressure or a pressure delta on either side of an element (e.g. filter). The product meets the needs of users who want to remotely monitor a ventilation system.
The Adeunis® LoRaWAN DELTA P sends data at pre-set intervals or when the high or low thresholds are exceeded. The user may access the transmitter configuration locally via a micro-USB port or remotely via the LoRaWAN network, allowing in particular the setting of the scrutation, transmission modes or alarm thresholds.
The Adeunis® LoRaWAN DELTA P also contains 2 digital inputs/outputs for coupling with newer systems with dry contact outputs and 1 Analog input 0-10 V for coupling with a 0-10 V sensor (current clamp for example). The LoRaWAN DELTA P is powered by a replaceable internal battery pack.
The Adeunis® LoRaWAN DELTA P is a ready-to-use radio transmitter that measures either a pressure delta between the inside of a ventilation box and atmospheric pressure or a pressure delta on either side of an element (e.g. filter). The product meets the needs of users who want to remotely monitor a ventilation system.
The Adeunis® LoRaWAN DELTA P sends data at pre-set intervals or when the high or low thresholds are exceeded. The user may access the transmitter configuration locally via a micro-USB port or remotely via the LoRaWAN network, allowing in particular the setting of the scrutation, transmission modes or alarm thresholds.
The Adeunis® LoRaWAN DELTA P also contains 2 digital inputs/outputs for coupling with newer systems with dry contact outputs and 1 Analog input 0-10 V for coupling with a 0-10 V sensor (current clamp for example). The LoRaWAN DELTA P is powered by a replaceable internal battery pack.
Features
- Compatible with EU863-870 LoRaWAN™ networks
- Pressure difference: relative to the atmospheric pressure or between two different zones
- 2 digital inputs / outputs: for connecting to a PLC for tracing alerts or operating states
- 1 analogue input 0-10V: for connecting to a sensor
- Local and remote configuration
- Ready to use solution
- Soldered Battery
| Details | |
|---|---|
| Product Code | ARF8283AA |
| Modes | Periodic or Event |
| Delta Pressure | -500/+500Pa |
| Accuracy | +/- 25Pa |
| Dimensions | 200 x 63.5 x 34 mm |
| Weight | 70 g |
| Casing | IP68 |
| Integrated Fastening System | DIN rail, tube, wall mount, flange |
| Operating Temperature Range | -20°C to + 70°C |
| Zone | LoRaWAN: EU863-870 |
| Details | |
|---|---|
Specifications
The Adeunis DeltaP is an Air Pressure IoT Sensor for LoRaWAN EU863-870.
The Adeunis® LoRaWAN DELTA P is a ready-to-use radio transmitter that measures either a pressure delta between the inside of a ventilation box and atmospheric pressure or a pressure delta on either side of an element (e.g. filter). The product meets the needs of users who want to remotely monitor a ventilation system.
The Adeunis® LoRaWAN DELTA P sends data at pre-set intervals or when the high or low thresholds are exceeded. The user may access the transmitter configuration locally via a micro-USB port or remotely via the LoRaWAN network, allowing in particular the setting of the scrutation, transmission modes or alarm thresholds.
The Adeunis® LoRaWAN DELTA P also contains 2 digital inputs/outputs for coupling with newer systems with dry contact outputs and 1 Analog input 0-10 V for coupling with a 0-10 V sensor (current clamp for example). The LoRaWAN DELTA P is powered by a replaceable internal battery pack.
The Adeunis® LoRaWAN DELTA P is a ready-to-use radio transmitter that measures either a pressure delta between the inside of a ventilation box and atmospheric pressure or a pressure delta on either side of an element (e.g. filter). The product meets the needs of users who want to remotely monitor a ventilation system.
The Adeunis® LoRaWAN DELTA P sends data at pre-set intervals or when the high or low thresholds are exceeded. The user may access the transmitter configuration locally via a micro-USB port or remotely via the LoRaWAN network, allowing in particular the setting of the scrutation, transmission modes or alarm thresholds.
The Adeunis® LoRaWAN DELTA P also contains 2 digital inputs/outputs for coupling with newer systems with dry contact outputs and 1 Analog input 0-10 V for coupling with a 0-10 V sensor (current clamp for example). The LoRaWAN DELTA P is powered by a replaceable internal battery pack.
Features
- Compatible with EU863-870 LoRaWAN™ networks
- Pressure difference: relative to the atmospheric pressure or between two different zones
- 2 digital inputs / outputs: for connecting to a PLC for tracing alerts or operating states
- 1 analogue input 0-10V: for connecting to a sensor
- Local and remote configuration
- Ready to use solution
- Soldered Battery
| Details | |
|---|---|
| Product Code | ARF8283AA |
| Modes | Periodic or Event |
| Delta Pressure | -500/+500Pa |
| Accuracy | +/- 25Pa |
| Dimensions | 200 x 63.5 x 34 mm |
| Weight | 70 g |
| Casing | IP68 |
| Integrated Fastening System | DIN rail, tube, wall mount, flange |
| Operating Temperature Range | -20°C to + 70°C |
| Zone | LoRaWAN: EU863-870 |
| Details | |
|---|---|
