Adeunis

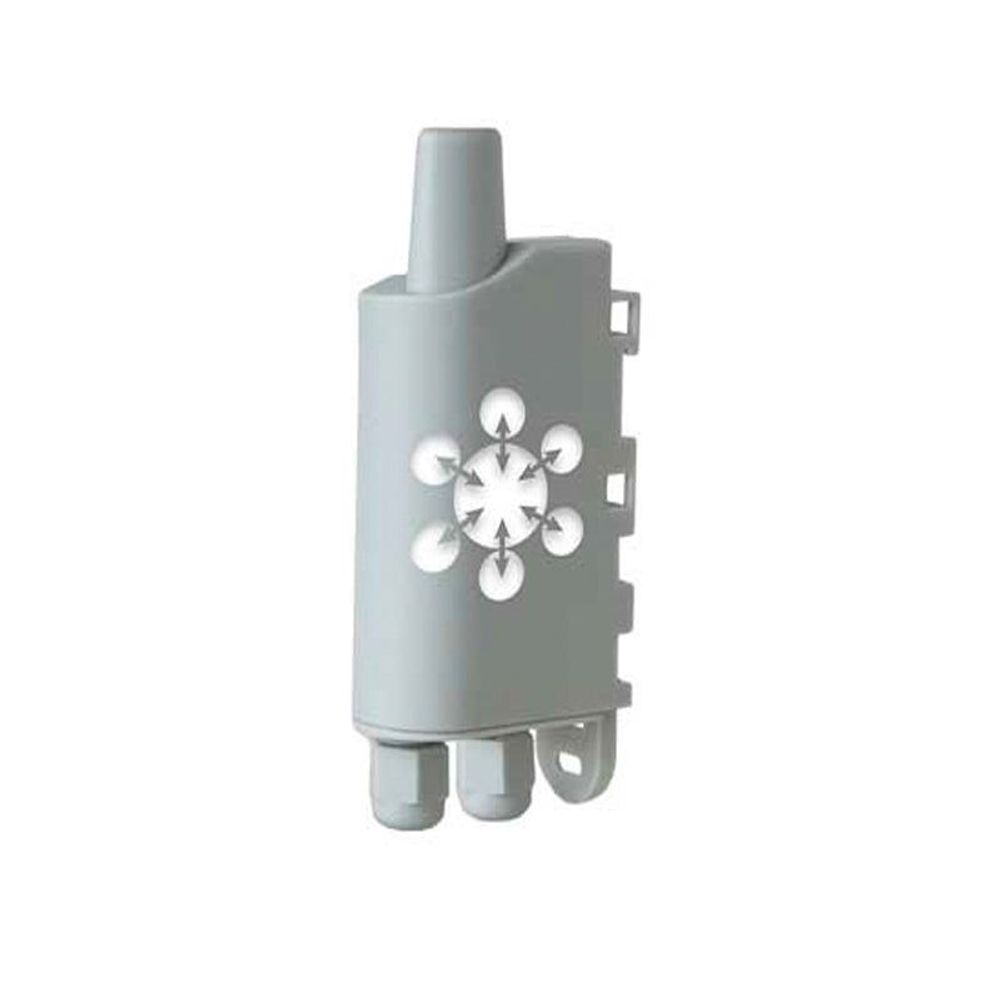

ARF8240JA - Adeunis LoRaWAN AS923 MODBUS Master External power supply (not included)
ARF8240JA - Adeunis LoRaWAN AS923 MODBUS Master External power supply (not included)
SKU:ARF8240JA
Regular price
$115.00 NZD
Regular price
Sale price
$115.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Low stock
Quantity
Couldn't load pickup availability
The Adeunis ARF8240JA is a MODBUS MASTER that supports external power supply (not included) for LoRaWAN AS923 IoT.
The Adeunis® LoRaWAN MODBUS MASTER is a ready-to-use radio transmitter with a MODBUS interface. This product meets the needs of users to communicate with one or several MODBUS slaves and transmit their information via a LoRaWAN network.
The LoRaWAN MODBUS MASTER uses the Remote Terminal Unit (RTU) Modbus protocol to communicate with the slaves. The frame of the product can contain 24 registers (of 2 bytes) maximum per periodic frame. These registers can be distributed between the monitored slaves (20 slaves maximum) knowing that for each slave 15 registers can be configured per frame. The product transmits the data from the slaves periodically through one or several frames (up to 6) with the same or different periods of transmission.
The LoRaWAN MODBUS MASTER transmits the data from slave(s) either periodically or in an event-related way based on high or low thresholds. The product is able to read or write in the registers of a slave through the network. The LoRaWAN MODBUS MASTER can be configured in Class A or Class C depending on user requirements.
The configuration of the transmitter is accessible by the user via a micro-USB port or remotely via the LoRaWAN network, allowing in particular a choice of modes of transmission, periodicity or triggering thresholds. The LoRaWAN MODBUS MASTER is powered by an external power supply (not included). The product is able to provide and control the power supply for a slave.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
The Adeunis® LoRaWAN MODBUS MASTER is a ready-to-use radio transmitter with a MODBUS interface. This product meets the needs of users to communicate with one or several MODBUS slaves and transmit their information via a LoRaWAN network.
The LoRaWAN MODBUS MASTER uses the Remote Terminal Unit (RTU) Modbus protocol to communicate with the slaves. The frame of the product can contain 24 registers (of 2 bytes) maximum per periodic frame. These registers can be distributed between the monitored slaves (20 slaves maximum) knowing that for each slave 15 registers can be configured per frame. The product transmits the data from the slaves periodically through one or several frames (up to 6) with the same or different periods of transmission.
The LoRaWAN MODBUS MASTER transmits the data from slave(s) either periodically or in an event-related way based on high or low thresholds. The product is able to read or write in the registers of a slave through the network. The LoRaWAN MODBUS MASTER can be configured in Class A or Class C depending on user requirements.
The configuration of the transmitter is accessible by the user via a micro-USB port or remotely via the LoRaWAN network, allowing in particular a choice of modes of transmission, periodicity or triggering thresholds. The LoRaWAN MODBUS MASTER is powered by an external power supply (not included). The product is able to provide and control the power supply for a slave.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Features
- Compatible with AS923 LoRaWAN™ networks
- RS485/RS232 compatible
- Supervision of up to 20 slaves
- Several periodic frames with different frequencies
- Indicator lights for installation assistance
- Enable “Word Swap” for some registers configured as alarms
- Repetition of an alarm at regular intervals as long as it is active
- Test live reading and writing in a slave with the IoT
- Local and remote configuration
- Ready to use solution
- External power supply required (not included)
| Details | |
|---|---|
| Product Code | ARF8240JA |
| Modes | Periodic or Event |
| Periodic Frame | 6 Configurable |
| Pre-wired With 2 Cables | 2 wires + 6 connectable wires |
| External Power Supply | 6-30V (not included) |
| Dimensions | 105 x 50 x 27 mm |
| Weight | 70 g |
| Casing | IP67 |
| Integrated Fastening System | DIN rail, tube, wall mount, flange |
| Operating Temperature Range | -25°C to + 70°C |
| Zone | LoRaWAN: AS923 |
| Details | |
|---|---|
Specifications
The Adeunis ARF8240JA is a MODBUS MASTER that supports external power supply (not included) for LoRaWAN AS923 IoT.
The Adeunis® LoRaWAN MODBUS MASTER is a ready-to-use radio transmitter with a MODBUS interface. This product meets the needs of users to communicate with one or several MODBUS slaves and transmit their information via a LoRaWAN network.
The LoRaWAN MODBUS MASTER uses the Remote Terminal Unit (RTU) Modbus protocol to communicate with the slaves. The frame of the product can contain 24 registers (of 2 bytes) maximum per periodic frame. These registers can be distributed between the monitored slaves (20 slaves maximum) knowing that for each slave 15 registers can be configured per frame. The product transmits the data from the slaves periodically through one or several frames (up to 6) with the same or different periods of transmission.
The LoRaWAN MODBUS MASTER transmits the data from slave(s) either periodically or in an event-related way based on high or low thresholds. The product is able to read or write in the registers of a slave through the network. The LoRaWAN MODBUS MASTER can be configured in Class A or Class C depending on user requirements.
The configuration of the transmitter is accessible by the user via a micro-USB port or remotely via the LoRaWAN network, allowing in particular a choice of modes of transmission, periodicity or triggering thresholds. The LoRaWAN MODBUS MASTER is powered by an external power supply (not included). The product is able to provide and control the power supply for a slave.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
The Adeunis® LoRaWAN MODBUS MASTER is a ready-to-use radio transmitter with a MODBUS interface. This product meets the needs of users to communicate with one or several MODBUS slaves and transmit their information via a LoRaWAN network.
The LoRaWAN MODBUS MASTER uses the Remote Terminal Unit (RTU) Modbus protocol to communicate with the slaves. The frame of the product can contain 24 registers (of 2 bytes) maximum per periodic frame. These registers can be distributed between the monitored slaves (20 slaves maximum) knowing that for each slave 15 registers can be configured per frame. The product transmits the data from the slaves periodically through one or several frames (up to 6) with the same or different periods of transmission.
The LoRaWAN MODBUS MASTER transmits the data from slave(s) either periodically or in an event-related way based on high or low thresholds. The product is able to read or write in the registers of a slave through the network. The LoRaWAN MODBUS MASTER can be configured in Class A or Class C depending on user requirements.
The configuration of the transmitter is accessible by the user via a micro-USB port or remotely via the LoRaWAN network, allowing in particular a choice of modes of transmission, periodicity or triggering thresholds. The LoRaWAN MODBUS MASTER is powered by an external power supply (not included). The product is able to provide and control the power supply for a slave.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Features
- Compatible with AS923 LoRaWAN™ networks
- RS485/RS232 compatible
- Supervision of up to 20 slaves
- Several periodic frames with different frequencies
- Indicator lights for installation assistance
- Enable “Word Swap” for some registers configured as alarms
- Repetition of an alarm at regular intervals as long as it is active
- Test live reading and writing in a slave with the IoT
- Local and remote configuration
- Ready to use solution
- External power supply required (not included)
| Details | |
|---|---|
| Product Code | ARF8240JA |
| Modes | Periodic or Event |
| Periodic Frame | 6 Configurable |
| Pre-wired With 2 Cables | 2 wires + 6 connectable wires |
| External Power Supply | 6-30V (not included) |
| Dimensions | 105 x 50 x 27 mm |
| Weight | 70 g |
| Casing | IP67 |
| Integrated Fastening System | DIN rail, tube, wall mount, flange |
| Operating Temperature Range | -25°C to + 70°C |
| Zone | LoRaWAN: AS923 |
| Details | |
|---|---|
