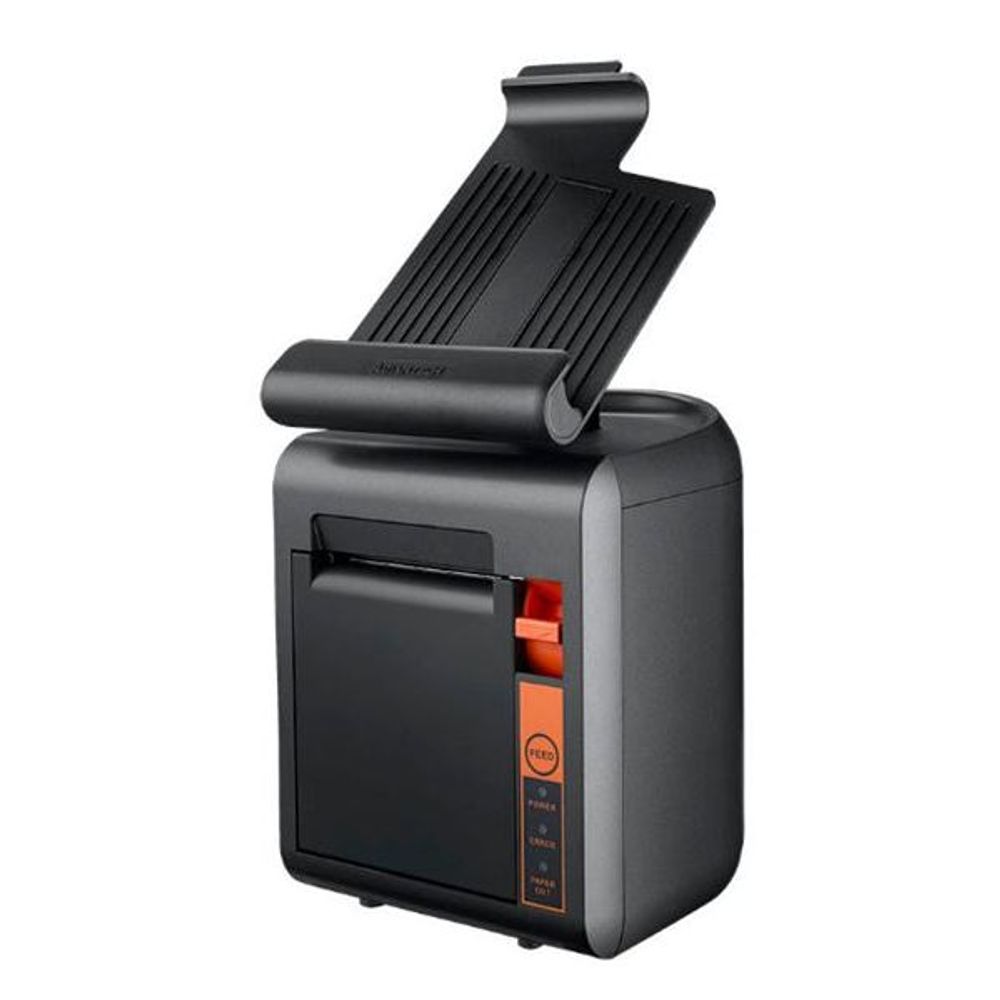

AIM-P701A0 - Advantech AIM-37 Charging Dock w/ Thermal Printer

AIM-P701A0 - Advantech AIM-37 Charging Dock w/ Thermal Printer

AIM-P701A0

$873.43 NZD
$873.43 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Overview AIM-P701 is an multi-functional smart cradle for Advantech mobile tablet use. Integrated with PoGo pin connector and embedded printer, AIM-P701 not only enables tablet battery charging, but also support receipt printing function. Moreover, AIM-P701 integrated with diverse I/O interfaces, such as USB and RJ-45 port, that support various peripheral connections for retail and hospitality.

Features

  • Compact and stylish cradle for AIM-37 Mobile POS
  • 180° swivel design can easily turn the tablet to the other side
  • ƒSupports 5V/3A high speed charging to AIM-37 Mobile POS via Pogo Pin
  • Supports multiple I/Os : 2 x USB 2.0 Type A; 2 x COM Ports via RJ48;

Specifications

I/O Interface USB Port 2x USB 2.0 Type A
Serial Port 2x COM (RJ48)
Other 1x DC In
Cash Drawer N/A
Pogo Pin Port USB 2.0 with 5V/3A Charger
Environment Operating Humidity 0~40° C
Storage Temperature 5%~95%, non-condensing
Operating Temperature -10 ~ +60° C
Thermal Printer Buttons Open Door Feed Paper
LEDs Yes
Paper Cut Auto Cut
Paper Roll 70mm Diameter
Paper Width 80mm / 58mm
Printing Speed 200 mm/s
Dimensions Dimensions (mm) 151 x 152 x 318
24 Month Return to Base Warranty
