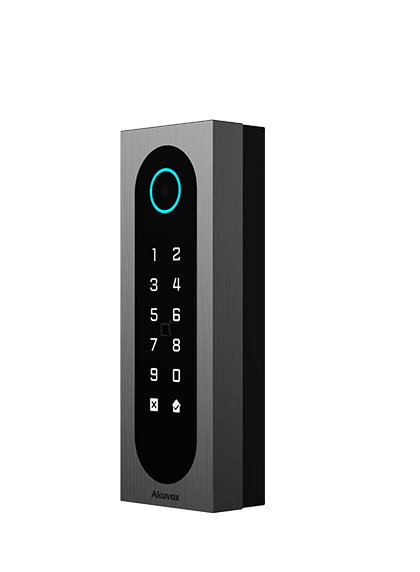

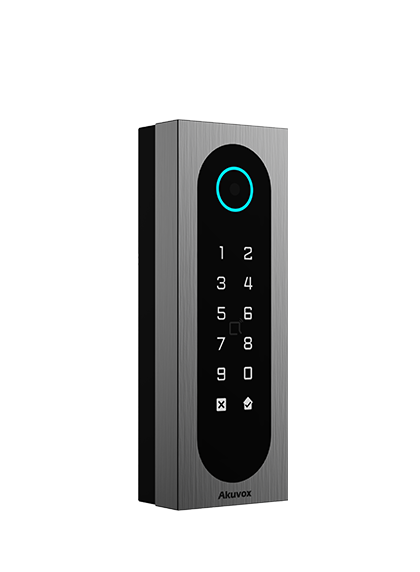

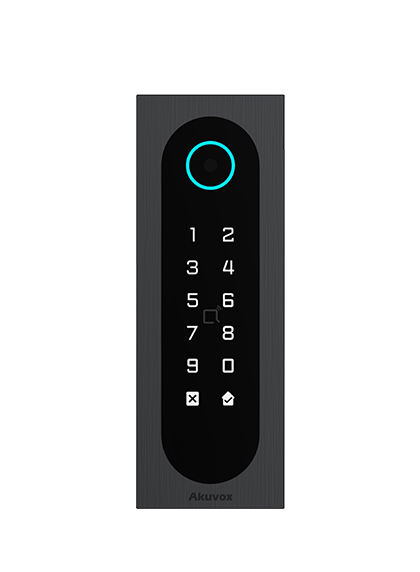

A08K - Akuvox Keypad Version (RF Card + PIN)

A08

Minimal Footprint, Mighty Unlocking

A08, iF Design Award 2025 Winner, is a cutting-edge access control terminal featuring a compact profile and advanced unlocking capabilities, ensuring robust security without compromising efficiency.

Support up to 20,000 cards and 100,000 card event logs



Product Image	Part No.	Description
	A08S	Standard Version (RF Card + PIN + Bluetooth + QR Code)
	A08S	HID iClass Version (HID iClass Module + PIN + Bluetooth + QR Code)
	A08S	HID Prox Version (HID Prox Module + PIN + Bluetooth + QR Code)
	A08K	Keypad Version (RF Card + PIN)

Specs

A08 Specification

• Physical & Power

  Front panel: Toughened Glass

  Frame: Aluminum Alloy

  RFID card reader: 13.56MHz & 125kHz

  Relay out: 1

  Inputs: 2

  Wiegand: Support

  RS485: Support

  Speaker: 8Ω / 0.5W

  Tamper proof alarm: Support

  Ethernet port: RJ45, 10/100Mbps adaptive

  12V DC connector (if not using PoE)

  Power output: 12V 600mA

  IP Level: IP65

  IK Rating: IK09

  Installation: Flush-mounted or Wall-mounted

  Dimension: 50 x 140 x 26.7 (mm)

  Working Humidity: 10~90%，no condensing

  Working Temperature: -20°C ~ +55°C

  Storage Temperature: -30°C ~ +70°C

• Networking & Protocol

  Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP

• Deployment & Maintenance

  Auto-Provisioning

  Web management portal

  Web-based packet dump

  Configuration backup / restore

  Firmware upgrade

  Akuvox Cloud management

  Akuvox SDMC & ACMS

• Door Entry Feature

  Access schedule

  Access level management

  Support switch to reader mode

  Door access logs

  Flexible shift scheduling and attendance management

• Application Scenario

  Provides access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings
