Akuvox

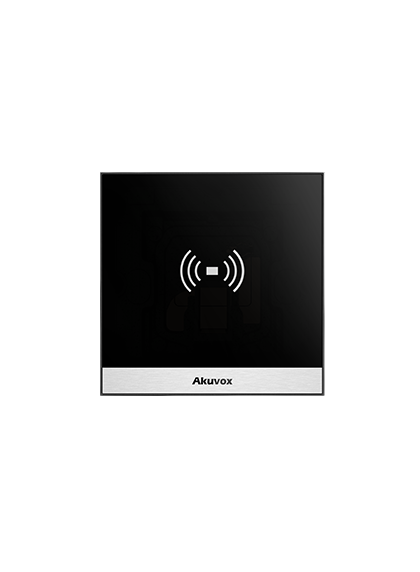

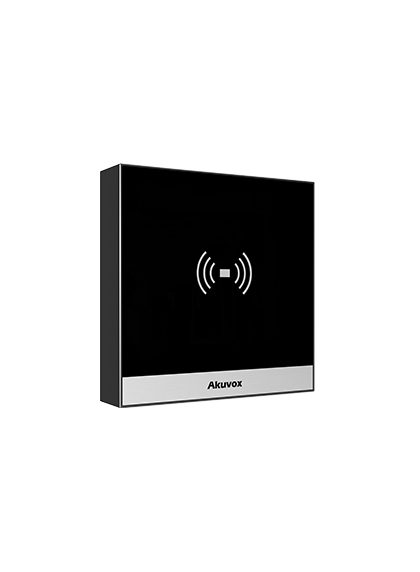

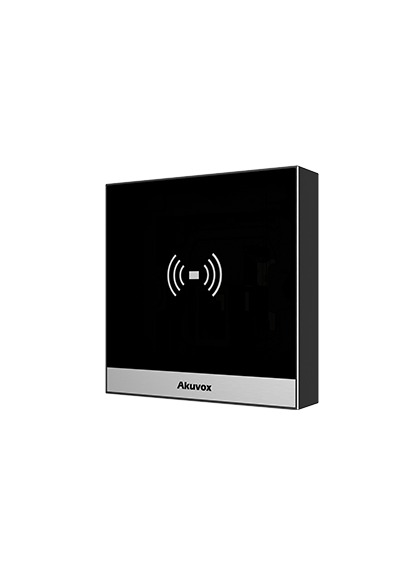

A01 - Akuvox IP Access Control Terminal

A01 - Akuvox IP Access Control Terminal

A01

$352.50 NZD
$352.50 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

A01

Smart, Compact, and Stylish Access Control Terminal

A01 is an IP-based access control terminal that combines door controller and card reader in one device. It supports RFID cards and mobile access via NFC, offering users flexibility in credential options



A01





    Specs



    A01 Specification

    • Physical & Power

      Front panel: Toughened Glass
      Frame: Aluminum Alloy
      RFID card reader: 13.56MHz & 125kHz
      Relay out: 1
      Inputs: 2
      Wiegand: Support
      Speaker: 8Ω / 0.5W
      Tamper proof alarm: Support
      Ethernet port: RJ45, 10/100Mbps adaptive
      802.3af Power-over-Ethernet
      12V DC connector (if not using PoE)
      Power output: 12V 600mA
      IP Level: IP65
      Installation: Flush-mounted or Wall-mounted
      Dimension: 86 x 86 x 33 (mm)
      Working Humidity: 10~90%，no condensing
      Working Temperature: -20°C ~ +55°C
      Storage Temperature: -30°C ~ +70°C

    • Capacity

      User Capacity: 20,000
      Card Capacity: 20,000
      Event Log: 100,000

    • Deployment & Maintenance

      Auto-Provisioning
      Web management portal
      Web-based packet dump
      Configuration backup / restore
      Firmware upgrade
      System logs

    • Networking

      Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

    • Door Entry Feature

      Access schedule export/import
      Access level management
      Supports switch to reader mode
      Door access logs query and export
      Flexible scheduling and attendance management
