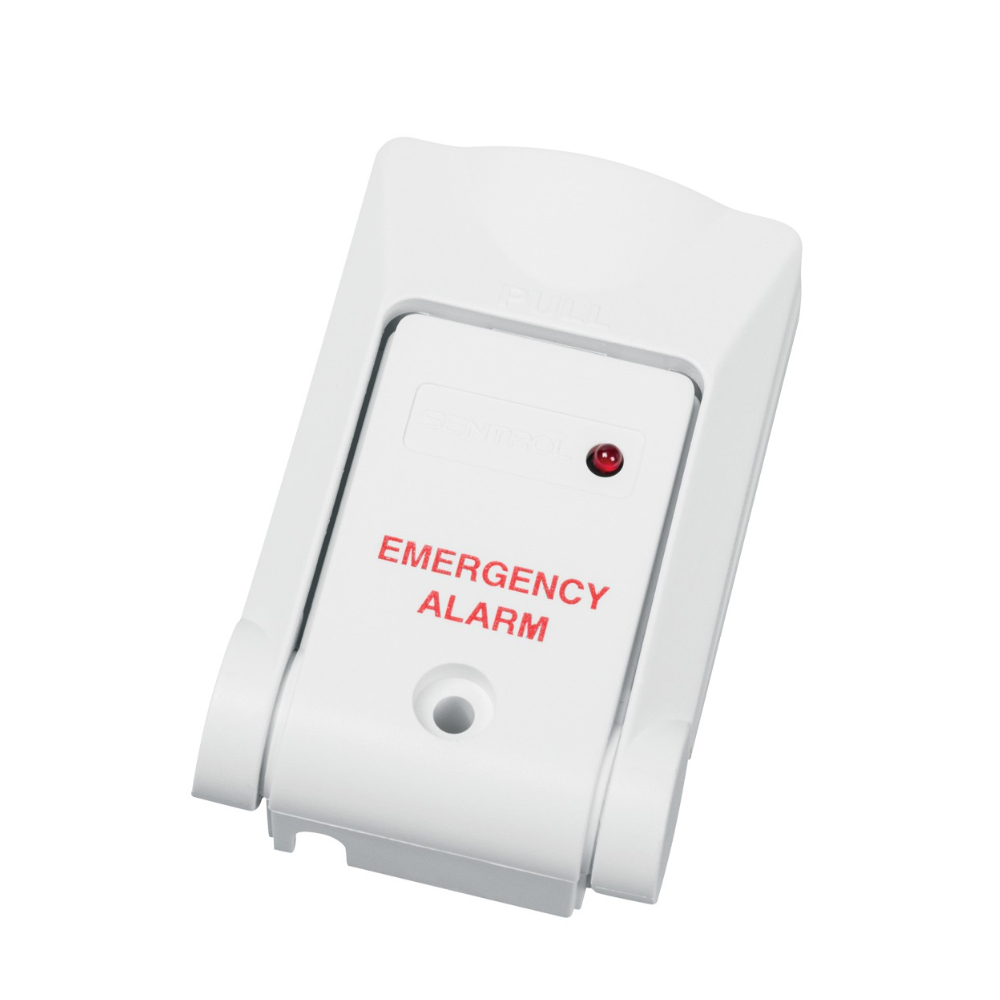

3040-W - Sentrol Duress Panic Switch, Surface Mount, SPST, White with LED

Features

Includes:

• Mounts underneath or on side of desk or counter
• Smooth housing prevents accidental damage to clothing
• Actuating lever designed to accommodate only tip of finger
• Reed contact resets when lever is in closed position

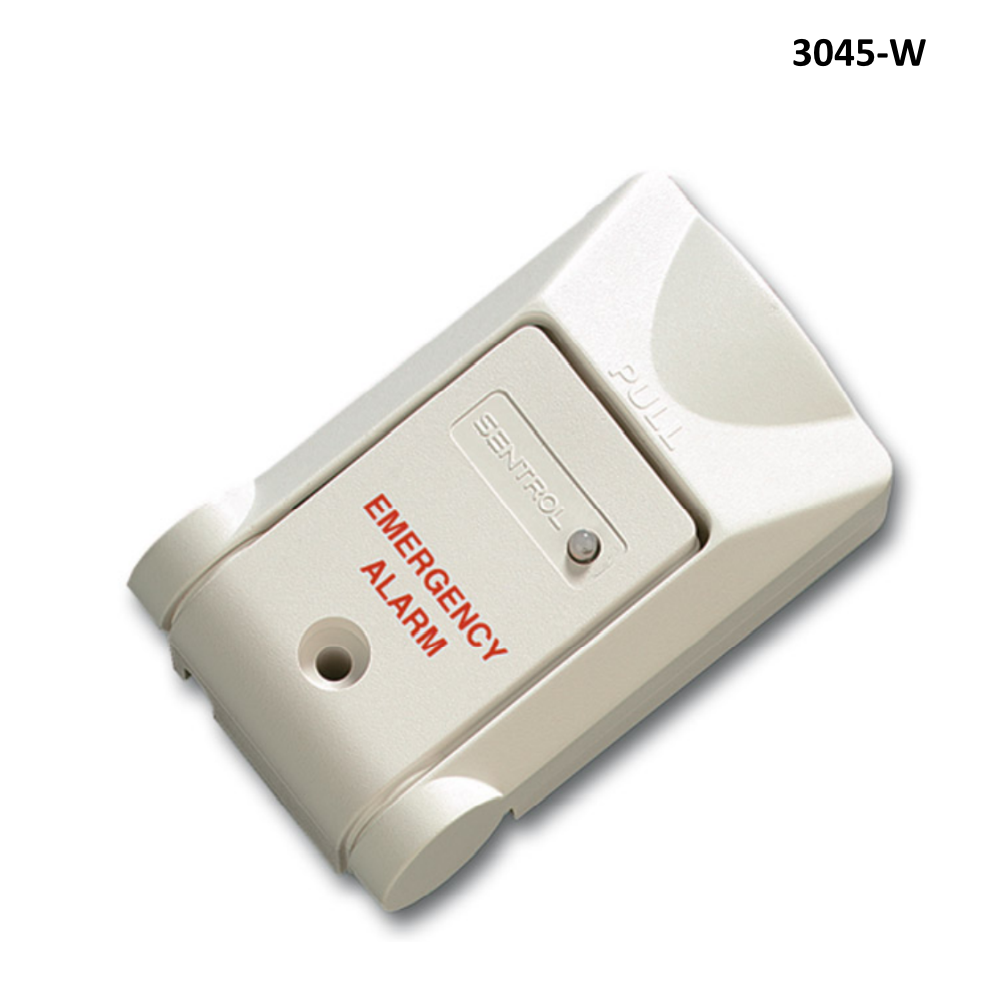

Sentrol 3040 Series Panic Switch Architect and Engineering Specifications
The unit consists of a housing that contains the electrical circuitry and magnetic reed contacts, a cover plate to protect the internal electronics and an actuating lever with an Alnico V magnet installed in a cradle in the lever. When the lever is
fully closed, the magnet — in proximity to the reed — triggers the circuit. The alarm occurs when the actuating lever is moved 20° to 45° past the fully closed position
(approximately 1" from the fully closed position). On the latching models, an LED on the unit flashes and latches when the lever is opened. It can be reset only at the alarm panel.

The actuating lever, housing and cover plate are made of ABS fire-retardant plastic. Dimensions of the unit are 4.50 cm W x 7.37 cm L x 1.93 cm H. The unit has 12 feet of jacket lead. The device mounts to the surface with two No. 6 combo-head screws, 5/8" and 1 1/4". Available in white

Specs

• Model 3040, 3050, 3055
• Nominal Voltage: 12 V DC @ 6 mA Current . Max 8 mA
• Operational Voltage:  7 V DC to 15 V DC
• Temperature Range: 0° to 110°F (-17.8°C to 43.3°C)
• Dimensions: 1.77" W x 2.90" L x 0.76" H (4.50 cm W x 7.37 cm L x 1.93 cm H)
• Weight: 1.5 oz.
• Housing Material: ABS plastic Form C: 3040 only
• Voltage: 30 V DC max.
• Current:. 0.25 A max.
• Power:  3 W max.
