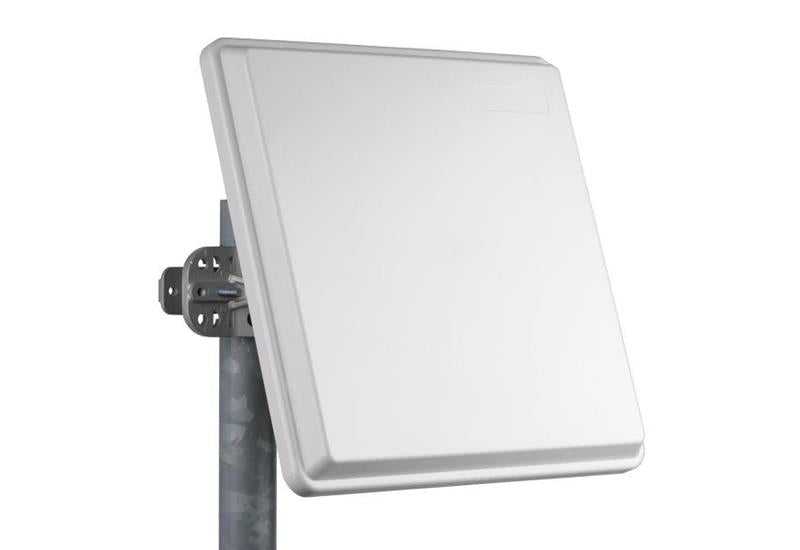

25dBi 4.9-5.875GHz MARS Dual Polarised Enclosure Antenna

25dBi 4.9-5.875GHz MARS Dual Polarised Enclosure Antenna

ANT-105

$295.00 NZD
$295.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
MARS 5GHz MA-WA56-DP25SMELZ Dual Polarised Enclosure Antenna
This MARs MA-WA56-DP25SMELZ enables WISPs and Integrators to design a low cost, weatherized backhaul or subscriber unit, saving high costs of special antenna-radio integration. Great for MikroTik and Ubiquiti high speed 802.11n wirelsss point to point solutions. They can also fit the Ubiquiti Rocket M5 inside the back for a robust 802.11n point to point solution.
Features
  • Waterproof 5 GHz Dual Polarized Antenna for L11UG-5HaxD
  • Weatherproof Enclosure (26 x 26 cm) with provisions for Az/El Mounting device
  • Azimuth/Elevation
  • Adjustable Mount MNT-22
  • Efficient and stable performance
  • Highest range of ETSI Standards - TS3, TS4, TS5
  • UV protected radome allowing for harsh weather installations
  • Easy mounting allowing for Az/El adjustment
  • Carrier class construction
  • Expected 10 year working life span
  • Includes heavy duty mount MNT-22 for poles up to 2.5” (63.5mm)
Details
Manufacturer's Product Code MA-WA56-DP25SMELZ
Frequency Range 4.9-5.875 GHz
Gain 25dBi
Polarisation Vertical and Horizontal
Vertical Beamwidth 7deg
Horizontal Beamwidth 7deg
Connector Type 2x SMA Female
Dimensions 370 x 370 x 40 mm
Pole Mount Diameter 25-120mm
Details
Pole Mount Yes, MNT-22 Included
Warranty Standard 12 Month RTB
