Procet PoE Systems

24V DC 30 Watt Gigabit Passive Power over Ethernet Supply

24V DC 30 Watt Gigabit Passive Power over Ethernet Supply

PT-EN30G-24

$22.00 NZD
$22.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

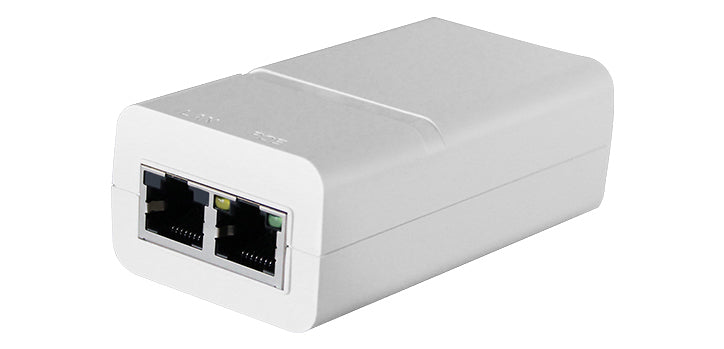

24V DC 30 Watt Gigabit Passive Power over Ethernet Supply
Procet 24V DC 30 Watt Gigabit Passive Power over Ethernet Supply. The EN30G-24 is an indoor rated PoE midspan Injector specially designed for complex backhaul and networking applications. It provides 24Vdc, 1.2A power for remote PDs over 2 pairs output. It supports both 10/100 Base-T and Gigabit device. It works for 28W PoE PDs, such as wireless APs, Wifi routers, Network cameras, IP Phones, Microwave Radio and other power Ethernet terminals. Enclosed in an IP40 fire retardant plastic case. It works with a wide input voltage of 100-240 VAC, 50 or 60 Hz. Compliant with Level VI Energy Efficiency requirement
Features
  • Output: 24Vdc 1200mA 30W
  • Transmission Rate: 10/100/1000Mbps
  • Power Pin:4/5(+),7/8(-)
Details
Manufacturer's Product Code PT-EN30G-24
Standards IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, RoHS Compliance, WEEE Compliance
Input 100-240Vac 1.0A 50/60Hz
Output 24Vdc 1200mA
Power Pins 4/5(+), 7/8(-)
Data Speed 10/100/1000Mbps
Operating Temperature 0 deg C to 40 deg C
Operating Humidity 20% to 80%, non-condensation
Storage Temperature -20 deg C to 70 deg C
Storage Humidity 10% to 90%, non-condensation
Operating Altitude up to 2000meters
AC Surge Protection Line-Earth 1.2/50us (8/20us): 2KV, Line-Line 1.2/50us (8/20us): 1KV
LED Indicator Power Indicator : Yellow, PoE Load Indicator : Green
Case Plastic
Color White
IP Rated IP40
Size 95.3mm X 51mm X 34.5mm
Weight 150g
Details
Power Cord NZ 3 Pin Clover Lead Included
