Brateck

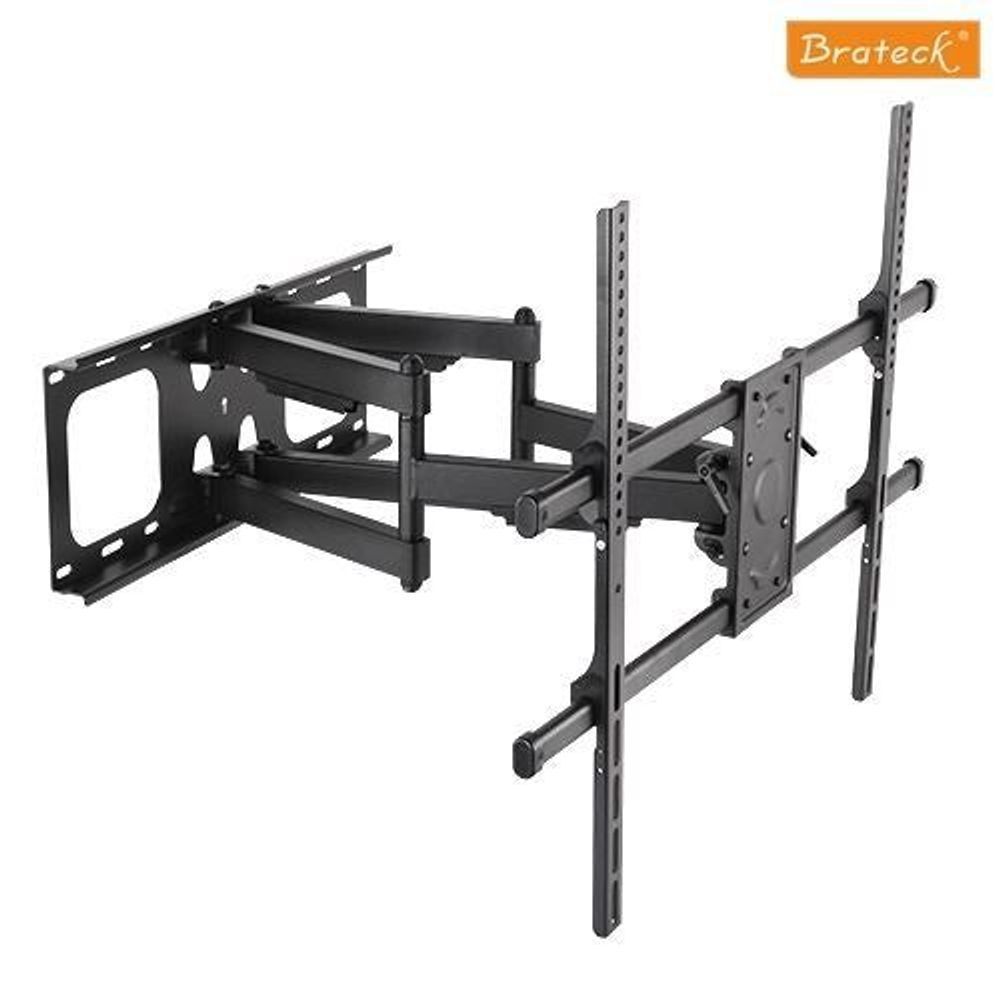

BRATECK 50"-90" Full-Motion Wall Mount Bracket. Max load: 75kg. VESA Support up to: 800x600

BRATECK 50"-90" Full-Motion Wall Mount Bracket. Max load: 75kg. VESA Support up to: 800x600

LPA49-686

$198.79 NZD
$304.40 NZD $198.79 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

BRATECK 50"-90" Full-Motion Wall Mount Bracket. Max load: 75kg. VESA Support up to: 800x600. Max Arm Extension - 635mm. Curved Display Compatible. Colour: Black

The new solid ultra-large full-motion mount is constructed with high gauge steel that is designed for most 50"- 90" flat-panel TVs up to 75kg. This mount allows you to have your flat panel TV tilted for glare control or optimum viewing angle, pulled out from the wall (635mm extension) and angled towards a separate viewing area. Quick-lock and release system keeps the TV in place with no tools required. The pre-assembled arm comes with integrated cable management and decorative covers to ensure an elegant and tidy look.



FEATURES:

  • Quick-lock and release system holds TV in place with no tools required
  • Profile: 69mm~635mm
  • Swivelling arm offers maximum viewing flexibility: +60°~-60°
  • Freely tilting at a desired viewing angle by using a swing-over lever: +5°~-15°
  • Built-in level adjustment ensures perfect positioning
  • Integrated cable management keeps cables neatly organised
  • VESA: 200x200; 400x200; 300x300; 400x400; 600x400; 800x400; 400x300; 300x200; 800x600

Product Name:

TV wall mount

By Rank:

Economy Series

By Function:

Full motion

By Mounting Pattern:

Universal

Material:

Steel

Thickness:

Panel 3mm, Brateck 2mm (Panel 0.10.079", Brateck 0.079")

Pipe Size:

40X25X1.5mm

Surface Finish:

Powder Coating

Available Color:

Black

Product Size With Open Position:

635X885X630mm

Fit Screen Size:

50"~90"

Installation:

Solid wall, Double Stud

Rated Load:

75kg

Strength tested:

2 times approved

Max.Hole Pattern:

816mmx610mm

VESA:

200x200; 400x200; 300x300; 400x400; 600x400; 800x400; 400x300; 300x200; 800x600

Tilt:

＋5°～-15°

Swivel:

+60°~-60°

Level Adjustment:

+3°~-3°

Rotating:

NO

Profile:

69mm~635mm

Bubble Level:

Yes

Anti-theft:

No

Cable Management:

Yes

Wall separated:

No

Panel separated:

Yes

AV Component Mount:

No

Freely Tilting:

No

Freely Height Adjustable:

No

Motorized:

No

Curved TV Available:

YES

Screw Kits Package:

Separate Bag+Ziplock Bag

User Manual :

Yes
