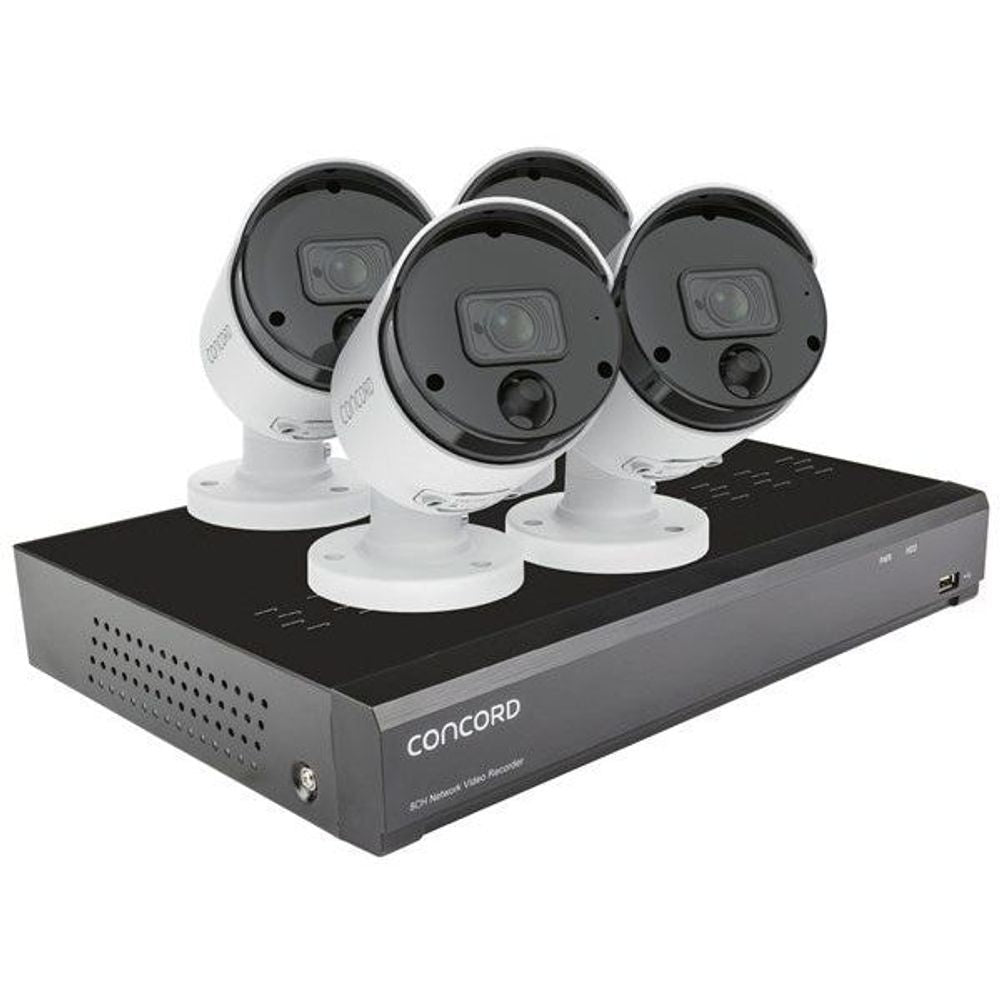

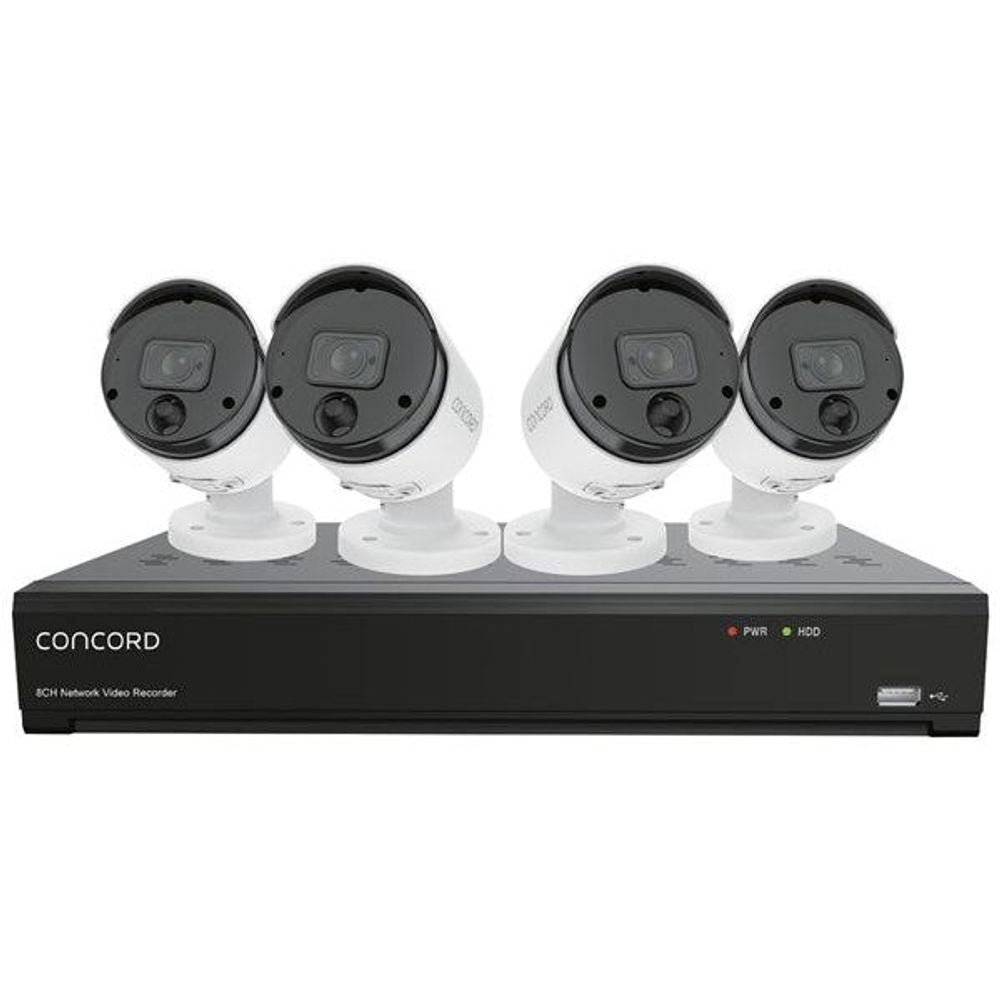

CNK8848P-V2 - Concord 8 Channel 4K NVR Kit with 4 x 4K Cameras

QV5706 This Network Video Recorder uses Ethernet cables to carry video audio and power to each IP camera. This saves you from messy wiring and multiple power supplies.The IP cameras can also be connected to your wired network allowing you to have cameras hundreds of metres away if you have a large property without affecting the image quality.The kit includes four weatherproof Ultra HD bullet cameras with built-in infrared LEDs for night vision up to 30m and Thermal Detect Technology to help prevent false triggers.The NVR includes a built-in 2TB HDD and supports FTP storage or Dropbox™ Cloud Storage to safeguard your data and push notifications to send alerts to your phone.The NVR features Intelligent Analysis to help search the video files more efficiently, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Vehicle Detection, Face Detection, and Cross Counting and Sound Detection.Watch live or playback video on your HDTV or LCD monitor via HDMI or VGA or login remotely via your Apple or Android compatible Smartphone or Tablet using the free app.Connecting your Smartphone is made easy using Peer-to-Peer (P2P) technology and scanning a QR code with the app.A USB mouse is included to navigate the on-screen menus, and there is a second USB 2.0 port that allows you to save recordings to a USB thumb drive for sharing or viewing on other devices, as well as uploading firmware updates.CONCORD CNK8848P-V2Features:• 4K Network Video Recorder• 4 x 4K Weatherproof Bullet Cameras (Expandable to 8 cameras)• 2TB Internal Storage• Audio Recording• Power-over-Ethernet• Intelligent Analysis• Facial Detection, Pedestrian Detection & Vehicle Detection• Smartphone Viewing & Notification





Specifications





Specifications

Equipment Type : Surveillance Package (DVR/NVR + Camera)

IP Rating : IP66 for Camera

Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust

Liquid/Moisture Ingress Protection : 6 - Powerful water jets

Included Capacity : 2TB

Maximum Capacity : 8TB

LAN Standard : 100BASE-T (10/100Mbps)

LAN Port Type : RJ45

Number of LAN Ports : 4 ports

Dimensions for : Recorder

Width : 300mm

Height : 53mm

Depth : 227mm

Voltage : 48V, 48V

PSU Powers : Main Product

Packaged Volume : 30.03l

Packaged Weight : 6.08kg

Packaged Length : 44.7cm

Packaged Width : 22.1cm

Packaged Height : 30.4cm

• : 8 Channel 4K NVR

• : 4 x 4K PIR Bullet Cameras

• : 4 x 20m RJ45 Cables

• : 48VDC @ 1.5A Power Supply

• : Mouse

USB Port Types : USB Type A

USB Interface Functions : MouseBackup

Number of USB ports : 2 ports

Type of Camera : Bullet

Output Signal : IP - Wired

Resolution : 4K UHD (3840 x 2160)

Video Output Connection : RJ45

Lens Angle : 91°

Thermal Detection PIR Sensor : true

Dimension for : Camera

Depth : 140mm

Diameter : 70mm

Apps to suit : Apple iOSAndroid

Availability : Stocked item
